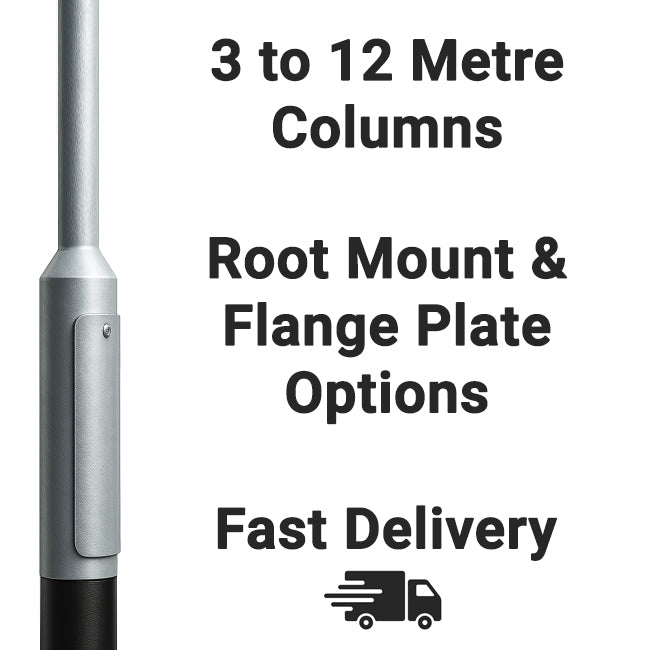

3 to 12 Metres Galvanized Lighting Column and Lamp Posts
3m to 12m Galvanized Lighting Columns and Lamp Posts
Our standard-duty galvanized steel lighting columns are available in 3m, 4m, 5m, 6m, 8m, 10m and 12m heights, with a choice of root-mounted or flange-plate installation.
The range is suitable for street lighting, commercial car parks, industrial yards, residential developments, access roads, sports facilities, general amenity areas and CCTV installations.
The columns can be used with compatible LED street lanterns, floodlights, post-top luminaires, CCTV cameras, wireless communication equipment and selected lightweight solar or wind-powered equipment, subject to the relevant head-load and windage requirements.
Each column is manufactured from structural steel tube and hot-dip galvanized to provide durable corrosion protection for long-term exterior use.
Available Options
• Heights from 3m to 12m
• Root-mounted or flange-plate installation
• Optional bitumen protection for the root section
• Suitable for lighting, CCTV and selected communication equipment
• Compatible brackets, luminaires and accessories available
• Technical drawings available for every column height
• Bespoke painted or powder-coated finishes available upon request
• Mid-hinged and base-hinged alternatives available upon request
Choosing the Correct Column Height
The most suitable column height will depend on the size of the area, proposed luminaire or equipment, required coverage, surrounding environment and available mounting positions.
3m and 4m columns are commonly used for pathways, smaller amenity areas, residential developments, compact car parks and lower-level CCTV installations.
5m and 6m columns provide increased coverage for commercial car parks, access roads, schools, leisure facilities, general exterior lighting and CCTV systems.
8m columns are suited to larger car parks, commercial yards, sports facilities and sites requiring increased coverage from fewer mounting positions.
10m and 12m columns are designed for larger industrial areas, storage and distribution yards, extensive car parks, sports grounds and high-level lighting or CCTV applications.
The proposed luminaire, bracket, camera or other equipment must remain within the permitted head-load and windage limits for the selected column.
Root-Mounted Lighting Column Specifications
Root-mounted columns are installed directly into a prepared excavation. The overall column length includes the stated above-ground height and the buried root section.
| Column Height | Overall Length | Shaft Diameter | Root Length | Root Diameter | Cable Slot | Door Aperture | Maximum Head Load* |
|---|---|---|---|---|---|---|---|
| 3m | 3.8m | 76mm | 800mm | 140mm | 150 × 75mm | 500 × 100mm | 50kg / 0.5m² |
| 4m | 4.8m | 76mm | 800mm | 140mm | 150 × 75mm | 500 × 100mm | 50kg / 0.5m² |
| 5m | 5.8m | 76mm | 800mm | 140mm | 150 × 75mm | 500 × 100mm | 50kg / 0.5m² |
| 6m | 7.0m | 76mm | 1,000mm | 140mm | 150 × 75mm | 500 × 100mm | 50kg / 0.5m² |
| 8m | 9.2m | 76mm top spigot 89mm main shaft |
1,200mm | 168mm | 150 × 75mm | 600 × 115mm | 50kg / 0.36m² |
| 10m | 11.5m | 101mm top spigot 114mm main shaft |
1,500mm | 168mm | 150 × 75mm | 600 × 115mm | 50kg / 0.5m² |
| 12m | 13.7m | 127mm top spigot 140mm main shaft |
1,700mm | 194mm | 150 × 75mm | 600 × 115mm | 70kg / 0.85m² |
*Maximum head-load figures shown are based on Terrain Category 2. Actual safe loading can vary according to the site location, column configuration, bracket, luminaire weight and projected windage area.
Flange-Plate Lighting Column Specifications
Flange-plate columns are surface-mounted to a suitable prepared foundation using the correct anchor-bolt arrangement. The dimensions below relate to the standard flange-plate options within this range.
| Column Height | Overall Length | Shaft Diameter | Flange Plate | Bolt Centres | Door Aperture | Maximum Head Load* |
|---|---|---|---|---|---|---|
| 3m | 3m | 76mm | 300 × 300mm | 200 × 200mm | 500 × 100mm | 50kg / 0.5m² |
| 4m | 4m | 76mm | 300 × 300mm | 200 × 200mm | 500 × 100mm | 50kg / 0.5m² |
| 5m | 5m | 76mm | 300 × 300mm | 200 × 200mm | 500 × 100mm | 50kg / 0.5m² |
| 6m | 6m | 76mm | 300 × 300mm | 200 × 200mm | 500 × 100mm | 50kg / 0.5m² |
| 8m | 8m | 76mm top spigot 89mm main shaft |
420 × 420mm | 300 × 300mm | 600 × 115mm | 50kg / 0.36m² |
| 10m | 10m | 101mm top spigot 114mm main shaft |
420 × 420mm | 300 × 300mm | 600 × 115mm | 50kg / 0.5m² |
| 12m | 12m | 127mm top spigot 140mm main shaft |
420 × 420mm | 300 × 300mm | 600 × 115mm | 70kg / 0.85m² |
*Maximum head-load figures shown are based on Terrain Category 2. The supporting foundation and anchor-bolt arrangement must be designed for the proposed column, equipment, wind loading, ground conditions and installation location.
Materials, Construction and Standards
These lighting columns are manufactured from structural steel tube and finished using a hot-dip galvanized process to provide durable corrosion protection for long-term exterior use.
The range is manufactured in accordance with the applicable requirements of:
• BS EN 40 – Lighting columns
• PD 6547 – Guidance on the use of BS EN 40
• BS EN ISO 1461 – Hot-dip galvanized coatings on fabricated iron and steel articles
Each column includes an access door and internal earthing provision for the installation and maintenance of suitable electrical equipment.
The proposed column, bracket and mounted equipment should always be assessed together. Luminaire weight, bracket weight, projected windage area, mounting height and site exposure must remain within the permitted loading limits for the selected column.

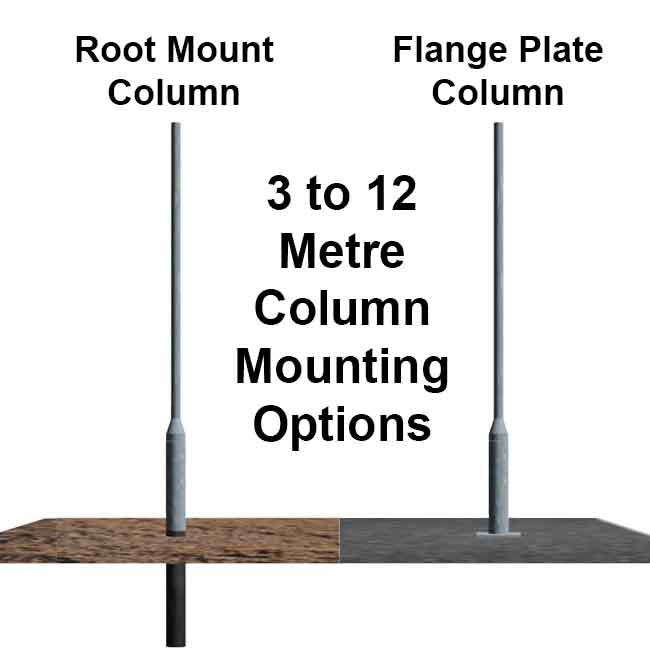

Root-Mounted or Flange-Plate Installation
Root-mounted columns are installed directly into a prepared excavation. The root section is positioned below ground level and surrounded by a suitable foundation material appropriate to the ground conditions and installation requirements.
Optional bitumen protection is available for the buried root section, providing an additional protective coating around the area exposed to soil and ground moisture.
Flange-plate columns are surface-mounted to a suitable prepared concrete foundation using the correct anchor-bolt arrangement. The foundation and fixings must be designed around the selected column height, head load, windage, ground conditions and geographical location.
Our TitanBase precast foundation block may provide a suitable installation option for selected 3m to 5m flange-plate columns with 200 × 200mm bolt centres. Suitability should be confirmed before ordering.
Technical Drawings and Downloads
Detailed technical drawings are available for every column height within the range.
• 3m Lighting Column Technical Drawing Rooted | Flange Plate
• 4m Lighting Column Technical Drawing Rooted | Flange Plate
• 5m Lighting Column Technical Drawing Rooted | Flange Plate
• 6m Lighting Column Technical Drawing Rooted | Flange Plate
• 8m Lighting Column Technical Drawing Rooted | Flange Plate
• 10m Lighting Column Technical Drawing Rooted | Flange Plate
• 12m Lighting Column Technical Drawing Rooted | Flange Plate
Please review the relevant drawing before ordering to confirm the dimensions, mounting arrangement, door aperture, cable entry and foundation requirements.
Individual Lighting Column Pages
For detailed information about a specific height, view our individual product pages:
• 3m Galvanized Lighting Column
• 4m Galvanized Lighting Column
• 5m Galvanized Lighting Column
• 6m Galvanized Lighting Column
• 8m Galvanized Lighting Column
• 10m Galvanized Lighting Column
• 12m Galvanized Lighting Column
Each page includes height-specific dimensions, mounting options, technical information and downloadable drawings.
Complete Your Lighting or CCTV Installation
Wydels can supply the additional equipment required to create a complete exterior lighting or security installation, including:
• Street-lighting and floodlight column brackets
• LED street lanterns and exterior floodlights
• Fuse cutouts, column keys and replacement column doors
• Complete lighting-column packages
• CCTV brackets, cameras and tower packages
• TitanBase precast foundation blocks
Please confirm the combined weight and windage of all mounted equipment before installation.
Free Professional Lighting Design
Wydels offers a free professional lighting-design service for commercial exterior lighting projects.
Send us your site drawing, dimensions or site postcode and our team can prepare a lighting layout, performance calculations and detailed supply quotation.
Our design service can help determine suitable column heights, luminaires, optics, quantities and mounting positions for car parks, commercial yards, sports facilities, access roads and other external areas.
Call Wydels on 01536 264064 or email enquiries@wydels.co.uk.
Frequently Asked Questions
Which lighting column height should I choose?
The appropriate height depends on the size and use of the area, proposed luminaire, target lighting level and available column positions. Lower columns are generally suited to pathways and smaller areas, while taller columns provide wider coverage for car parks, yards and sports facilities.
What is the difference between root-mounted and flange-plate columns?
Root-mounted columns are installed directly into a prepared excavation. Flange-plate columns are bolted to a suitable concrete foundation using the correct anchor-bolt arrangement.
Should I add bitumen protection?
Bitumen protection provides an additional protective coating around the buried root section. It is commonly selected where additional protection from soil and ground moisture is required.
Can floodlights or CCTV cameras be fitted to these columns?
Yes, provided the combined equipment weight and projected windage remain within the permitted limits for the selected column.
Do the columns include mounting brackets?
Brackets, luminaires and CCTV equipment are normally selected separately. Wydels supplies compatible brackets, accessories and complete lighting or CCTV packages.
Can you advise on column foundations?
Wydels can provide general product and foundation information. The final foundation design should account for the column height, mounted equipment, wind exposure, ground conditions and installation location.
Are other column finishes available?
Selected columns are available in a black finish. Bespoke painted or powder-coated RAL colours may also be available for project-specific requirements.
Do you provide lighting designs?
Yes. Wydels provides a free professional lighting-design service, including lighting calculations, equipment recommendations and a detailed supply quotation.
