6 Metre Galvanized Lighting Column Lamp Post in either Root Mount or Flange Plate
This is 6 Meter standard duty lighting column suitable for a wide variety of applications such as roads, car parks, residential and general amenity areas. For use with street lanterns, floodlights or post top amenity luminaires. It is also suitable for use for other applications such as a CCTV pole, as a Wi-Fi mast and for small solar wind applications.

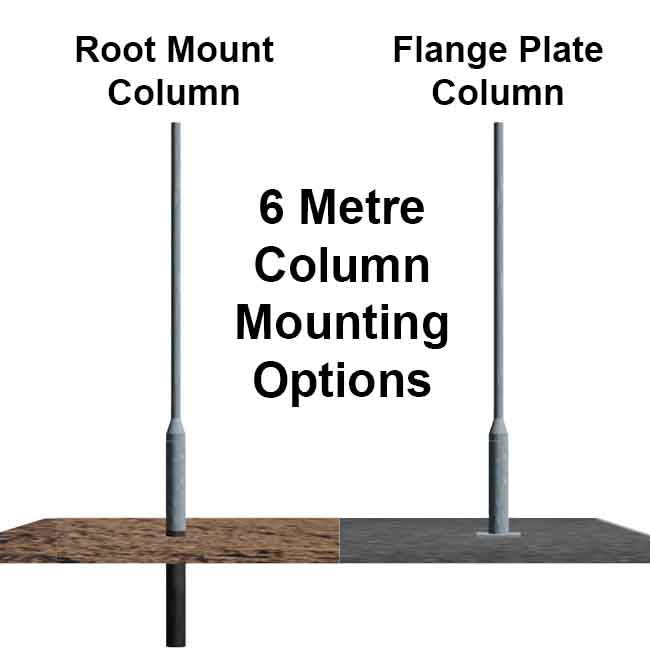

This 6 Meter column is available in a number of different options. These include Rooted or Flange Plate and with Bitumen paint applied or not. Other options such as Mid Hinged Columns and Base Hinged columns as well as finishes such as black paint or painted to a specific RAL code are also available upon request.
Root Mounted Column:
• 6 Meter Column • Column Diameter: 76mm • Root Length: 1000mm • Root Diameter: 140mm • Cable Slot in Root: 150mm x 75mm • Door Aperture: 500mm x 100mm

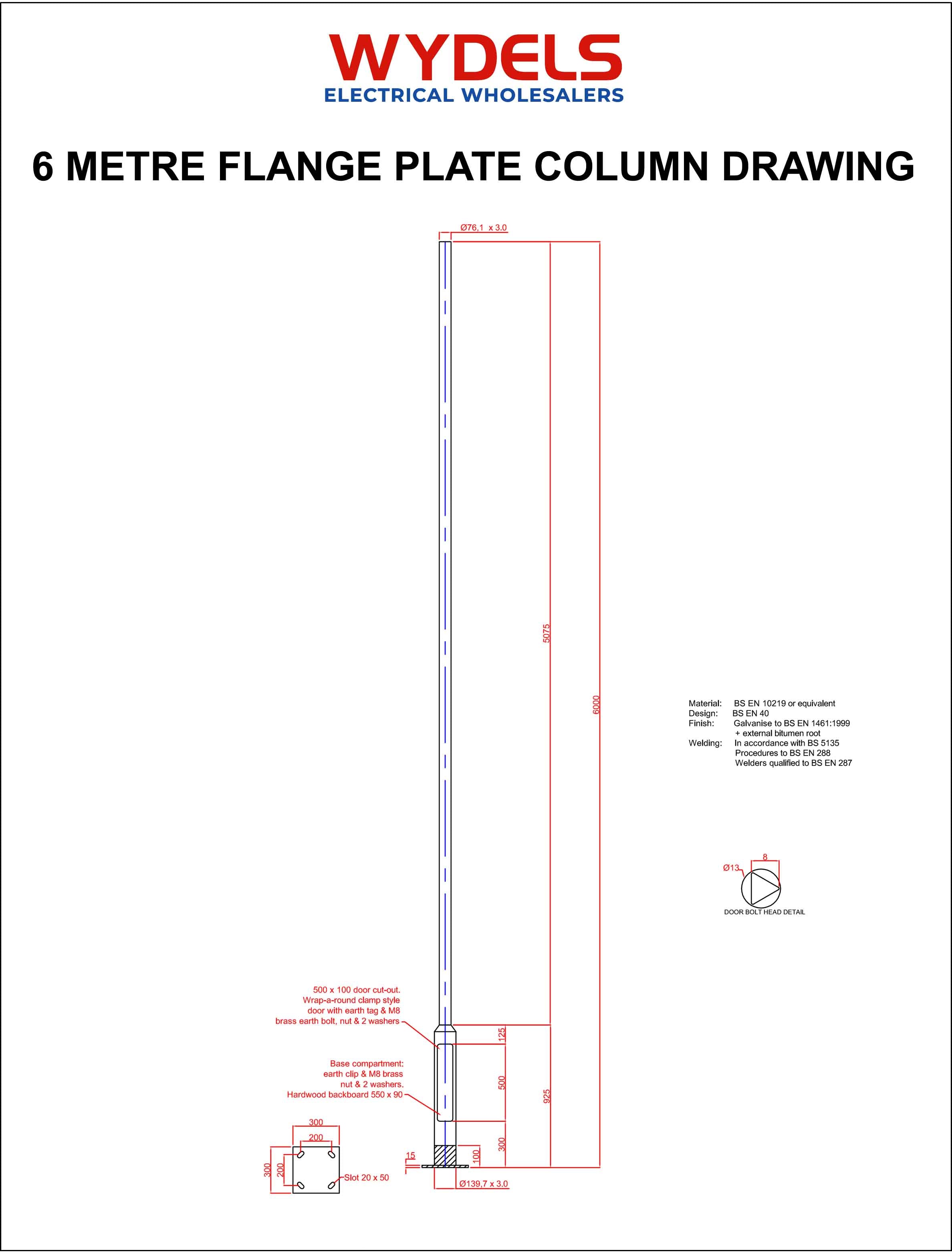

Flange Plate Column:
• 6 Meter Column • Column Diameter: 76mm • Door Aperture: 500mm x 100mm • Flange Plate Hole Centres: 200mm x 200mm
• Maximum head load ( Kg/m2 ) = 50 /0.5 for terrain category 3 • Manufactured in steel tube to EN10210 Lighting Column design to BSEN40, PD6547 : 2004 +A1:2009 • Hot dipped galvanized to BS EN ISO 1461:2009
Please Note: Columns painted to a specific RAL code, Mid Hinged Columns and Base Hinged Columns are all available upon request. Just contact our Sales Team for more information
