TitanBase™ Ducted Precast Foundation Block for Lighting Columns
TitanBase™ Ducted Precast Foundation Block for Lighting Columns
750kg Heavy-Duty Precast Concrete Base Unit | Integrated Cable Ducting | Above & Below Ground Installation
The TitanBase™ Ducted Precast Foundation Block is a purpose-designed concrete foundation solution for lighting columns, helping to reduce on-site groundwork, simplify cable management and provide a robust, repeatable base system for commercial lighting and CCTV projects.
Manufactured from a CEM I C40/50 concrete mix and weighing approximately 750kg, the TitanBase™ has been developed for use with flange-plated lighting columns from 3 metres to 5 metres in height, using M16 fixing centres at 200mm x 200mm. Each unit includes integrated cable ducting points, forklift pockets, lifting points and supplied fixing accessories, creating a complete and practical foundation solution for lighting column installations.
Suitable for above-ground or below-ground installation, the TitanBase™ is ideal for external lighting applications such as car parks, commercial yards, access roads, industrial estates, temporary or semi-permanent site lighting, security lighting, CCTV column installations, pedestrian areas and general lighting column projects.
Unlike a standard concrete kentledge block, the TitanBase™ has been designed specifically around lighting column installation. The integrated ducting points allow electrical cabling to be routed into the base and up through the column, helping installers achieve a cleaner and more professional installation while reducing the need for additional ducting alterations on site.
Key Features & Benefits
✅ Purpose-Designed for Lighting Columns
The TitanBase™ has been developed specifically for lighting column installations, providing a dedicated precast foundation solution for flange-plated lighting columns rather than relying on a generic concrete block or a fully cast-in-situ foundation.
✅ Suitable for 3m to 5m Flange-Plated Columns
Designed to support flange plate lighting columns from 3 metres to 5 metres in height, using M16 fixings on 200mm x 200mm fixing centres. This makes the TitanBase™ compatible with a wide range of standard flange plate column types used for external lighting, floodlighting and CCTV applications.
✅ Integrated Cable Ducting Points
Each base unit includes 4 No. 60mm diameter ducting points on each side of the block, plus 1 No. 95mm diameter top ducting point for cable entry into the lighting column. This allows incoming supply cables to be routed cleanly into the block and up through the column. Each ducting point is supplied capped when delivered.
✅ Above or Below Ground Installation
The TitanBase™ can be installed above ground where a surface-mounted base is required, or below ground where a more discreet installation is preferred. This flexibility makes it suitable for a wide range of commercial and infrastructure lighting projects.
✅ Reduced On-Site Groundworks
Using a precast foundation block can significantly reduce the need for wet concrete works on site. This helps minimise curing time, disruption, weather delays and the need for repeat visits compared with traditional poured concrete foundations.
✅ CEM I C40/50 Concrete Mix
Manufactured using a CEM I C40/50 concrete mix, the TitanBase™ is designed for long-term outdoor use and heavy-duty lighting column applications.
✅ High-Strength M16 Fixing Threads
The integrated M16 threaded fixing points are manufactured from high tensile steel, 10.8 strength, with a BZP finish. Each unit is supplied with M16 flat plate washers, nuts and nut caps for securing the lighting column to the base.
✅ Forklift Pockets & Lifting Points
Each TitanBase™ includes 2 No. forklift pocket slots for movement with suitable plant, along with 2 No. M20 lifting points on the top of the block to assist with lifting and positioning on site.
✅ Long Intended Lifespan
The TitanBase™ has an intended lifespan of approximately 50 years, making it a strong choice for long-term lighting column installations.
✅ Ideal for Commercial Lighting Projects
Perfect for car parks, business parks, commercial yards, construction compounds, storage areas, access roads, private roads, industrial estates, security lighting and CCTV column installations.

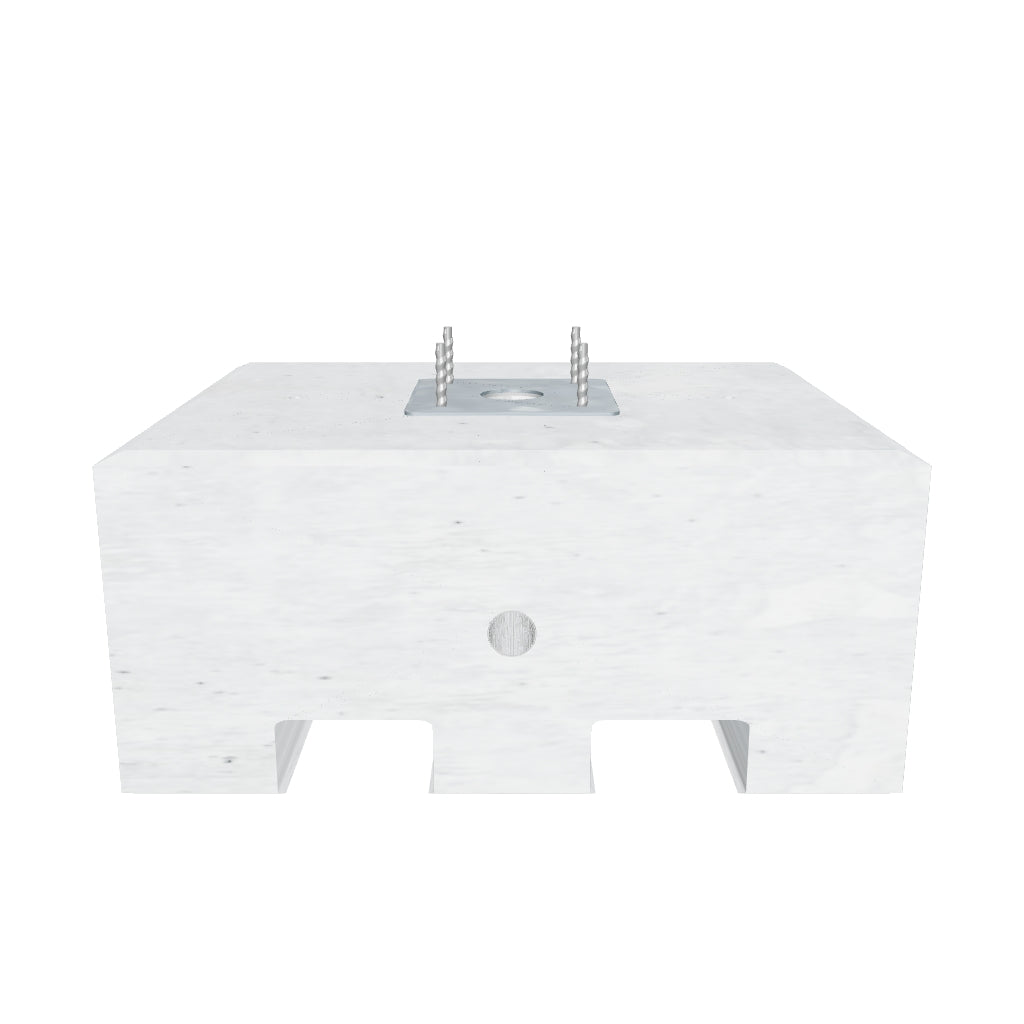

3D Product View
Designed to Save Installation Time
Traditional lighting column foundations usually require excavation, formwork, reinforcement, duct positioning, poured concrete and curing time before the column can be installed. This can add time, labour and uncertainty to a project, especially where multiple lighting columns are being installed across a site.
The TitanBase™ provides a more controlled alternative. As a precast foundation block, it arrives ready for positioning, helping contractors reduce the amount of wet works required on site. Once the block is installed and correctly positioned, the lighting column can be mounted using the supplied M16 fixing accessories and the appropriate installation method.
This can be particularly useful where:
• Site programmes are tight • Concrete curing time needs to be reduced • Groundworks need to be simplified • Multiple lighting columns are being installed • A repeatable foundation detail is required • Cable routes need to be kept clean and organised • Above-ground or semi-permanent installations are preferred

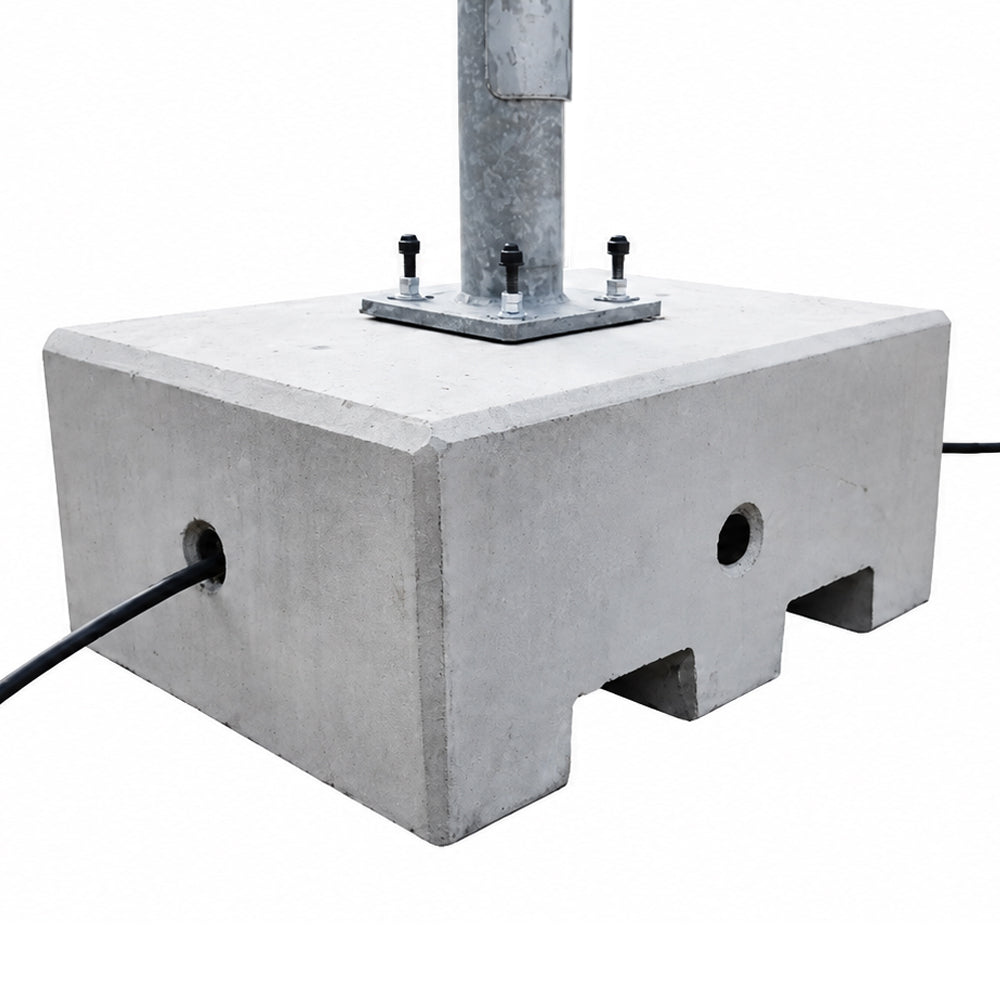

Integrated Ducting for Cleaner Cable Entry
One of the key advantages of the TitanBase™ is the inclusion of integrated ducting points on all sides of the block. Each unit includes 4 No. 60mm diameter ducting points on each side, allowing cabling to be brought into the base from multiple directions depending on the cable route and site layout.
A 95mm diameter top ducting point allows the cable route to continue from the base into the lighting column. This helps to avoid messy cable routes, exposed cabling or additional on-site modifications to the foundation block.
Each ducting point is supplied capped when delivered, helping to keep the unit clean and protected prior to installation.
The integrated ducting can be especially beneficial when used for:

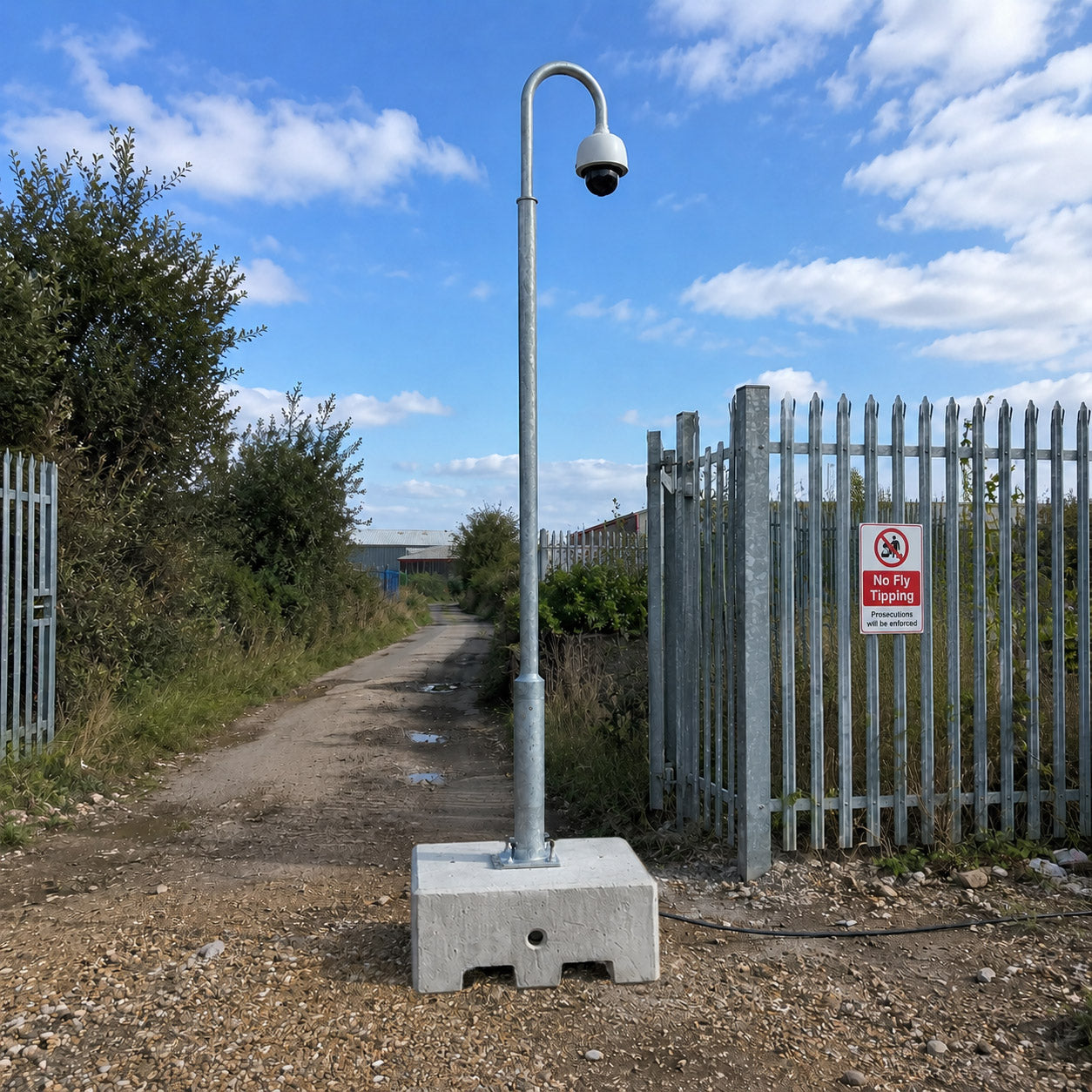

• Mains-powered LED Street lighting columns or LED Floodlight columns • CCTV column installations • Car park lighting columns • Yard lighting columns • Security lighting systems • Access road and private road lighting • Commercial and industrial estate lighting
Above Ground or Below Ground Installation
The TitanBase™ has been designed to offer flexibility depending on the project requirements.

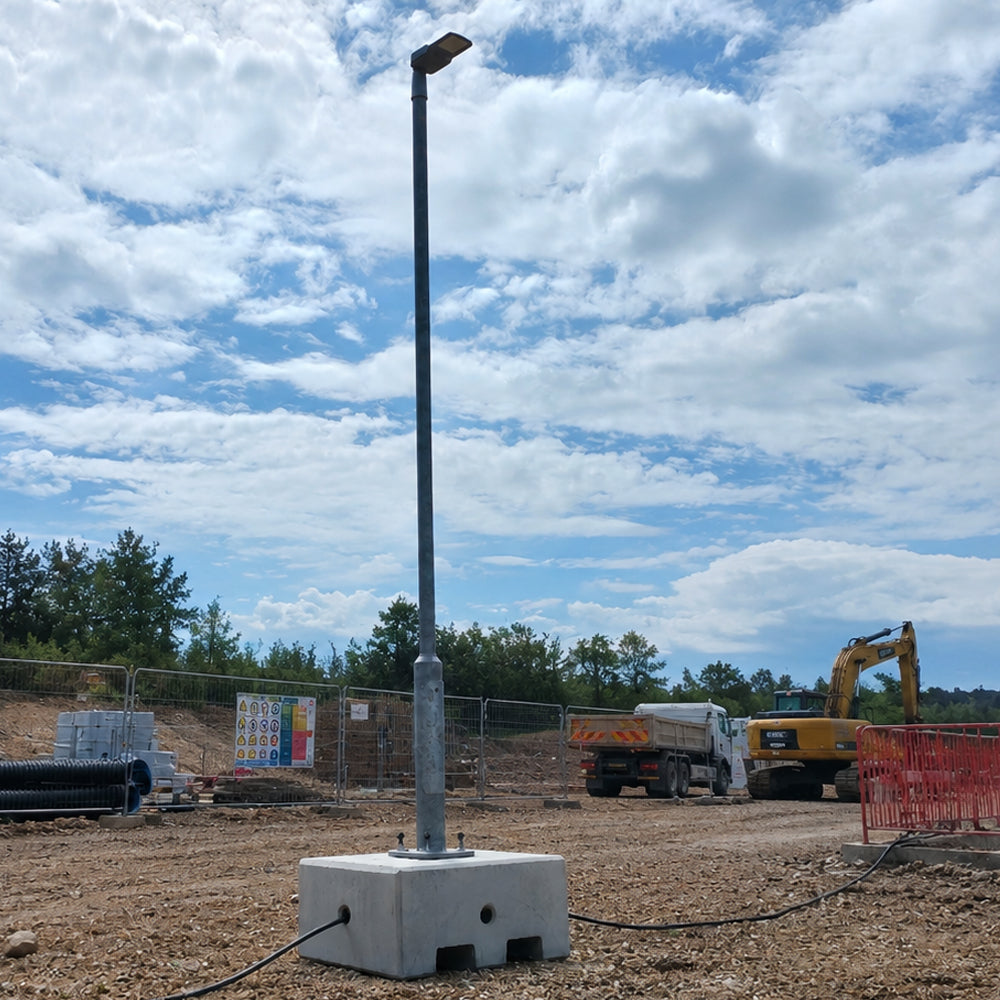

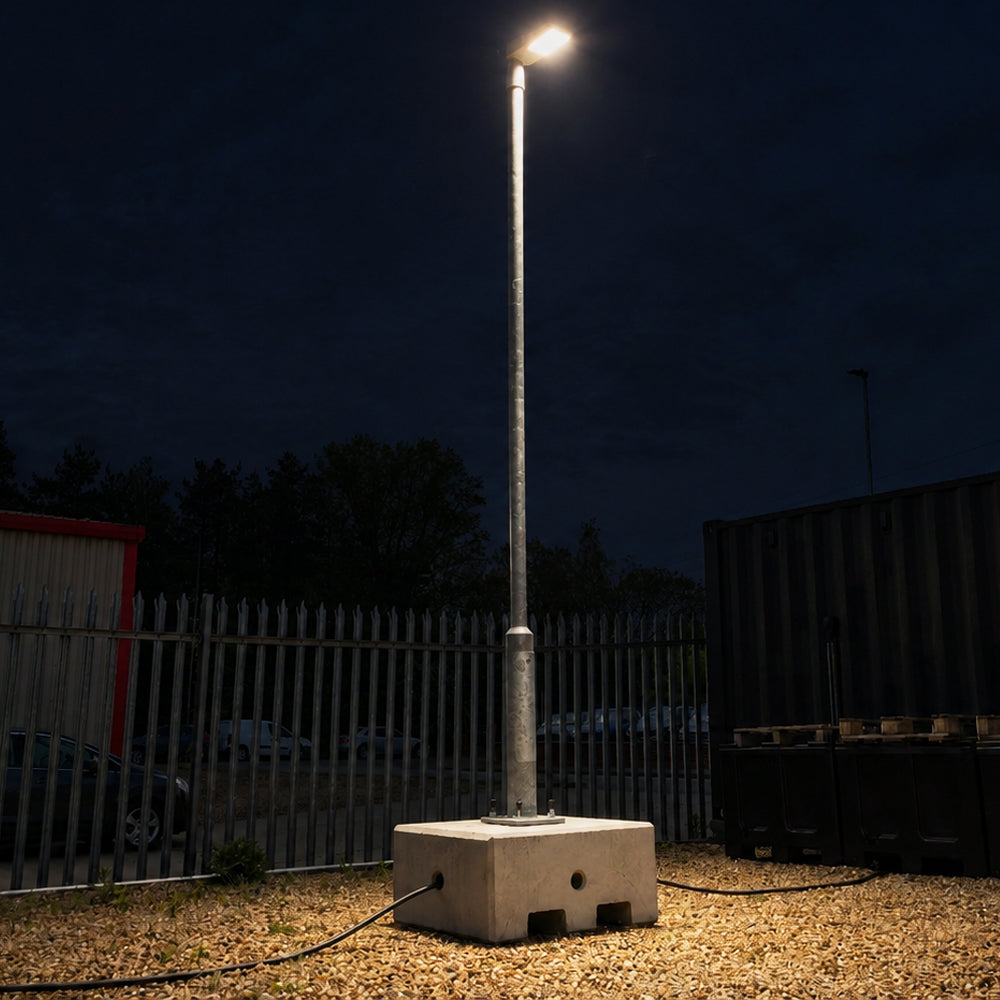

Above Ground Installation
For surface-level applications, the TitanBase™ can be positioned above ground to provide a stable base for a flange-plated lighting column. This can be useful for temporary, semi-permanent or project-based installations where excavation is not preferred or where future relocation may be required.
Above-ground installation may be suitable for:

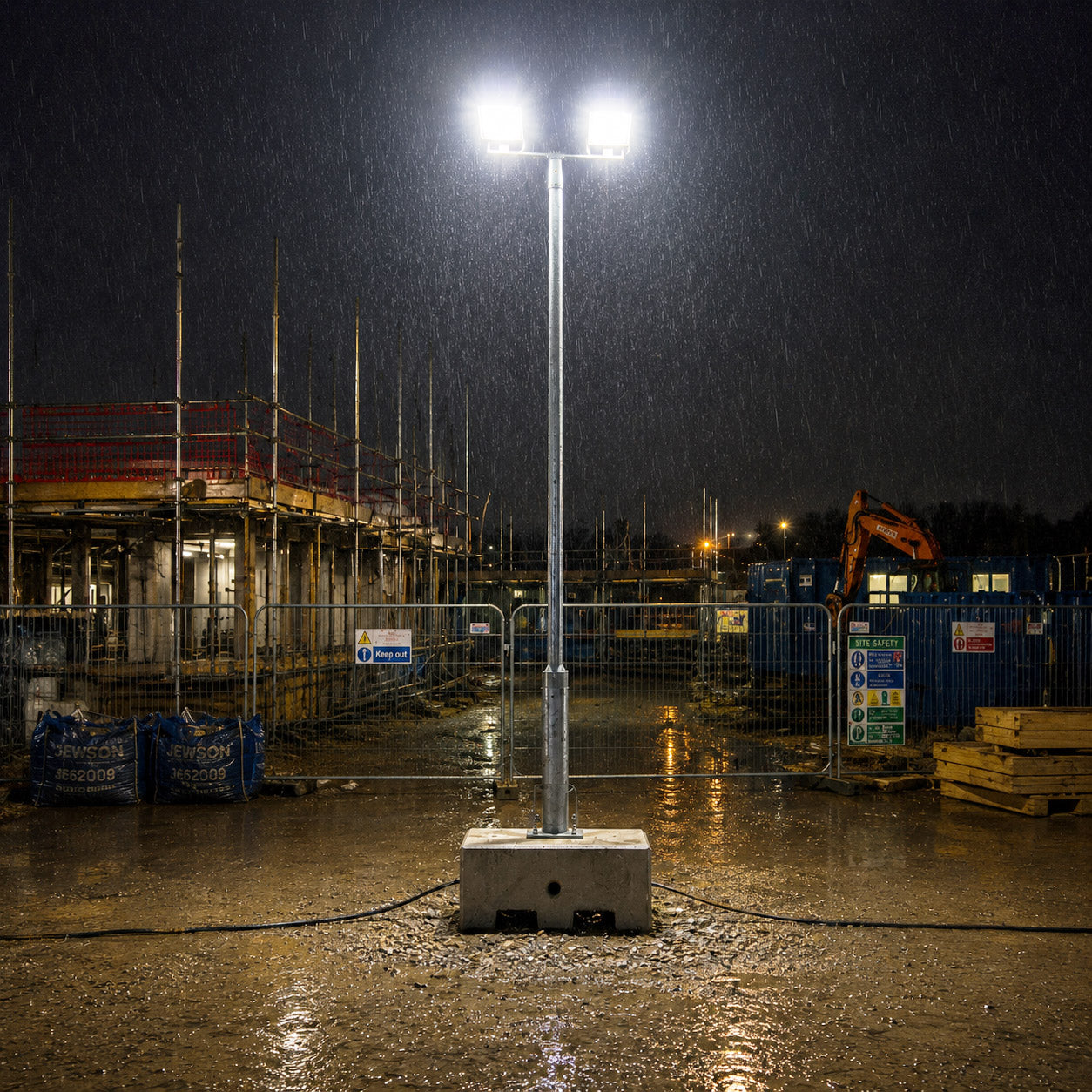

• Temporary lighting schemes • Construction sites • Storage yards • Compounds • Industrial estates • Events or short-term site setups • Areas where excavation is restricted
Below Ground Installation
For a more permanent and discreet installation, the TitanBase™ can be installed below ground, allowing the finished surface level to be reinstated around the foundation. This provides the benefits of a precast foundation while still achieving a cleaner finished appearance.
Below-ground installation may be suitable for:
• Permanent car park lighting • Commercial premises • Access roads • Public-facing areas • Business parks • Pedestrian routes • Private roads and estate lighting
Final installation method should always be assessed against the project requirements, soil conditions, column height, headload, wind exposure and any site-specific engineering requirements.
Complete Your Lighting Column System
The TitanBase™ can be supplied as part of a complete lighting column solution from Wydels.
Pair this foundation block with our flange-plated lighting columns, LED street lanterns, LED floodlights, galvanized column brackets, fuse cutouts, door keys and caps, and lighting design service to create a complete, project-ready lighting system.
Our useful product ranges:
• Lighting Columns & Lamp Posts
• Aluminium Mid-Hinged Eco Columns
• LED Street Lanterns & LED Floodlights
• Lighting Column Brackets
• Lighting Column Accessories
• Ready-Made Lighting Column Packages
• Lighting Design & Supply Services
Technical Specification
• Product Name: TitanBase™ Ducted Precast Foundation Block for Lighting Columns
• Product Type: Precast concrete foundation block
• Application: Flange-plated lighting column installation
• Installation Options: Above ground or below ground
• Concrete Mix: CEM I C40/50
• Approximate Weight: 750kg
• Dimensions: 1000mm x 800mm x 450mm
• Dimensional Tolerance: +/- 5mm
• Suitable Column Heights: 3m to 5m flange-plated lighting columns
• Column Compatibility: Supports flange plate column types with M16 fixings at 200mm x 200mm fixing centres
• Fixing Threads: M16 high tensile steel, 10.8 strength, BZP finish
• Supplied Fixings: M16 flat plate washers, nuts and nut caps
• Side Ducting Points: 4 No. 60mm diameter ducting points on each side of the block
• Top Ducting Point: 1 No. 95mm diameter ducting point for cable entry into the lighting column
• Ducting Protection: Each ducting point supplied capped when delivered
• Handling: 2 No. forklift pocket slots
• Lifting Points: 2 No. M20 lifting points on top of block
• Intended Lifespan: Approximately 50 years
• Suitable Applications: Street Lighting columns, Floodlight columns, CCTV columns and external lighting projects
• Delivery: UK delivery available. HIAB / offload requirements to be confirmed depending on site access and order quantity.
Structural Suitability & Project Considerations
The suitability of any lighting column foundation depends on several factors, including the lighting column height, flange plate size, headload, windage, luminaire or bracket arrangement, ground conditions, site exposure and installation method.
The TitanBase™ is designed for 3m to 5m flange-plated lighting columns with M16 fixings at 200mm x 200mm centres. However, final suitability should always be assessed against the specific project requirements before installation, especially where the installation includes larger luminaires, multiple floodlights, outreach brackets, CCTV equipment or exposed site conditions.
If required, we can commission a project-specific engineering report to assess the suitability of the precast base unit for the proposed installation. This can take into account the site location, installation method, column height and the equipment being mounted to the top of the column. This service is available at an additional cost.
Information typically required for project-specific suitability checks includes:
• Column height
• Flange plate dimensions and bolt centres
• Luminaire quantity and weight
• Bracket outreach and windage
• CCTV equipment, if applicable
• Site location and exposure category
• Above-ground or below-ground installation preference
• Ground conditions and surrounding surface finish
• Any project-specific requirements or planning constraints
Why Choose the TitanBase™?
✔️ Purpose-Built for Lighting Columns
Designed specifically around lighting column installation, rather than being a generic concrete block adapted for use.
✔️ Cleaner Cable Management
Integrated ducting points help route cabling directly through the base and into the column.
✔️ Faster, More Controlled Installation
A precast solution can help reduce wet concrete works, curing time and site disruption.
✔️ Suitable for 3m to 5m Columns
Designed for flange-plated lighting columns from 3 metres to 5 metres in height using M16 fixings at 200mm x 200mm fixing centres.
✔️ Flexible Installation Options
Suitable for above-ground or below-ground installation depending on the project requirement.
✔️ Heavy-Duty 750kg Construction
Manufactured from CEM I C40/50 concrete mix with an approximate total weight of 750kg.
✔️ Ideal for Commercial Projects
A strong choice for car parks, yards, compounds, industrial estates, access roads and security lighting installations.
✔️ Part of a Complete Wydels Lighting System
Can be supplied alongside columns, brackets, luminaires, accessories and lighting design support.
Installation Guidance
The TitanBase™ should be installed by a competent contractor using suitable plant, lifting equipment and ground preparation methods. The block must be positioned on a suitable prepared base, taking into account ground conditions, loadings, finished levels, cable routes and column orientation.
When installing the TitanBase™, contractors should ensure that:
• The base is correctly positioned and levelled
• Cable ducting routes are aligned before final positioning
• The column flange plate and M16 fixing arrangement are compatible
• The supplied M16 washers, nuts and nut caps are used as required
• The column is installed plumb and correctly orientated
• Any backfill, reinstatement or surface finish is completed to the project specification
• Structural suitability has been confirmed where required
Further installation details, drawings and project-specific guidance can be provided on request.
Delivery & Offloading
Due to the size and weight of the TitanBase™, delivery and offloading requirements should be confirmed before ordering. Each unit weighs approximately 750kg and includes 2 No. forklift pocket slots and 2 No. M20 lifting points to assist with movement and positioning.
For smaller orders of up to 6 units, delivery would typically be made with each TitanBase™ supplied on a Euro pallet, using a tail-lift delivery service where suitable. Customers should ensure there is suitable access for a pallet delivery and that the delivery point is suitable for heavy goods offload.
For larger orders, or where site access, order quantity or delivery requirements make pallet delivery unsuitable, a dedicated delivery service may be required. This can be discussed and quoted prior to order.
For bulk project orders, Wydels can also offer a delivery service where the TitanBase™ units are delivered to site and offloaded using a Moffett forklift, with the base units placed in one agreed location on site.
Where required, we can also offer an above-ground positioning service. This is where the concrete base units are delivered and then positioned around the site in their required locations. Please note this service is for above-ground installations only and would need to be reviewed and quoted based on site access, layout, order quantity and project requirements.
Please ensure that suitable site access and offloading arrangements are available before delivery. If you are unsure, contact our Sales Team before placing your order and we can advise on the most suitable delivery method.
Collection may be available by prior arrangement. Please contact us for more information.
Downloads & Technical Resources
• TitanBase™ Technical Drawing
• TitanBase™ Installation Guide
• TitanBase™ Datasheet
• Lighting Column Compatibility Guide
• Structural / Wind Loading Information, where available
• 3D Model / Interactive Product Viewer
Need Help Specifying the Right Lighting Column Base?
If you are working on a lighting project and need help confirming whether the TitanBase™ is suitable, our team can help.
Contact Wydels for advice on lighting columns, LED lanterns, floodlights, brackets, foundation options and lighting design support.
Call our Sales Team on 01536 264064 or email enquiries@wydels.co.uk to discuss your project requirements.
