3 to 6M Galvanized Lighting Column - Powder Coated RAL9005 - Root Mount
3 to 6 Metre Galvanized Lighting Column Lamp Post - Root Mounted - Powder Coated RAL9005
Introduction:
These are standard-duty lighting columns are suitable for a wide variety of applications such as roads, car parks, residential and general amenity areas. For use with street lanterns, floodlights or post top amenity luminaires. It is also suitable for use for other applications such as a CCTV pole, a Wi-Fi mast, and for small solar wind applications.
Column Specifications:
3 Metre Column
• Column Diameter: 76mm
• Root Length: 800mm
• Root Diameter: 140mm
• Cable Slot in Root: 150mm x 75mm
• Door Aperture: 500mm x 100mm
4 Metre Column
• Column Diameter: 76mm
• Root Length: 800mm
• Root Diameter: 140mm
• Cable Slot in Root: 150mm x 75mm
• Door Aperture: 500mm x 100mm

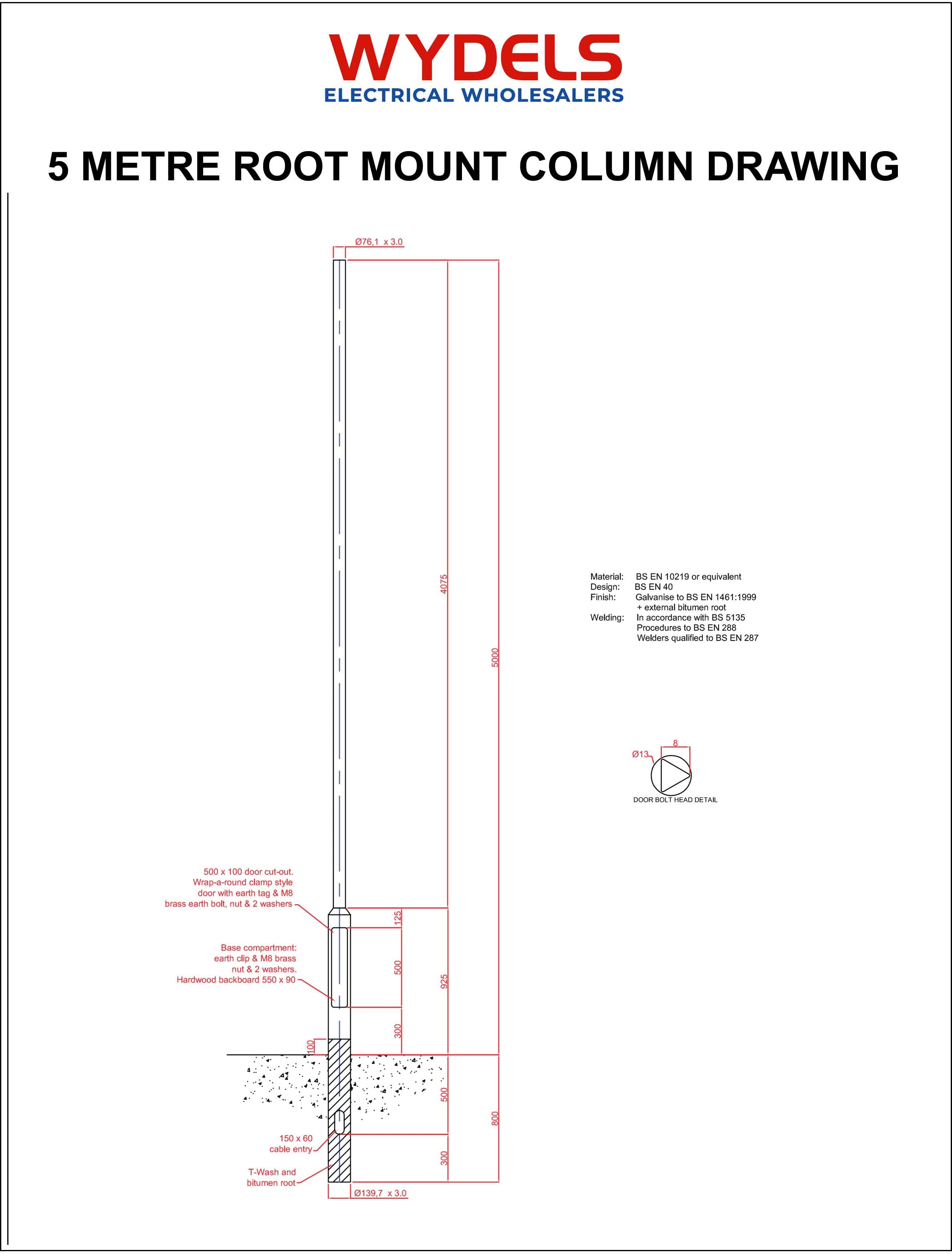

5 Metre Column
• Column Diameter: 76mm
• Root Length: 800mm
• Root Diameter: 140mm
• Cable Slot in Root: 150mm x 75mm
• Door Aperture: 500mm x 100mm

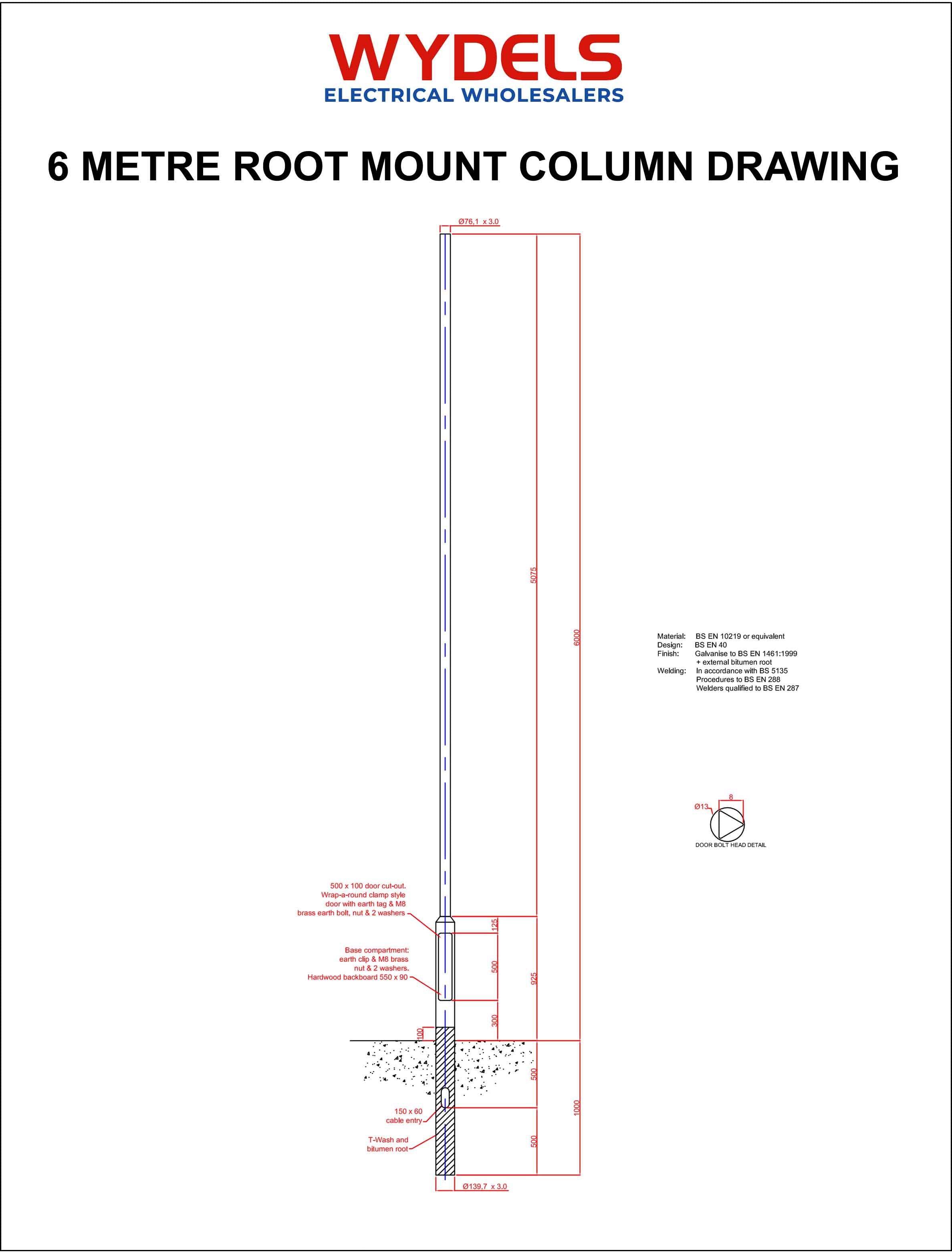

6 Metre Column
• Column Diameter: 76mm
• Root Length: 1000mm
• Root Diameter: 140mm
• Cable Slot in Root: 150mm x 75mm
• Door Aperture: 500mm x 100mm
Additional Specifications:
• Maximum head load ( Kg/m2 ) = 50 /0.5 for terrain category 3
• Manufactured in steel tube to EN10210 Lighting Column design to BSEN40, PD6547 : 2004 +A1:2009
• Hot dipped galvanized to BS EN ISO 1461:2009
Please Note: Columns painted or powder coated to a specific RAL code or colour, Mid Hinged Columns and Base Hinged Columns are all available upon request.
Just contact our Sales Team for more information on 01536 264064
Column Drawing Downloads:

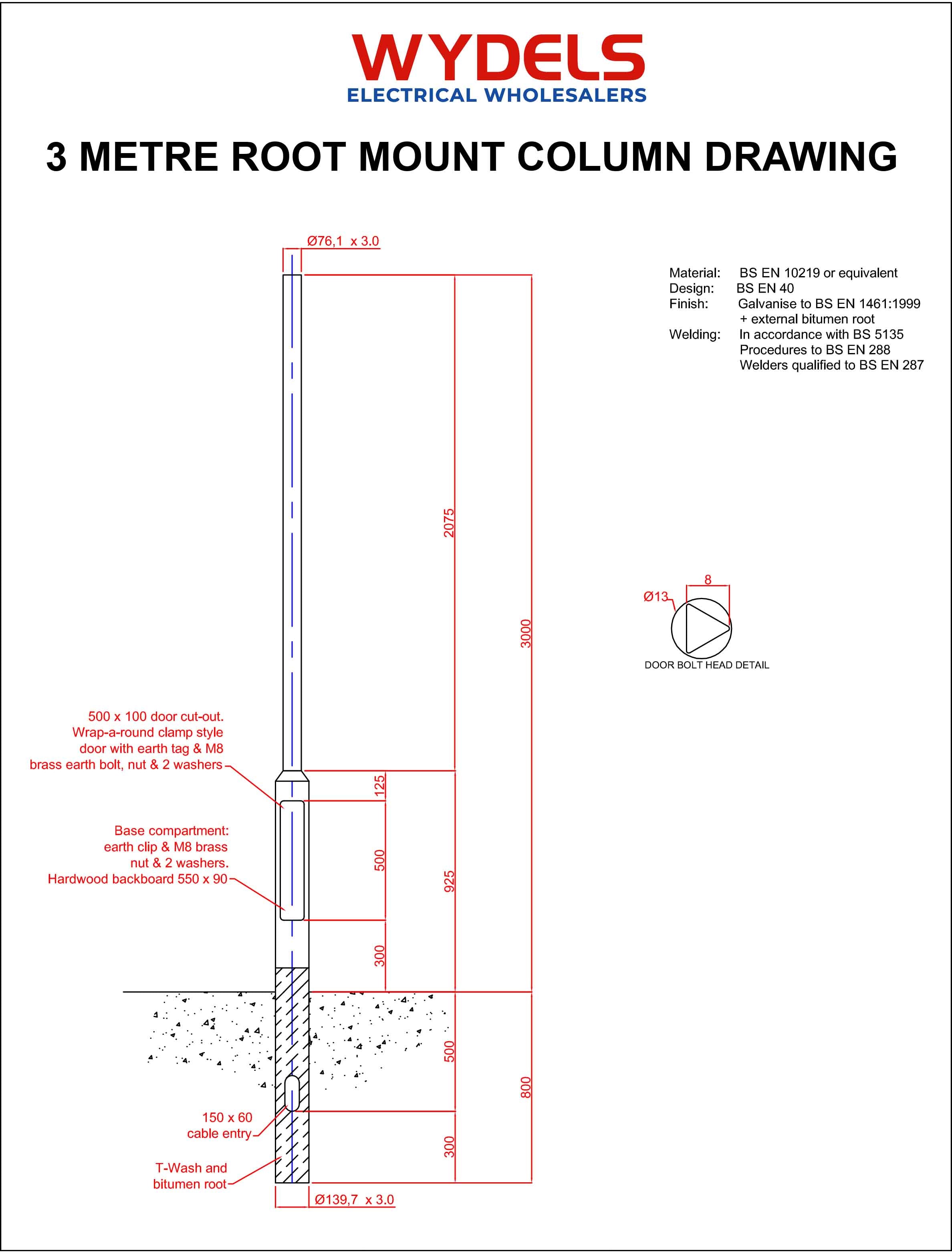

3 Metre Root Mount Column Drawing

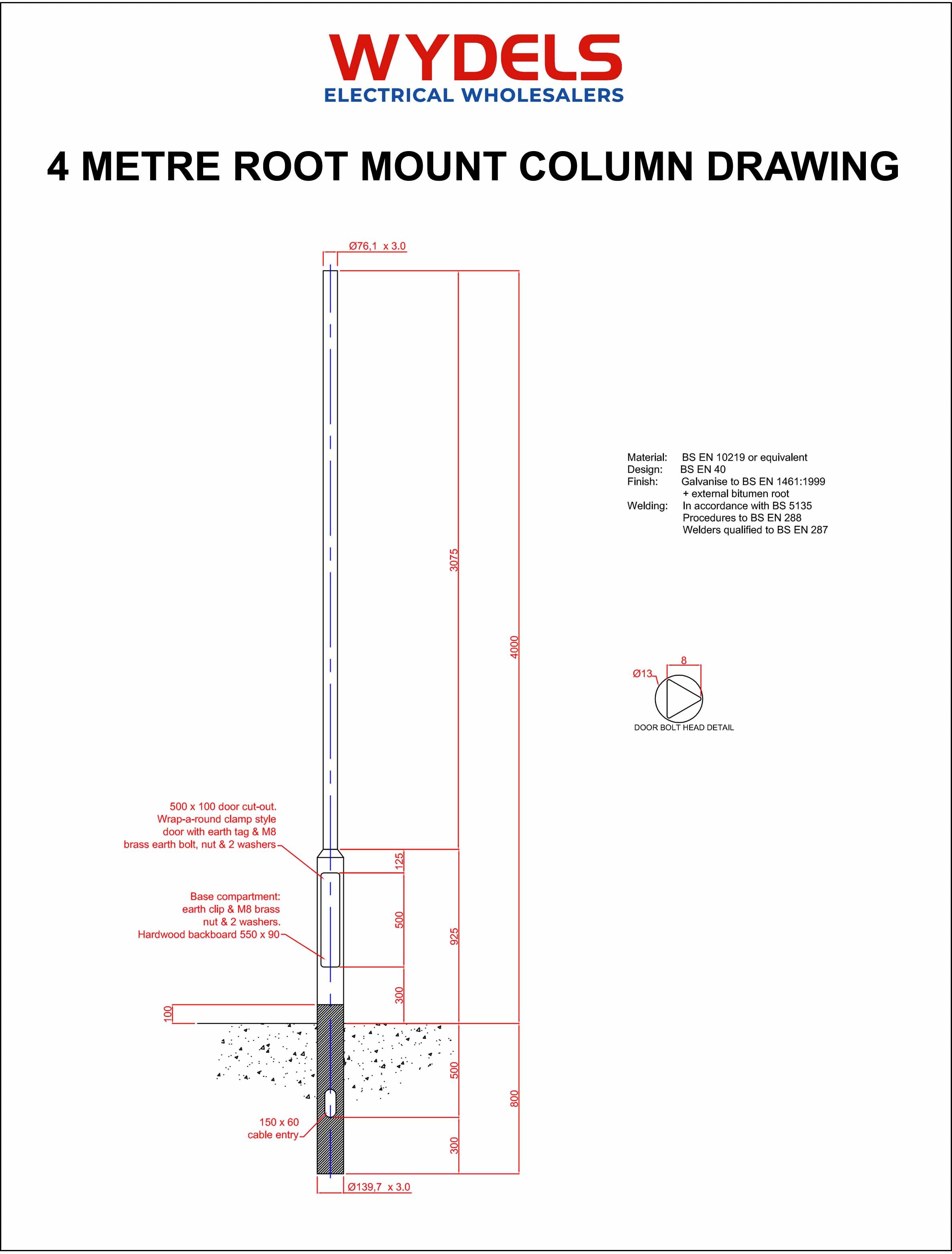

4 Metre Root Mount Column Drawing
