4 Metre Galvanized Lighting Column Lamp Post
4 Metre Galvanized Lighting Column Lamp Post in either Root Mount or Flange Plate Options
Durable, Versatile & Adaptable | Root Mount & Flange Plate Options
This 4 Metre Galvanized Lighting Column — also known as a Lamp Post or Lamp Pole — is ideal for street lighting, car parks, floodlight setups, CCTV systems, Wi-Fi masts, and renewable energy installations. Built to withstand harsh environments and fully compliant with UK standards, it delivers long-term performance for public infrastructure, commercial sites, or residential applications.

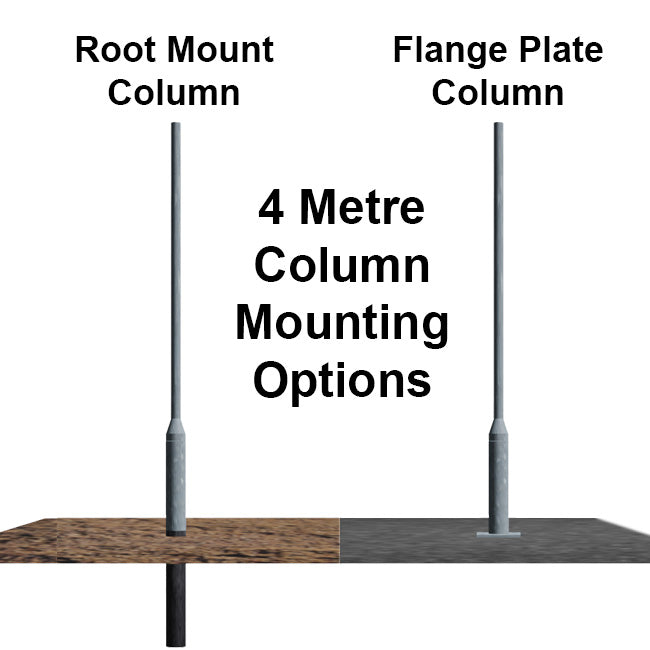

Flexible Mounting Options
✅ Choose between Root Mount (800mm root length) for direct burial stability or Flange Plate (300mm x 300mm base plate) for bolt-down installations. Both column types include a column access door for easy maintenance access and electrical wiring.
Complete Your Lighting System
✅ Pair this column with our Galvanized Column Brackets for secure LED Luminaire or CCTV mounting, or browse our range of Energy-Efficient LED Street Lanterns & LED Floodlights and Fuse Cutouts, Door Keys & Caps or take a look at our Ready-Made LED Street Lantern & LED Floodlight Column Packages to create a fully integrated, high-performance lighting solution.
Built to Last: Galvanized Finish & Load Capacity
✅ Hot-dipped galvanized to BS EN ISO 1461:2009 standards, this column resists corrosion, rust, and UV degradation, even in coastal or high-humidity settings. Engineered for 50 Kg/0.5m² load capacity (Terrain Category 2), it withstands harsh weather and heavy-duty use.
Customisation & Compliance
✅ Adapt the column to your project’s needs:
• Finishes
Standard Hot Dipped Galvanized. Black Powder Coated Columns available here or any RAL colour (upon request).
• Hinged Designs
Choose base-hinged or mid-hinged designs for safer maintenance access (contact for availability).
• Standards & Versatility
✅ Manufactured from EN10210 steel tubing and compliant with BS EN40, PD6547, and ISO 1461 standards.
✅ Ideal for CCTV poles, solar/wind applications, signage, or Wi-Fi masts.

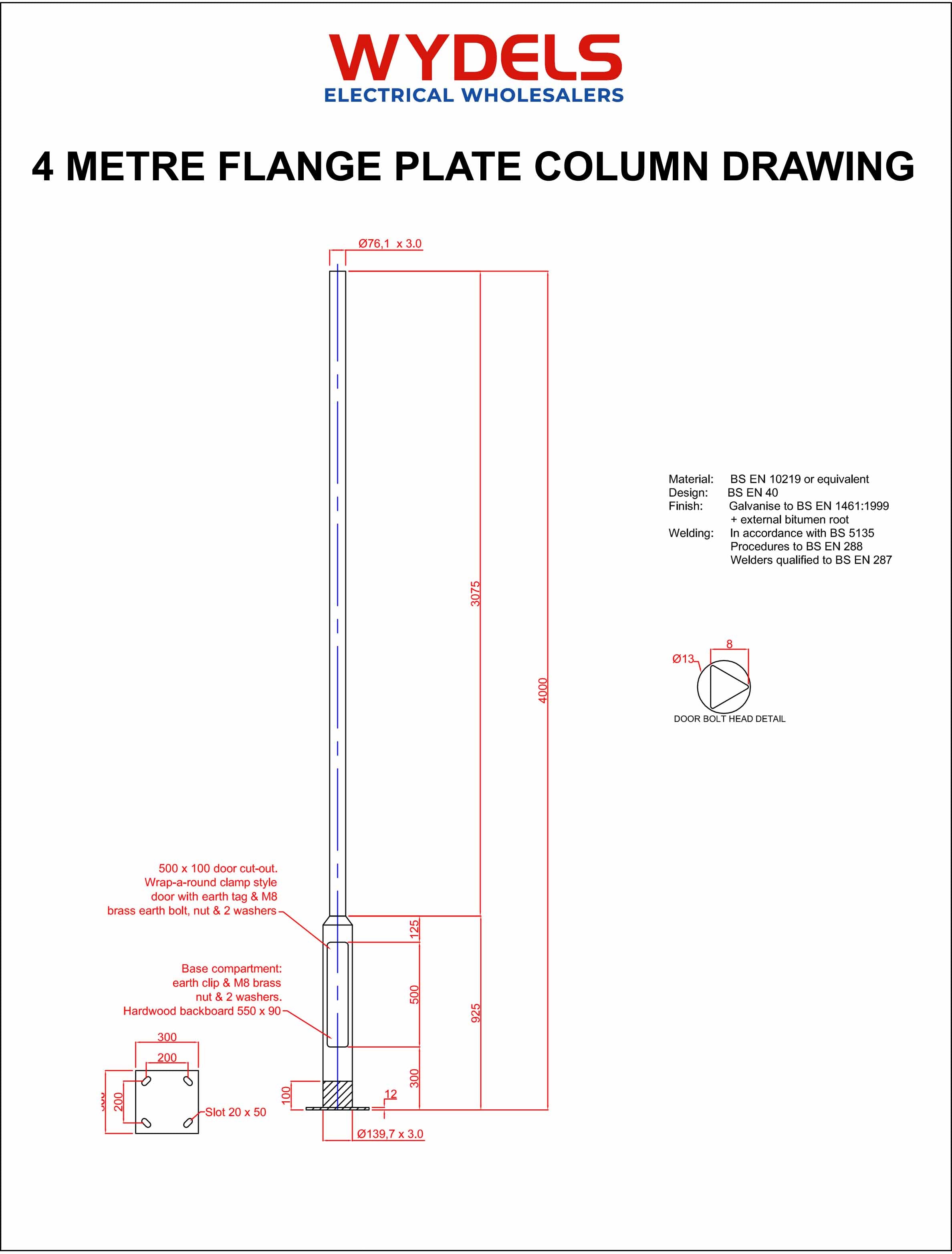

Technical Specifications
• Height: 4 Metres
• Diameter: 76mm main shaft | 140mm bottom section
• Root Mount: 800mm root length, 140mm diameter | 150mm x 75mm cable slot
• Flange Plate: 300mm x 300mm flange plate with 200mm x 200mm bolt centres
• Door Aperture: 500mm x 100mm (all models)
• Maximum Head Load: 50kg/0.5m2 for terrain category 2
• Standards: BS EN ISO 1461:2009, BS EN40, PD6547:2004 +A1:2009
Why Choose This Lighting Column?
✔️ Built to Outlast: The galvanized finish guarantees decades of low-maintenance service, reducing lifecycle costs.
✔️ Adaptable to Any Project: From urban streetscapes to rural solar farms, its adaptable design supports evolving needs.
✔️ Aesthetic Flexibility: Match surroundings with custom powder-coated & painted finishes or the standard sleek galvanized finish.
✔️ Simplified Compliance: Pre-certified to UK standards, accelerating approvals for public or private installations.
Customisation Options Available
Need a specific RAL colour, hinged design, or specialised finish? Contact our Sales Team at 01536 264064 or enquiries@wydels.co.uk to discuss our bespoke solutions.
Downloads & Installation Resources
