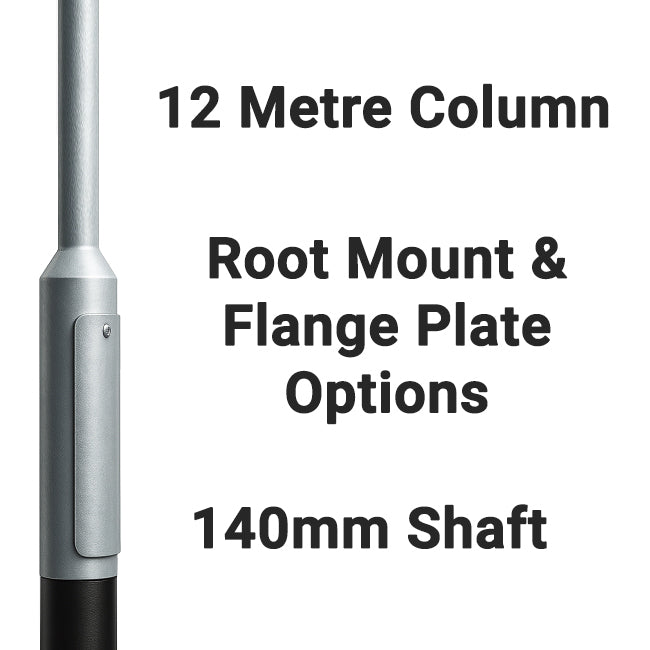

12 Metre Galvanized Lighting Column Lamp Post
12 Metre Galvanized Lighting Column Lamp Post in either Root Mount or Flange Plate Options
Introduction:
This 12 Metre standard duty lighting column is suitable for a wide variety of applications such as roads, car parks, residential and general amenity areas. For use with street lanterns, floodlights or post top amenity luminaires. It is also suitable for use for other applications such as a CCTV pole, a Wi-Fi mast, and for small solar wind applications.

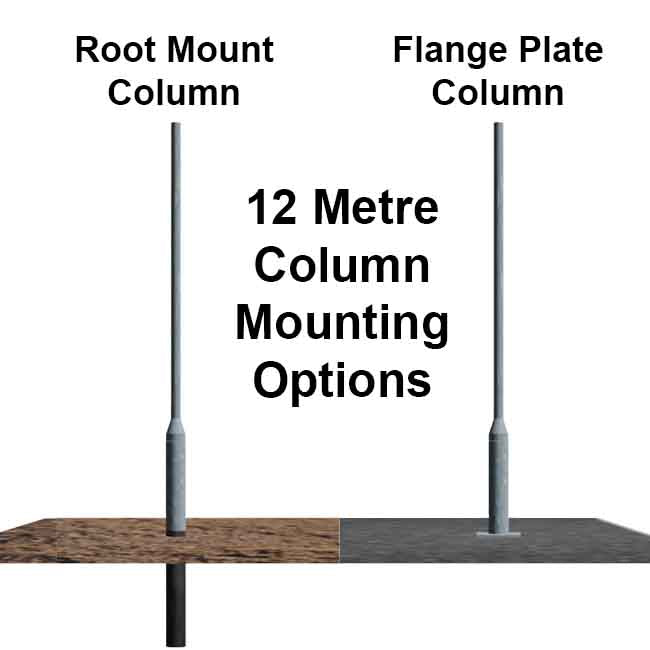

This 12 Metre column is available in a number of different options. These include Rooted or Flange Plate and with Bitumen paint applied or not. Other options such as Mid Hinged Columns and Base Hinged columns as well as finishes such as black paint or painted and powder coated to a specific RAL code are also available upon request.
Column Specifications:
Root Mounted Column:
• 12 Metre Column
• Column Diameter: 139.7mm
• Root Length: 1700mm
• Root Diameter: 193.7mm
• Cable Slot in Root: 150mm x 75mm
• Door Aperture: 600mm x 115mm
Flange Plate Column:
• 12 Metre Column
• Column Diameter: 139.7mm
• Door Aperture: 600mm x 115mm
• Flange Plate Hole Centres: 300mm x 300mm
Additional Specifications:
• Maximum head load ( Kg/m2 ) = 70 /0.85 for terrain category 2
• Manufactured in steel tube to EN10210 Lighting Column design to BSEN40, PD6547 : 2004 +A1:2009
• Hot dipped galvanized to BS EN ISO 1461:2009
Please Note: Columns painted or powder coated to a specific RAL code or colour, Mid Hinged Columns and Base Hinged Columns are all available upon request.
Just contact our Sales Team for more information on 01536 264064

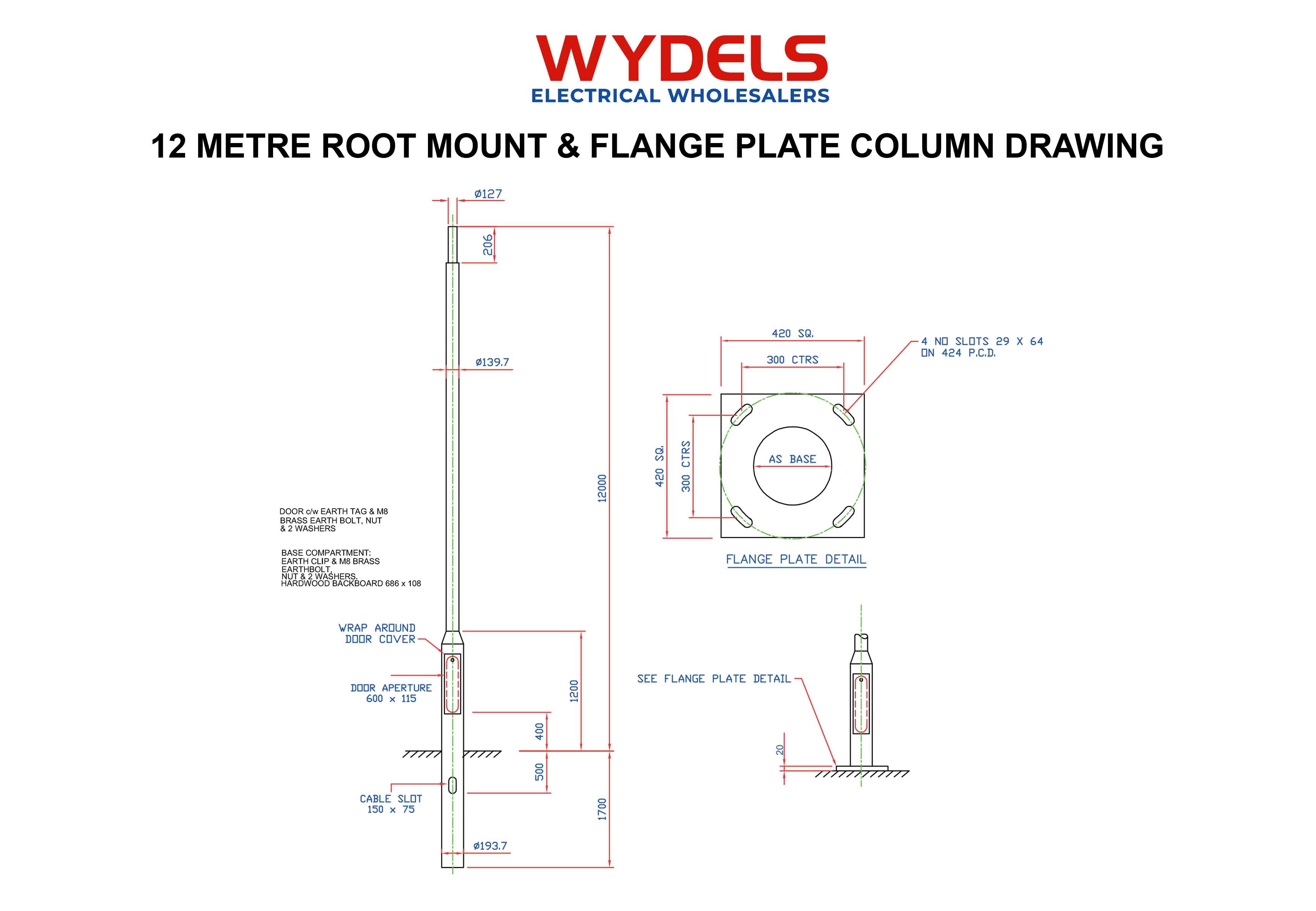

Column Drawing Downloads:
