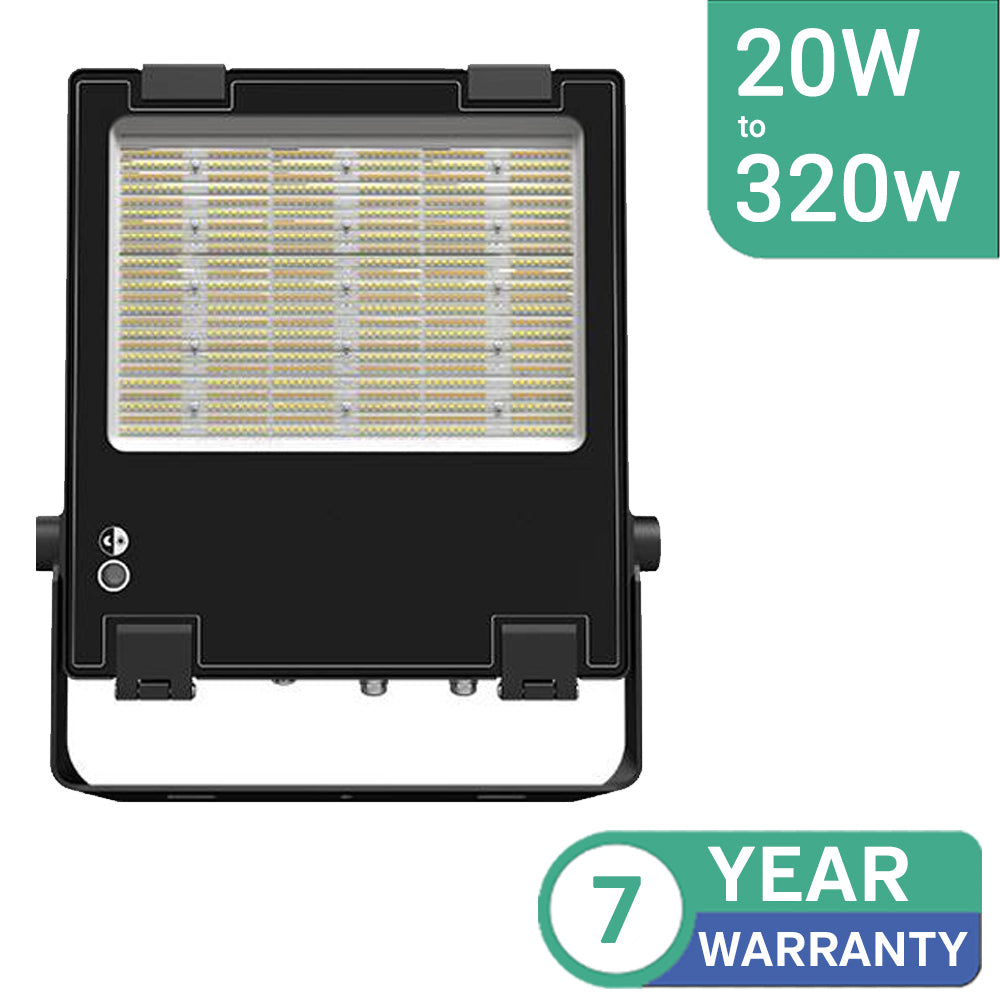

20W to 320W PREMIUM LED Floodlight CCT Selectable IP66

20W–320W PREMIUM LED Floodlight CCT Selectable IP66

The PREMIUM LED Floodlight is a high-performance commercial and industrial exterior luminaire designed for projects requiring excellent efficiency, robust construction, flexible optical control and straightforward installation.

Available from 20W to 320W, the range covers applications from smaller building-mounted installations through to larger commercial car parks, industrial yards, storage areas, access roads, schools, leisure facilities and general exterior lighting.

Each fitting is CCT selectable between 3000K, 4000K and 5000K, allowing the colour temperature to be selected on site to suit the project and surrounding environment.

A choice of wide symmetric and high-efficiency asymmetric optics allows the light distribution to be matched to the mounting position. The asymmetric versions are particularly suited to perimeter and lighting-column installations where useful light needs to be projected forward into the target area while helping to reduce unnecessary light spill.

With efficacy of up to 180lm/W, IP66 ingress protection, IK08 impact resistance, integral adjustable photocell, enhanced surge protection and a 7-year warranty, the PREMIUM range provides a versatile solution for demanding commercial exterior lighting projects.

Key Features

Available from 20W to 320W
High efficiency up to 180lm/W
3000K / 4000K / 5000K CCT selectable
Choice of symmetric and asymmetric optical distributions
110° × 110° symmetric beam option
60° × 120° asymmetric beam option
High-efficiency asymmetric lens technology designed to reduce unnecessary light spill
Integral adjustable photocell with Off, 20–60 lux and 80–120 lux settings
IP66 ingress protection
IK08 impact resistance
Marine-grade construction for demanding exterior environments
Pre-installed breathable gland helps prevent internal moisture accumulation
Pre-wired with 1.5 metres of rubber-insulated cable
Fast-fit lever terminals for easy loop-in, loop-out installation
Bracket design allows installation without removing the mounting bracket
6kV surge protection on 20W to 80W models
10kV surge protection on 120W to 320W models
L80 rated at 100,000 hours
Operating temperature from -30°C to +50°C
Suitable for building-mounted and lighting-column installations
7-year warranty
Free professional lighting-design support available from Wydels

Available Wattages

The PREMIUM LED Floodlight range is available across outputs from 20W to 320W:

20W–40W
80W
120W
160W
240W
320W

The broad wattage range allows different output levels to be used across the same project while retaining a consistent luminaire family and appearance.

Symmetric Optic – 110° × 110°

The symmetric version provides a broad and even light distribution around the luminaire.

This option is particularly suitable where the floodlight is positioned within or close to the area being illuminated, including building-mounted applications, loading areas, smaller yards, entrances and general exterior lighting.

Published maximum lumen outputs for the symmetric versions are:

20W–40W – up to 7,200 lumens
80W – 14,000 lumens
120W – 22,000 lumens
160W – 29,000 lumens
240W – 44,000 lumens
320W – 58,000 lumens

Asymmetric Optic – 60° × 120°

The asymmetric version is designed to project more useful light forward from the mounting position.

This makes it particularly well suited to perimeter-mounted installations and lighting columns positioned around car parks, yards, access roads and commercial sites.

The high-efficiency asymmetric lens provides improved optical control and can help reduce unnecessary light behind the luminaire and outside the intended target area.

Published maximum lumen outputs for the asymmetric versions are:

20W–40W – up to 7,100 lumens
80W – 14,000 lumens
120W – 21,000 lumens
160W – 28,000 lumens
240W – 43,000 lumens
320W – 57,000 lumens

The most suitable optic will depend on the mounting position, mounting height, aiming angle, site dimensions and required lighting performance.

CCT Selectable – 3000K, 4000K & 5000K

Each PREMIUM LED Floodlight allows the colour temperature to be selected between 3000K, 4000K and 5000K.

3000K Warm White

3000K provides a warmer appearance and can be particularly useful for residential surroundings, hospitality locations, amenity spaces and projects where a softer night-time appearance is preferred.

4000K Cool White

4000K provides a balanced white appearance and is suitable for the majority of commercial car parks, industrial yards, schools, access roads and general exterior-lighting applications.

5000K Daylight White

5000K provides a cooler and crisper light appearance for applications where a daylight-style white light is preferred.

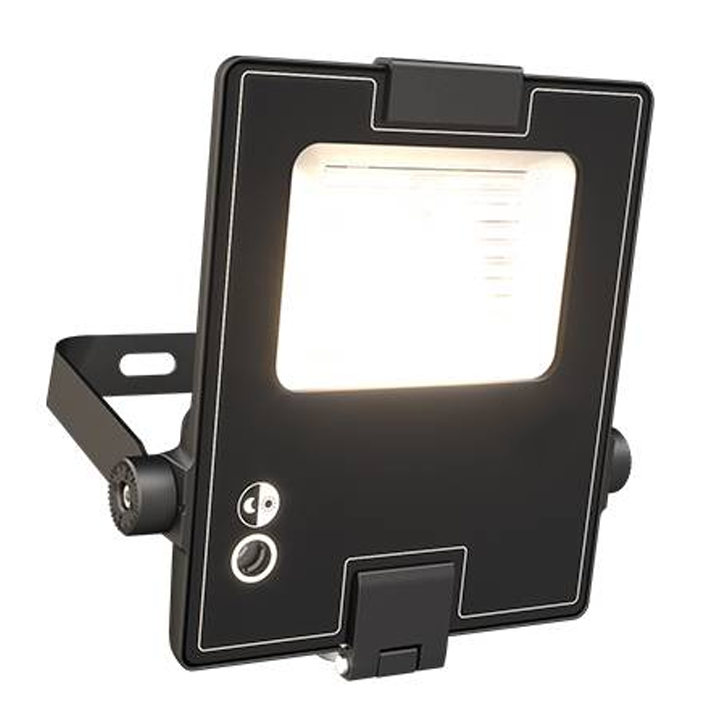

Integral Adjustable Photocell

The PREMIUM LED Floodlight includes an integral adjustable photocell, allowing automatic dusk-to-dawn operation without requiring a separate external photocell.

Three settings are available:

Off – photocell disabled for conventional switched or controlled operation
20–60 lux – lower ambient-light switching range
80–120 lux – higher ambient-light switching range

This provides additional flexibility where automatic operation is required while allowing the switching threshold to be adjusted around the site conditions and project requirements.

Designed for Fast Installation

The PREMIUM range incorporates several installation features designed to reduce installation time and simplify electrical connection.

Each fitting is pre-wired with 1.5 metres of rubber-insulated cable.

Fast-fit lever terminals allow quick loop-in, loop-out electrical connections, making the range particularly useful where multiple luminaires are being installed across a larger commercial site.

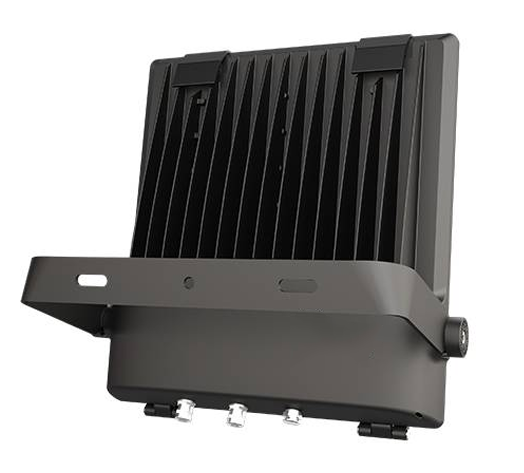

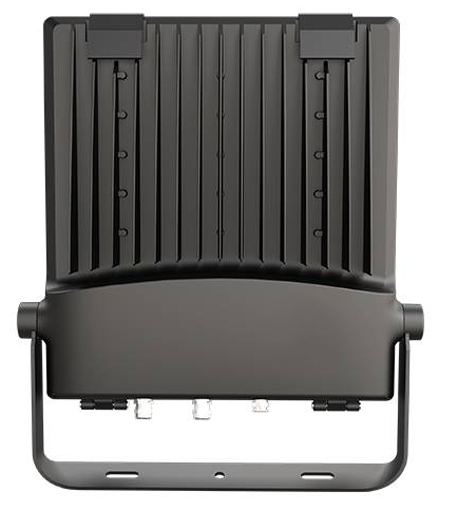

The mounting-bracket design allows the fitting to be installed without removing the bracket from the luminaire, helping simplify positioning and installation.

Breathable Gland & Moisture Control

A pre-installed breathable gland helps prevent internal moisture accumulation by allowing pressure within the luminaire to equalise while maintaining the environmental protection of the housing.

This is particularly beneficial for exterior installations exposed to changing temperatures, humidity and adverse weather conditions.

Enhanced Surge Protection

The PREMIUM LED Floodlight incorporates enhanced surge protection to provide additional protection against transient overvoltage within exterior electrical installations.

20W to 80W models – 6kV surge protection
120W to 320W models – 10kV surge protection

This is particularly useful for lighting-column and larger commercial installations where luminaires may be more exposed to electrical surges.

Marine-Grade Construction

The PREMIUM LED Floodlight incorporates marine-grade construction suitable for demanding exterior environments including coastal locations, adverse-weather installations, swimming-pool surroundings and selected chemical-plant applications.

Its IP66 housing, breathable gland and robust construction provide enhanced protection against moisture and challenging environmental conditions.

For projects specifically requiring C5 corrosion classification together with documented 1,000-hour salt-spray and chlorine testing, our specialist MARINE PRO LED Floodlight range provides an enhanced solution for highly corrosive environments.

Typical Applications

The PREMIUM LED Floodlight is suitable for applications including:

Commercial car parks
Industrial yards
Storage and distribution sites
Sports Lighting
Loading areas
Building perimeters
Access roads
Schools and leisure facilities
Commercial premises
Security lighting
Coastal locations
Swimming-pool surroundings
Selected industrial and chemical-plant environments
Lighting-column installations
General exterior lighting

PREMIUM LED Floodlight Technical Specification Symmetric Version:

Specification	20–40W	80W	120W	160W	240W	320W
Maximum Lumen Output	7,200 lm	14,000 lm	22,000 lm	29,000 lm	44,000 lm	58,000 lm
Published Efficacy	Up to 180lm/W	175lm/W	Up to 180lm/W	Up to 180lm/W	Up to 180lm/W	Up to 180lm/W
Colour Temperature	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K
Beam Angle	110° × 110°	110° × 110°	110° × 110°	110° × 110°	110° × 110°	110° × 110°
Integral Photocell	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux
Surge Protection	6kV	6kV	10kV	10kV	10kV	10kV
CRI	70	70	70	70	70	70
Input Voltage	220–240V	220–240V	220–240V	220–240V	220–240V	220–240V
UGR	31	31	31	31	31	31
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
IK Rating	IK08	IK08	IK08	IK08	IK08	IK08
Material	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium
Finish	Black	Black	Black	Black	Black	Black
Pre-Wired Cable	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated
Breathable Gland	Yes	Yes	Yes	Yes	Yes	Yes
Fast-Fit Terminals	Yes	Yes	Yes	Yes	Yes	Yes
Weight	2.2kg	3kg	4.1kg	4.89kg	6.57kg	7.63kg
Lumen Maintenance	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours
Operating Temperature	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C
Warranty	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years

PREMIUM LED Floodlight Technical Specification Asymmetric Version:

Specification	20–40W	80W	120W	160W	240W	320W
Maximum Lumen Output	7,100 lm	14,000 lm	21,000 lm	28,000 lm	43,000 lm	57,000 lm
Published Efficacy	Up to 180lm/W	175lm/W	Up to 180lm/W	Up to 180lm/W	Up to 180lm/W	Up to 180lm/W
Colour Temperature	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K	3000K / 4000K / 5000K
Beam Angle	60° × 120° Asymmetric	60° × 120° Asymmetric	60° × 120° Asymmetric	60° × 120° Asymmetric	60° × 120° Asymmetric	60° × 120° Asymmetric
Integral Photocell	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux	Off / 20–60 / 80–120 lux
Surge Protection	6kV	6kV	10kV	10kV	10kV	10kV
CRI	70	70	70	70	70	70
Input Voltage	220–240V	220–240V	220–240V	220–240V	220–240V	220–240V
UGR	31	31	31	31	31	31
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
IK Rating	IK08	IK08	IK08	IK08	IK08	IK08
Material	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium	Die-Cast Aluminium
Finish	Black	Black	Black	Black	Black	Black
Pre-Wired Cable	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated	1.5m Rubber-Insulated
Breathable Gland	Yes	Yes	Yes	Yes	Yes	Yes
Fast-Fit Terminals	Yes	Yes	Yes	Yes	Yes	Yes
Weight	2.35kg	3.1kg	4.24kg	4.89kg	6.57kg	7.63kg
Lumen Maintenance	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours	L80 100,000 Hours
Operating Temperature	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C	-30°C to +50°C
Warranty	7 Years	7 Years	7 Years	7 Years	7 Years	7 Years

Complete Exterior Lighting Solutions

The PREMIUM LED Floodlight can be combined with our lighting columns and lighting-column brackets to create a complete column-mounted exterior lighting system.

For highly corrosive coastal and marine environments requiring C5 corrosion classification and documented salt-spray and chlorine testing, see our MARINE PRO LED Floodlight range.

For sports pitches and larger applications requiring very high output or specialist sports-lighting optics, see our STADIA LED Sports Floodlight range.

Free Professional Lighting Design

Our free professional lighting-design service can help determine suitable floodlight wattages, optics, quantities, mounting heights, aiming angles and positions for your project.

Send us your site drawing, dimensions or proposed lighting-column positions and our team can prepare a professional lighting layout, performance calculations and detailed supply quotation.

For technical assistance, call Wydels on 01536 264064 or email enquiries@wydels.co.uk.

Frequently Asked Questions

What wattages are available in the PREMIUM LED Floodlight range?

The PREMIUM LED Floodlight range is available from 20W to 320W, including 20–40W, 80W, 120W, 160W, 240W and 320W models.

What colour temperatures are available?

Each PREMIUM LED Floodlight is CCT selectable between 3000K warm white, 4000K cool white and 5000K daylight white.

What is the difference between the symmetric and asymmetric optics?

The 110° × 110° symmetric optic provides a broad and even light distribution around the luminaire and is well suited to building-mounted and general area-lighting applications.

The 60° × 120° asymmetric optic projects more useful light forward from the mounting position, making it particularly suitable for perimeter and lighting-column installations around car parks, yards and access roads.

Does the PREMIUM LED Floodlight have an integral photocell?

Yes. The PREMIUM range includes an integral adjustable photocell with three settings: Off, 20–60 lux and 80–120 lux.

This allows the fitting to operate automatically according to ambient light levels or to be used with the photocell disabled where conventional switching or external controls are preferred.

What surge protection is included?

The 20W to 80W models include 6kV surge protection, while the 120W to 320W models include enhanced 10kV surge protection.

Is the PREMIUM LED Floodlight suitable for coastal environments?

Yes. The PREMIUM range incorporates marine-grade construction and is suitable for demanding exterior environments including coastal locations, adverse-weather installations, swimming-pool surroundings and selected industrial environments.

For highly corrosive sites requiring C5 corrosion classification together with documented salt-spray and chlorine testing, the MARINE PRO LED Floodlight range should be considered.

How does the breathable gland help the fitting?

The pre-installed breathable gland helps reduce internal moisture accumulation by allowing pressure within the luminaire to equalise while maintaining the environmental protection of the housing.

Is the PREMIUM LED Floodlight designed for easy installation?

Yes. The fitting is supplied pre-wired with 1.5 metres of rubber-insulated cable and includes fast-fit lever terminals for quick loop-in, loop-out connections.

The mounting-bracket design also allows the fitting to be installed without removing the bracket from the luminaire.

What IP and impact ratings does the PREMIUM LED Floodlight have?

The PREMIUM LED Floodlight is rated IP66 for ingress protection and IK08 for impact resistance, making it suitable for demanding exterior installations.

What is the rated lifetime of the PREMIUM LED Floodlight?

The PREMIUM range is rated L80 at 100,000 hours, providing a long service life for commercial and industrial lighting applications.

What warranty is supplied?

The PREMIUM LED Floodlight range is supplied with a 7-year warranty.

Can Wydels provide a lighting design for the PREMIUM LED Floodlight?

Yes. Wydels provides a free professional lighting-design service to help determine suitable wattages, optics, quantities, mounting heights, aiming angles and positions for your project.
