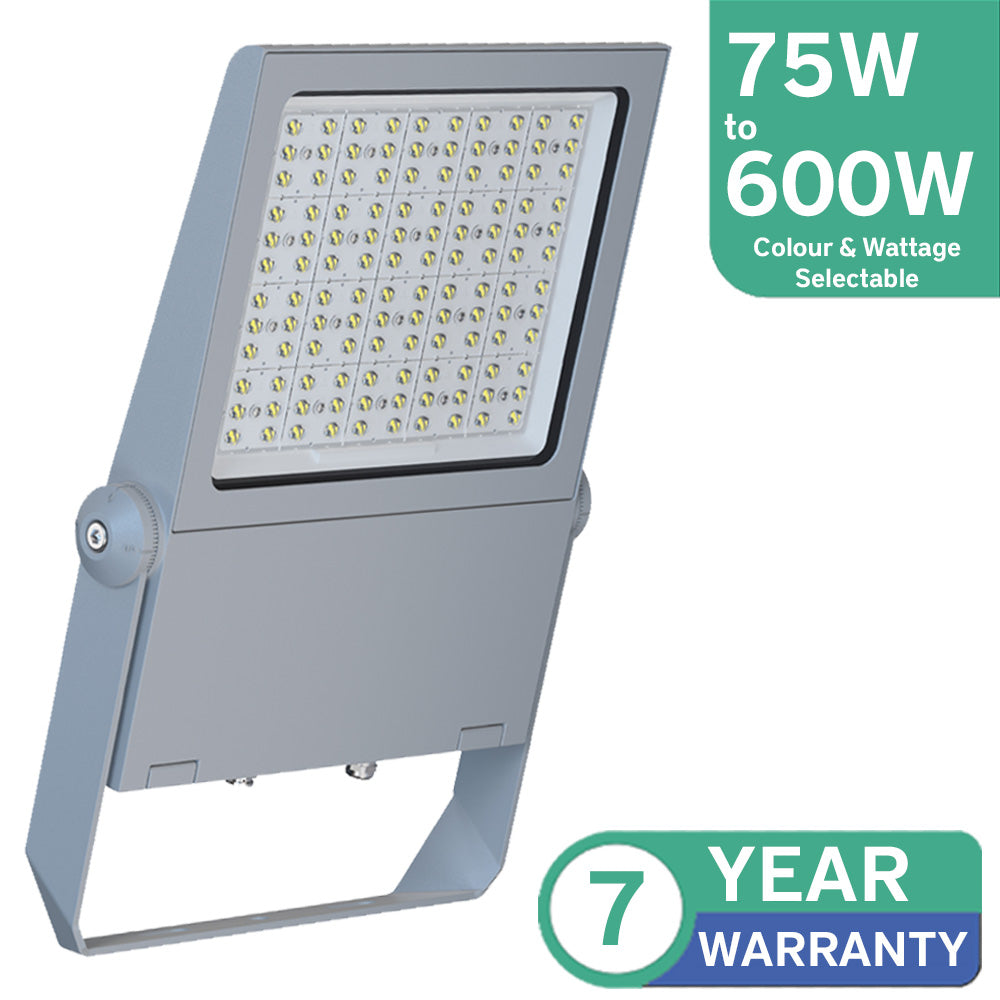

75W to 600W MARINE PRO LED Floodlight C5 Corrosion Resistant IP66

75W–600W MARINE PRO LED Floodlight for Coastal, Marine & Harsh Environments

The MARINE PRO LED Floodlight is a premium high-performance exterior floodlight developed specifically for coastal, marine, swimming-pool and other highly corrosive environments where conventional exterior luminaires may be unsuitable.

Available across three wattage-selectable body sizes covering outputs from 75W to 600W, the MARINE PRO combines high-output LED performance with enhanced environmental protection, corrosion resistance and a 90° nominal asymmetric optic designed to project light forward into the target area.

The range is C5 corrosion compliant and has undergone a 1,000-hour salt-spray test to ISO 9227:2022 together with a 1,000-hour chlorine test to IEC 60068-2-60. This makes the MARINE PRO particularly suited to demanding locations exposed to salt, high humidity, chlorine and aggressive atmospheric conditions.

Each fitting is colour-temperature selectable between 2700K, 4000K and 6500K and delivers an efficacy of up to 170 lumens per watt.



Key Features

• 75W to 600W range across three wattage-selectable body sizes
• Up to 170lm/W efficacy
• 2700K / 4000K / 6500K colour-temperature selectable
• 90° nominal asymmetric beam distribution
• C5 corrosion compliant
• 1,000-hour salt-spray tested to ISO 9227:2022
• 1,000-hour chlorine tested to IEC 60068-2-60
• IP66 ingress protection
• IK09 impact resistance
• Aluminium housing with tempered glass
• Operating temperature from -40°C to +50°C
• Power factor >0.95
• 100,000-hour rated lifetime, L70-B10 at 45°C
• Optional DALI 2.0 dimming
• 7-year warranty
• Suitable for coastal, marine, swimming-pool and harsh-environment applications



Wattage-Selectable MARINE PRO Models

75W / 100W / 150W / 200W MARINE PRO

The smallest MARINE PRO body size provides four selectable power settings, allowing the output to be adjusted between 75W and 200W to suit the requirements of the installation.

It is well suited to coastal car parks, commercial premises, building-mounted lighting, industrial areas and lower mounting heights.

At 4000K:

• 75W – 12,750 lumens
• 100W – 17,000 lumens
• 150W – 25,500 lumens
• 200W – 34,000 lumens

Dimensions: 523 × 388 × 139mm
Net weight: 6.3kg

250W / 300W / 350W / 400W MARINE PRO

The medium body size provides selectable outputs from 250W to 400W and is designed for larger commercial, industrial and marine exterior areas.

At 4000K:

• 250W – 42,500 lumens
• 300W – 51,000 lumens
• 350W – 59,500 lumens
• 400W – 68,000 lumens

Dimensions: 670 × 444 × 166mm
Net weight: 12.3kg

450W / 500W / 550W / 600W MARINE PRO

The largest MARINE PRO model provides selectable outputs from 450W to 600W for high-output installations, larger exterior areas and higher mounting positions.

At 4000K:

• 450W – 76,500 lumens
• 500W – 85,000 lumens
• 550W – 93,500 lumens
• 600W – 102,000 lumens

Dimensions: 750 × 546 × 177mm
Net weight: 15.4kg



C5 Corrosion Protection

The MARINE PRO has been developed for highly corrosive environments where moisture, salt and aggressive atmospheric conditions can accelerate the deterioration of conventional exterior luminaires.

Its C5 corrosion classification makes the range particularly suitable for coastal and marine environments, ports, harbours, seafront developments, high-humidity locations and other demanding exterior applications.



1,000-Hour Salt-Spray Tested

The MARINE PRO has undergone a 1,000-hour salt-spray test in accordance with ISO 9227:2022.

This provides supporting evidence for use in coastal and marine locations where airborne salt and moisture can create a significantly more corrosive environment than standard inland installations.



1,000-Hour Chlorine Tested

The MARINE PRO has also completed a 1,000-hour chlorine test in accordance with IEC 60068-2-60.

This makes the range particularly relevant to swimming-pool surroundings and other locations where chlorine exposure and aggressive atmospheric conditions need to be considered.



90° Nominal Asymmetric Optic

The MARINE PRO uses a 90° nominal asymmetric light distribution designed to project useful light forward from the mounting position.

This makes the fitting particularly well suited to perimeter and lighting-column installations where the luminaires are positioned around the edge of the area being illuminated.

An asymmetric distribution can help direct more of the available light into the target area while reducing unnecessary light behind the luminaire.

Mounting height, spacing, aiming angle and selected wattage should be considered together when designing the lighting scheme.



Colour-Temperature Selectable

Each MARINE PRO floodlight is selectable between three colour temperatures:

2700K Warm White

2700K provides a warm appearance and can be particularly useful for environmentally sensitive locations, residential surroundings, hospitality environments and projects where a warmer night-time appearance is preferred.

4000K Cool White

4000K provides a balanced white appearance and is suitable for the majority of commercial, industrial, marine and exterior lighting applications.

6500K Daylight White

6500K provides a cooler daylight appearance for applications where a crisp, high-contrast light is preferred.

Optional DALI 2.0 Dimming

DALI 2.0 dimming is available as an optional version of the MARINE PRO, allowing the floodlight to be incorporated into compatible lighting-control systems where dimming, scheduling or central control is required. Contact us for pricing on this version.



Typical Applications

The MARINE PRO LED Floodlight is suitable for demanding exterior applications including:

• Coastal car parks
• Harbours and marinas
• Ports and dock facilities
• Seafront developments
• Swimming-pool surroundings
• Commercial car parks
• Industrial and storage yards
• Warehouses and distribution centres
• High-humidity facilities
• Building perimeters
• Harsh-environment installations
• Lighting-column installations



Technical Specification:
