20W Solar LED Street Lantern 2,200 Lumens Daylight PIR IP65

20W Solar LED Street Lantern with PIR & Dusk-to-Dawn Sensor

The 20W Solar LED Street Lantern provides off-grid exterior lighting for pathways, car parks, yards, residential areas and other locations where installing a mains electricity supply would be difficult or expensive.

Combining a solar panel, rechargeable battery, LED light source and automatic lighting controls within one fitting, the lantern provides reduced background illumination with motion-activated full output.

At dusk, the lantern switches on at a 30% holding-light level. When movement is detected, it increases to 100% output, returning to the holding level after approximately 20 seconds without further activity. At dawn, the light switches off and the battery recharges during daylight.

The lantern can be purchased individually or with a suitable mounting bracket. For a complete column-mounted system, explore our 20W Solar LED Street Light & Lighting Column Packages.

Key Features

20W maximum LED power with 2,200-lumen full output
6000K daylight-white light
Solar-powered operation without a mains connection to the lantern
Integrated rechargeable lithium battery
Automatic dusk-to-dawn control
PIR motion-sensor operating mode
30% holding light between motion detections
100% output when movement is detected
Approximately 20-second timeout after the last detected activity
Lantern-only, wall-bracket and column-arm options
IP65-rated black ABS and polycarbonate construction
Available as a complete solar lighting column package

2,200 Lumens from 20W

The lantern provides approximately 2,200 lumens at full brightness, giving a published LED efficacy of 110 lumens per watt.

The maximum power and lumen figures describe motion-activated full-output operation. Between detections, the lantern returns to its reduced holding level rather than continuously operating at maximum brightness.

When specifying the lighting, consider both the background illumination required while the area is quiet and the increased light level provided when movement is detected.

PIR Motion-Sensor Operation

The 20W lantern operates in PIR motion-sensor mode only. Its automatic programme combines a reduced holding light with full brightness when activity is detected.

At Dusk – 30% Holding Light

As daylight fades, the lantern automatically switches on at approximately 30% output. This provides background illumination between motion detections.

Movement Detected – 100% Output

When the PIR sensor detects movement, the lantern increases to 100% output, providing additional illumination during activity.

After Activity – Return to 30%

After approximately 20 seconds without further detected movement, the lantern returns to its 30% holding-light level. Further movement activates full output again.

At Dawn – Light Off and Daytime Charging

At dawn, the LED light switches off and the solar panel recharges the battery during daylight, ready for the next night.

There is no separate selectable constant-light mode. The lantern uses the same holding-light and motion-activated operating sequence during normal night-time operation.

Integrated Solar Charging & Rechargeable Battery

The solar panel collects energy during daylight to recharge the lantern's internal battery. This allows the fitting to operate without a mains electricity connection.

The rechargeable battery supplies the LED light and controls during night-time operation. The reduced holding-light setting uses less energy than continuous full-output operation, while still allowing the lantern to increase its brightness when movement is detected.

The published charging time is approximately 6–7 hours of suitable sunlight. This is not a guarantee of a full charge from the same number of daylight hours in all weather conditions.

Lantern-Only, Wall-Bracket & Column-Arm Options

Choose the purchase option that matches your proposed installation:

20W Solar LED Street Lantern Only: for installations where a suitable mounting arrangement is already available.

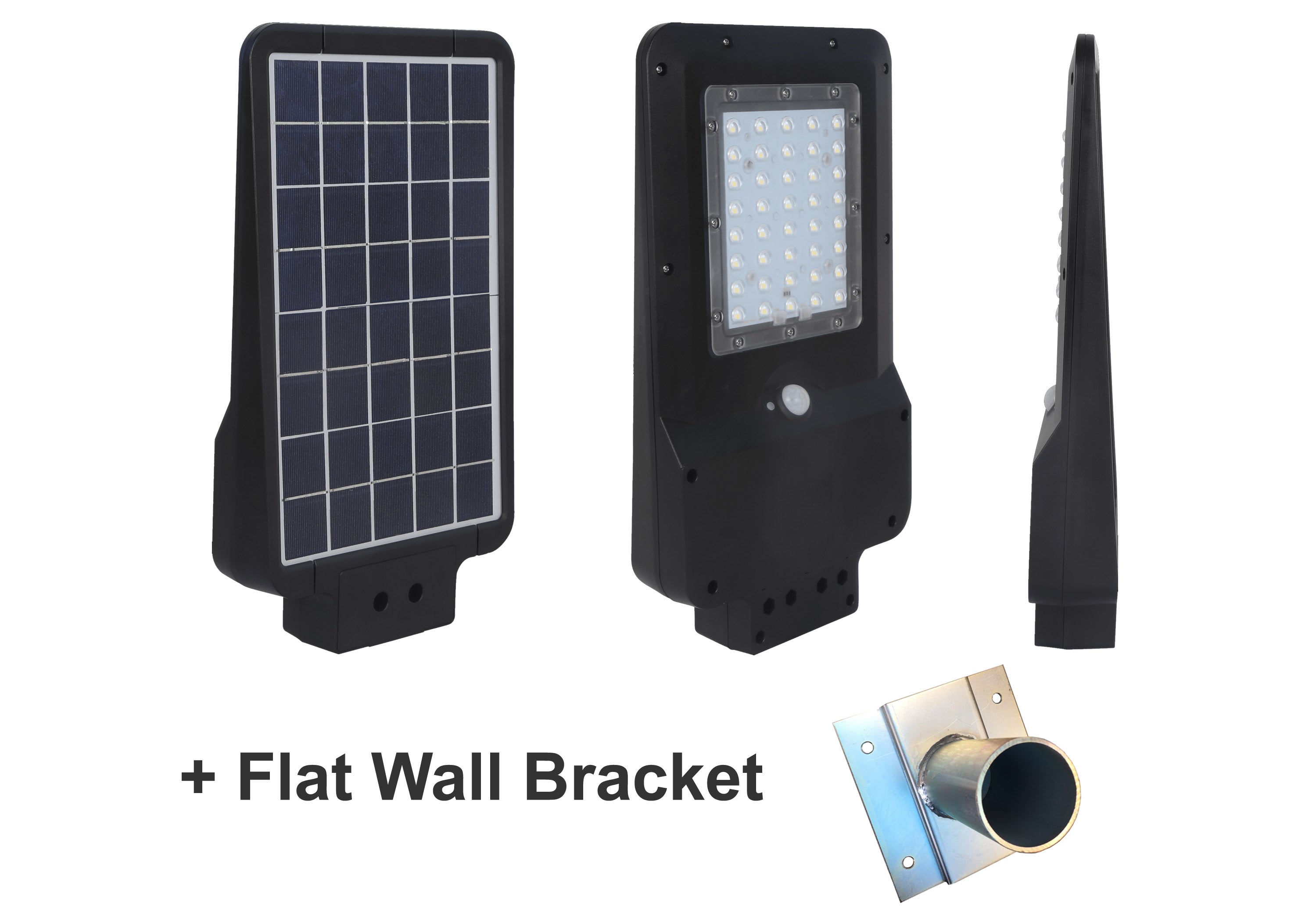

Lantern with Flat Wall Bracket: for mounting onto a suitable flat wall surface.

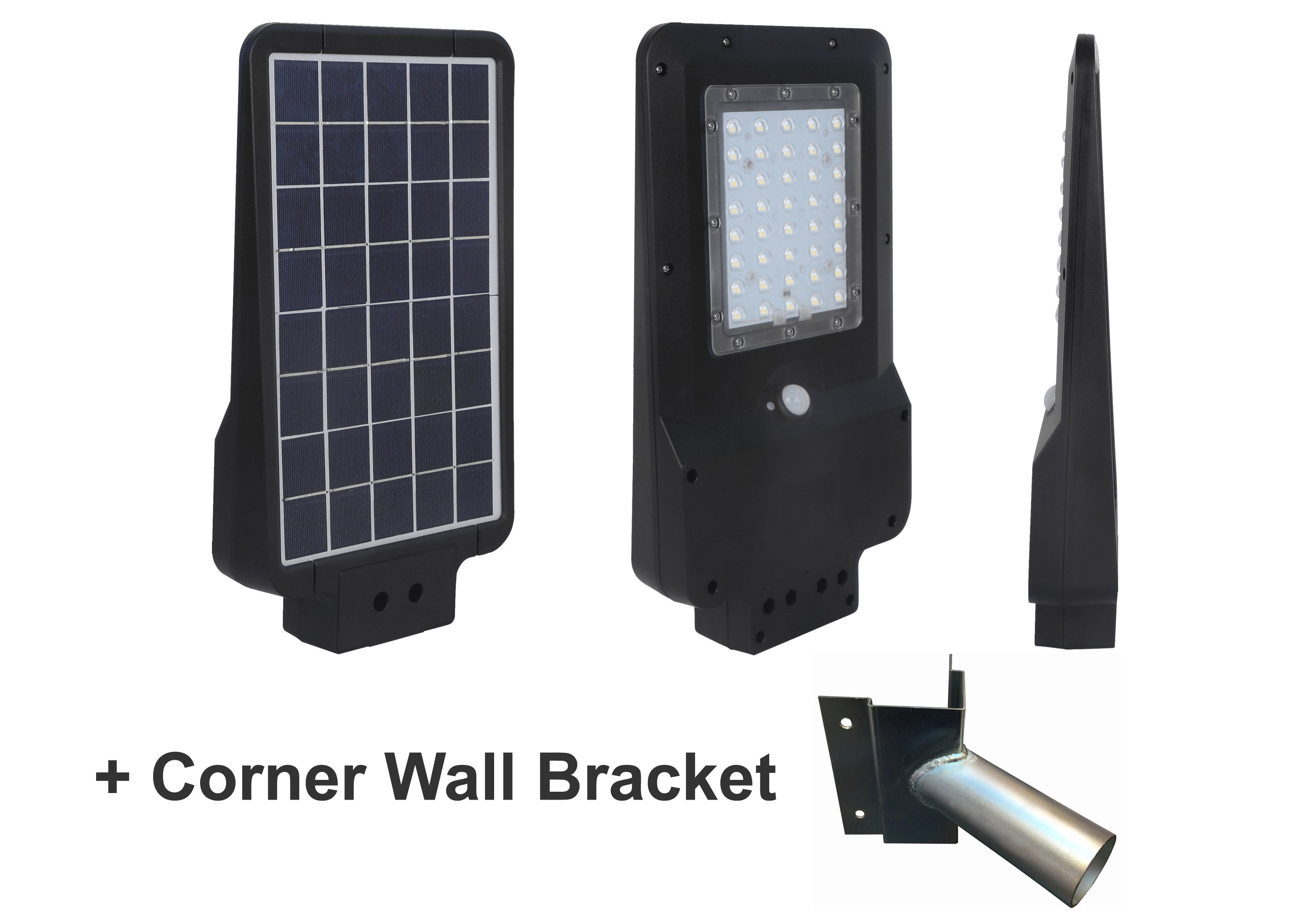

Lantern with Corner Wall Bracket: for installations requiring a corner-mounted arrangement.

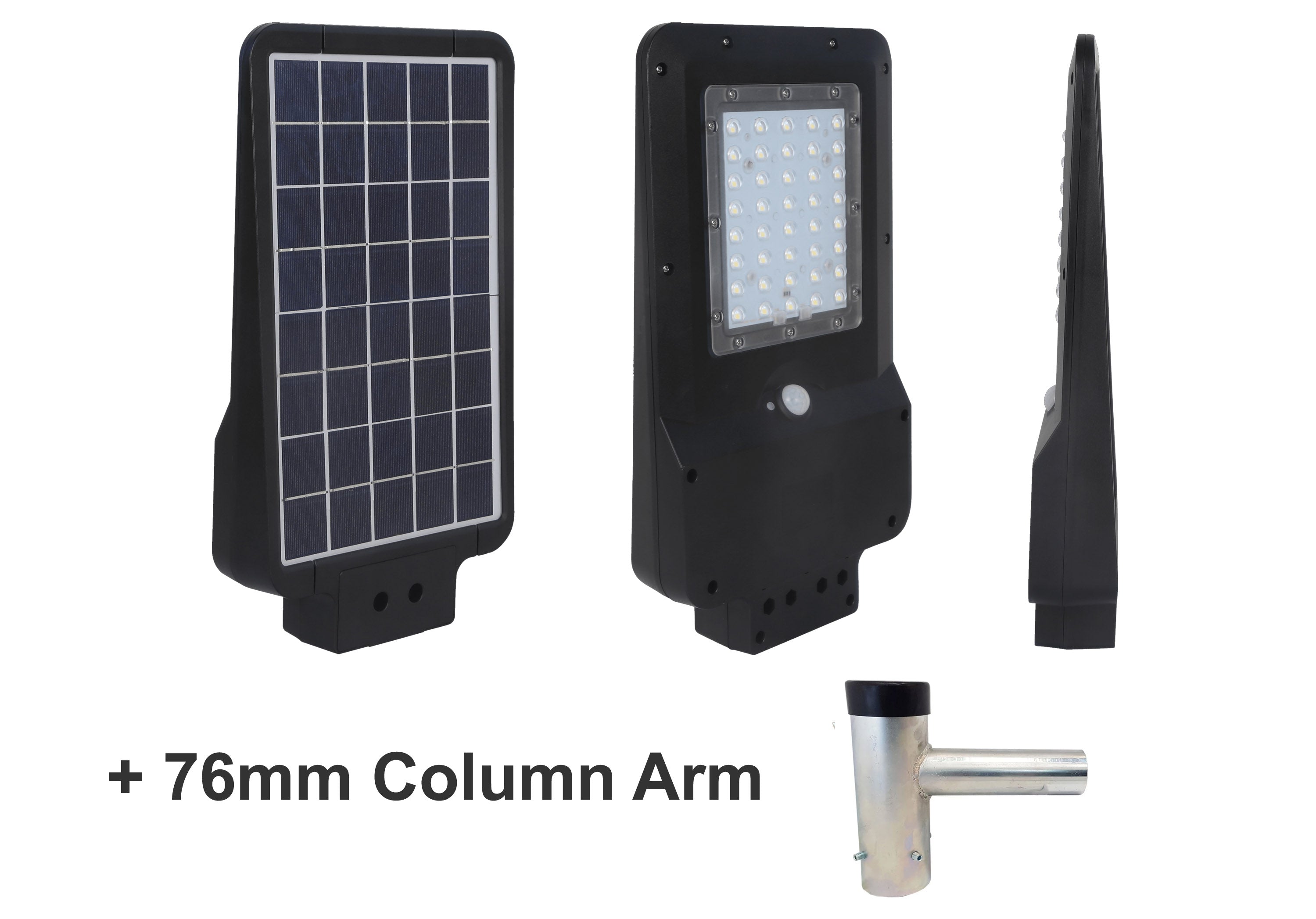

Lantern with 76mm Column Arm: for mounting onto a suitable lighting column using the selected arm.

A lighting column is not included with these options. Choose the separate complete column package when a column, lantern and outreach arm are required together.

For an existing installation, check the mounting dimensions and confirm that the supporting structure and fixings are suitable before ordering.

Solar Performance & Positioning

Consider the solar-panel position alongside the direction in which the lantern needs to illuminate the site. Nearby buildings, roof overhangs, trees and other obstructions should be included when planning the installation.

Choose a position with good solar exposure and minimal shading. This is particularly important for wall-mounted installations, where a suitable position for the light may not provide the best exposure for the solar panel.

Operating time depends on the energy available in the battery and the frequency of motion detections. Frequent activity keeps the lantern at full output for longer and increases its energy use.

Where a project requires a particular minimum lighting level or operating duration, provide Wydels with the installation postcode, site layout and expected hours of use before ordering.

Typical Applications

The 20W Solar LED Street Lantern can be considered for car parks, yards, residential exterior areas, walkways and passages where background lighting with motion-activated full output suits the application.

The proposed mounting position should account for both the area requiring illumination and the routes where movement needs to be detected.

20W Solar LED Street Lantern Technical Specification

Specification	Details
Maximum LED Power	20W
Maximum Lumen Output	2,200 lm
LED Efficacy	110 lm/W
Colour Temperature	6000K Daylight White
Power Source	Solar Panel and Rechargeable Battery
Battery Type	Rechargeable Lithium Battery
Battery Voltage	7.4V
Battery Capacity	5,400mAh / 5.4Ah
Quoted Charging Time	Approximately 6–7 Hours of Suitable Sunlight
Operating Mode	PIR Motion Sensor Only
Holding Light Level	30% Output
PIR Activated Level	100% Output
PIR Timeout	Approximately 20 Seconds After the Last Detected Activity
PIR Detection Range	Approximately 3–8m
PIR Detection Angle	120°
Automatic Day/Night Control	On at Dusk / Off at Dawn
IP Rating	IP65
Material	ABS & Polycarbonate
Finish	Black
Dimensions (L × W × H)	413 × 232 × 58mm
Weight	2.5kg
Operating Temperature	-20°C to +45°C
Rated Lantern Lifetime	30,000 Hours
Mains Electricity Required	No
Warranty	3 Years

Complete Solar Lighting Column Packages

For new installations, our complete 20W Solar LED Street Light & Lighting Column Packages combine the lantern, a compatible galvanized steel column and a 200mm outreach arm bracket.

Choose from 3m, 4m, 5m or 6m columns, with either root-mounted or flange-plate installation. This provides a convenient alternative to ordering the main components separately.

The packages are supply only. Suitable foundations, groundworks and installation must be arranged for the selected mounting method.

Need a Higher-Output Solar Lantern?

Our 45W Solar LED Street Lantern provides a higher maximum output of 5,500 lumens and offers both constant-light and PIR operating modes.

The most suitable lantern should be selected around the required illumination, mounting arrangement and operating programme rather than wattage alone.

Free Professional Solar Lighting Design

Wydels provides a free professional lighting-design service to help determine suitable lantern quantities, mounting heights and positions for your project.

Our lighting calculations can assess illumination, uniformity and light distribution across the proposed area. The 20W lantern's holding-light and motion-activated settings can be considered when discussing the required lighting performance.

Send us your site drawing, dimensions, installation postcode and operating requirements, together with any preferred mounting positions and details of nearby obstructions.

Our team can prepare a professional lighting layout, performance calculations and detailed supply quotation.

Request a free professional lighting design

Call Wydels on 01536 264064 or email enquiries@wydels.co.uk.

Frequently Asked Questions

What light output does the 20W Solar LED Street Lantern provide?

The lantern provides approximately 2,200 lumens at full brightness from a maximum LED power of 20W.

This is the motion-activated output. Between detections, the lantern operates at its reduced holding-light level rather than continuously running at full brightness.

How does the PIR lighting programme work?

At dusk, the lantern automatically switches on at a 30% holding-light level.

When the PIR sensor detects movement, the lantern increases to 100% output. After approximately 20 seconds without further detected activity, it returns to the 30% holding level.

Further movement activates full output again. At dawn, the light switches off and the solar panel recharges the battery during daylight.

Does the lantern switch completely off when no movement is detected?

No. During its night-time operating programme, the lantern returns to a 30% holding-light level between detections.

This provides background illumination while the area is quiet, with full brightness activated by movement.

Is there a separate constant-light mode?

No. The 20W lantern operates in PIR motion-sensor mode only. It does not have a separate selectable constant-light mode.

Does the lantern require a mains electricity supply?

No. The lantern operates off-grid using its solar panel and rechargeable battery. A mains electricity connection to the fitting is not required.

What colour temperature is the lantern?

The 20W Solar LED Street Lantern is supplied in 6000K daylight white.

What battery does the lantern use?

The lantern uses a 7.4V rechargeable lithium battery with a capacity of 5,400mAh, equivalent to 5.4Ah.

How long does the battery take to charge?

The published charging time is approximately 6–7 hours of suitable sunlight.

This should not be interpreted as a guaranteed full charge from the same number of daylight hours in all weather conditions.

Where should the solar lantern be positioned?

Choose a position that provides good solar exposure with minimal shading, while also directing light towards the required area.

When planning a wall-mounted installation, consider roof overhangs, nearby buildings and trees. Check that the proposed position also allows the PIR sensor to cover the route where movement needs to be detected.

What should I consider for winter operation?

For projects requiring a particular minimum light level or operating duration during winter, ask Wydels to review the proposed site and operating requirements before ordering.

Provide the installation postcode, mounting positions, expected activity and required operating hours, together with details of potential shading. The holding-light and motion-activated levels should both be considered when assessing suitability.

What mounting options are available?

The lantern is available on its own or with a flat wall bracket, corner wall bracket or 76mm column arm.

Select the appropriate option when ordering and confirm compatibility with the intended mounting surface or column.

Is a lighting column included?

No. This listing is for the lantern and any selected bracket option. A lighting column is not included.

For a complete system, our separate package combines the lantern with a galvanized steel column and a 200mm outreach arm. Column heights of 3m, 4m, 5m and 6m are available in root-mounted or flange-plate versions.

View our complete 20W solar lighting column packages.

What is the PIR sensor's detection range?

The published PIR detection range is approximately 3–8 metres, with a detection angle of approximately 120°.

What IP rating and operating temperature range does the lantern have?

The lantern is rated IP65 and has a published operating temperature range of -20°C to +45°C.

What is the rated lifetime of the lantern?

The 20W Solar LED Street Lantern has a published rated lifetime of approximately 30,000 hours.

This is a rated-life figure, not the operating time available from a single battery charge.

What warranty is supplied?

The 20W Solar LED Street Lantern is supplied with a 3-year warranty.

Can Wydels provide a solar lighting design?

Yes. Wydels provides a free professional lighting-design service to help determine suitable lantern quantities, mounting heights and positions.

Send us your site drawing, dimensions, installation postcode and operating requirements. Include any preferred mounting positions and nearby obstructions so these can be considered alongside the lantern's PIR operating programme.

Request a free professional solar lighting design.
