Premium 3 Metre LED Street Lighting Column Complete Kit

Premium 3 Metre LED Street Lighting Column Complete Kit

All-in-One Lighting Solution | 20W to 50W Apollo LED Lantern | Fuse Cutout & Key Included

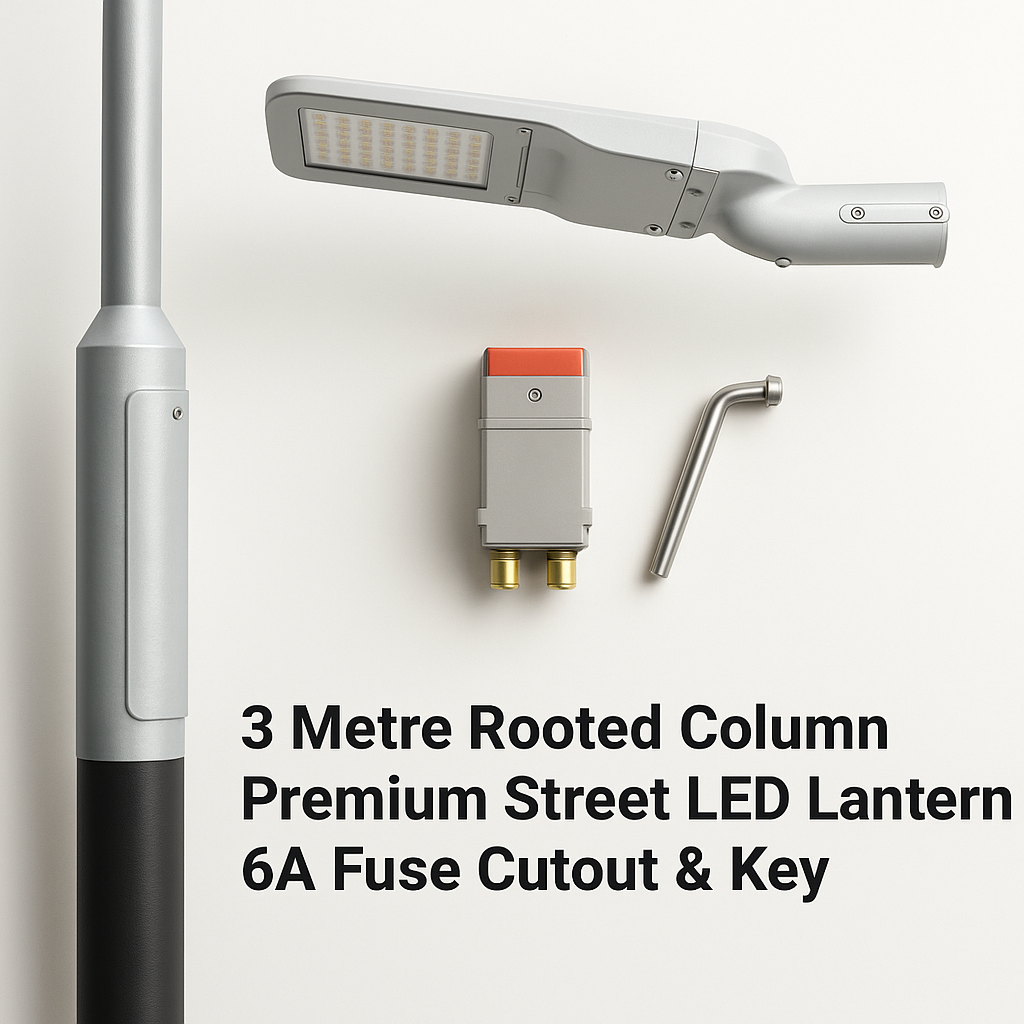

Simplify your installation with this ready-to-deploy lighting column package—a cost-effective, compliant solution for roads, car parks, residential areas, and commercial sites. Combining a 3m rooted galvanized steel column, high-performance premium Apollo LED street lantern, fuse cutout, and column door key, this kit streamlines procurement and ensures seamless compatibility.



---



---

Key Features & Benefits:
✅ The Complete, Hassle-Free Lighting System
Everything you need in one package:

   • 3m Galvanized Lighting Column: Hot-dipped to BS EN ISO 1461:2009, with 800mm root (140mm diameter) for stable burial.

   • Premium Apollo LED Street Lantern: Choose 20W to 50W adjustable output with optional photocell for dusk-to-dawn operation. CCT - colour adjustable.

   •  Fuse Cutout: Safely terminate and fuse PVC SWA cables for compliant single-phase power distribution.

   •  Triangular M8 Column Key: Secure access to the 500mm x 100mm column door aperture.

   •  Double Outreach Arm Bracket (Only if you select Double): Hot-dipped Galvanized Finish. 89mm collar to slot onto 76mm spigot. 200mm outreach with a 60mm diameter.

✅ Premium Apollo LED Street Lantern: Built for Value, Reliability and Flexibility

   •  Wattage & Colour Selectable: Choose from 20, 30, 40 or 50W. Also choose between 2700K, 4000K and 6500K.

   •  IP66 & IK08 Rated: Withstands heavy rain, dust, and impacts (up to 5 joules).

   •  10kV Surge Protection: Shields against voltage spikes in harsh environments.

   •  7-Year Warranty: Backed by a 2-year on-site manufacturer guarantee for peace of mind.

   •  Pre-Flexed 10m Cable: Saves installation time with integrated HO7RNF wiring.

✅ Customizable Lighting Performance
Choose the output option for your needs with a simple switch:

   •  20/30W: Ideal for pathways, residential zones, or low-traffic areas.

   •  40/50W: Perfect for car parks, roads, or security lighting.

   •  Colour Selectable: Choose 2700K (Warm White), 4000K (Cool White) or 6000K (Daylight)

   •  Add a Photocell: Enables automatic operation

✅ BS EN40 & PD6547 Certified
Column engineered from EN10210 steel tubing with a 50 Kg/m² load capacity (Terrain Category 2), ensuring compliance for public infrastructure.



---

Technical Specifications
Lighting Column:

   •  Height: 3 Metres | Shaft Diameter: 76mm

   •  Root Mount: 800mm length, 140mm diameter | 150mm x 75mm cable slot

   •  Door Aperture: 500mm x 100mm

   •  Standards: BS EN ISO 1461:2009, BS EN40, PD6547:2004 +A1:2009

Premium Apollo LED Street Lantern:

   •  Wattage Selectable: 20W to 50W (asymmetric beam)

   •  Colour Selectable: 2700K, 4000K and 6500K.

   •  Ingress Protection: IP66 (weatherproof) | IK08 (vandal-resistant)

   •  Surge Protection: 10kV

   •  Warranty: 7 years (2 years on-site)

Included Components:

   •  Fuse Cutout (for PVC SWA termination)

   •  M8 Triangular Column Door Key



---

Why Choose This Package?
✔️ Cost & Time Savings: Eliminate separate sourcing—get a compliant, compatible system delivered in one order.
✔️ Long-Term Value: The Apollo LED’s 100,000-hour lifespan cuts energy costs by up to 60% vs. traditional lighting.
✔️ Plug-and-Play Simplicity: Pre-fitted cable and included hardware reduces installation time.
✔️ Scalable Solutions: Need higher wattages (e.g., 80W, 100W) or bulk orders? Contact our team for custom quotes.



---

Need to Change Your Column, Back-to-Back Arrangement or Upgrade Your Lantern?
Want a different lumen output, multiple lanterns or a different column type? Contact our Sales Team at 01536 264064 or enquiries@wydels.co.uk to customise your kit.

Other wattages and configurations are available upon request.



---

---

Downloads:

3 Metre Root Mount Column Drawing
