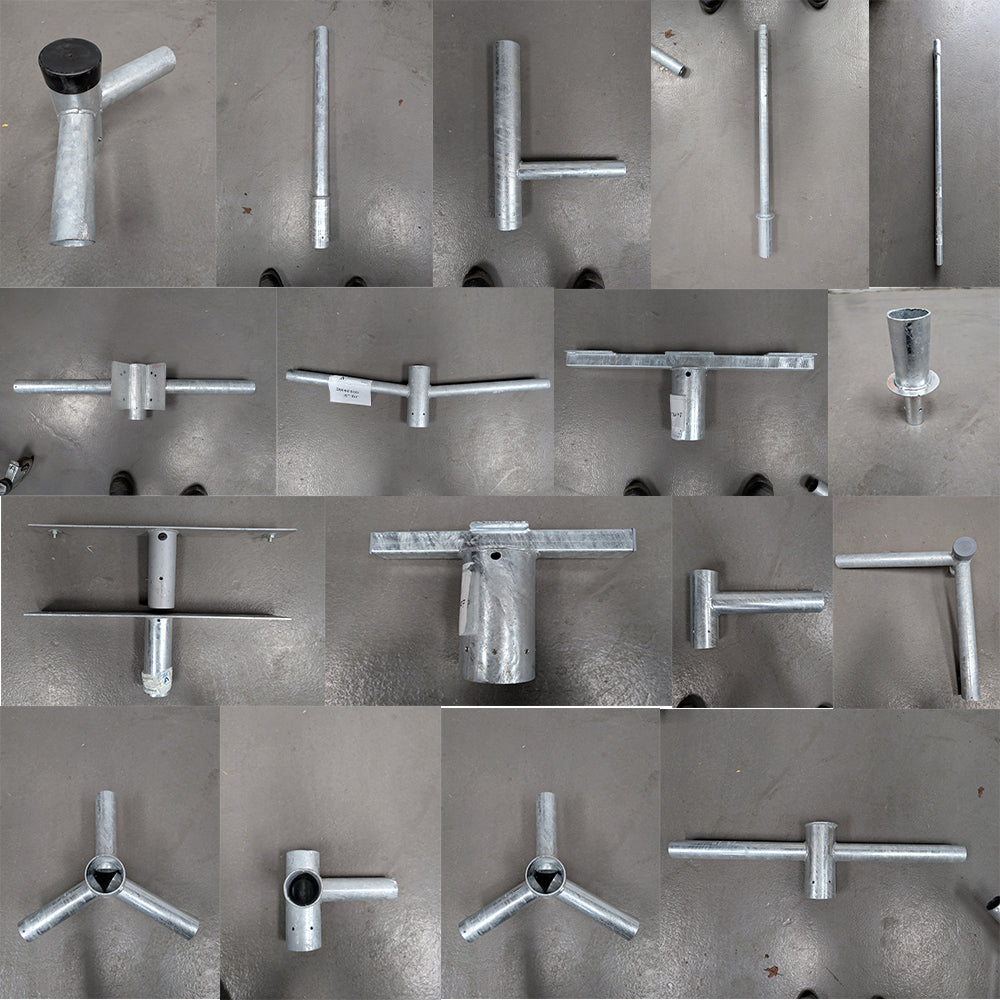

Miscellaneous Brackets
Miscellaneous Brackets

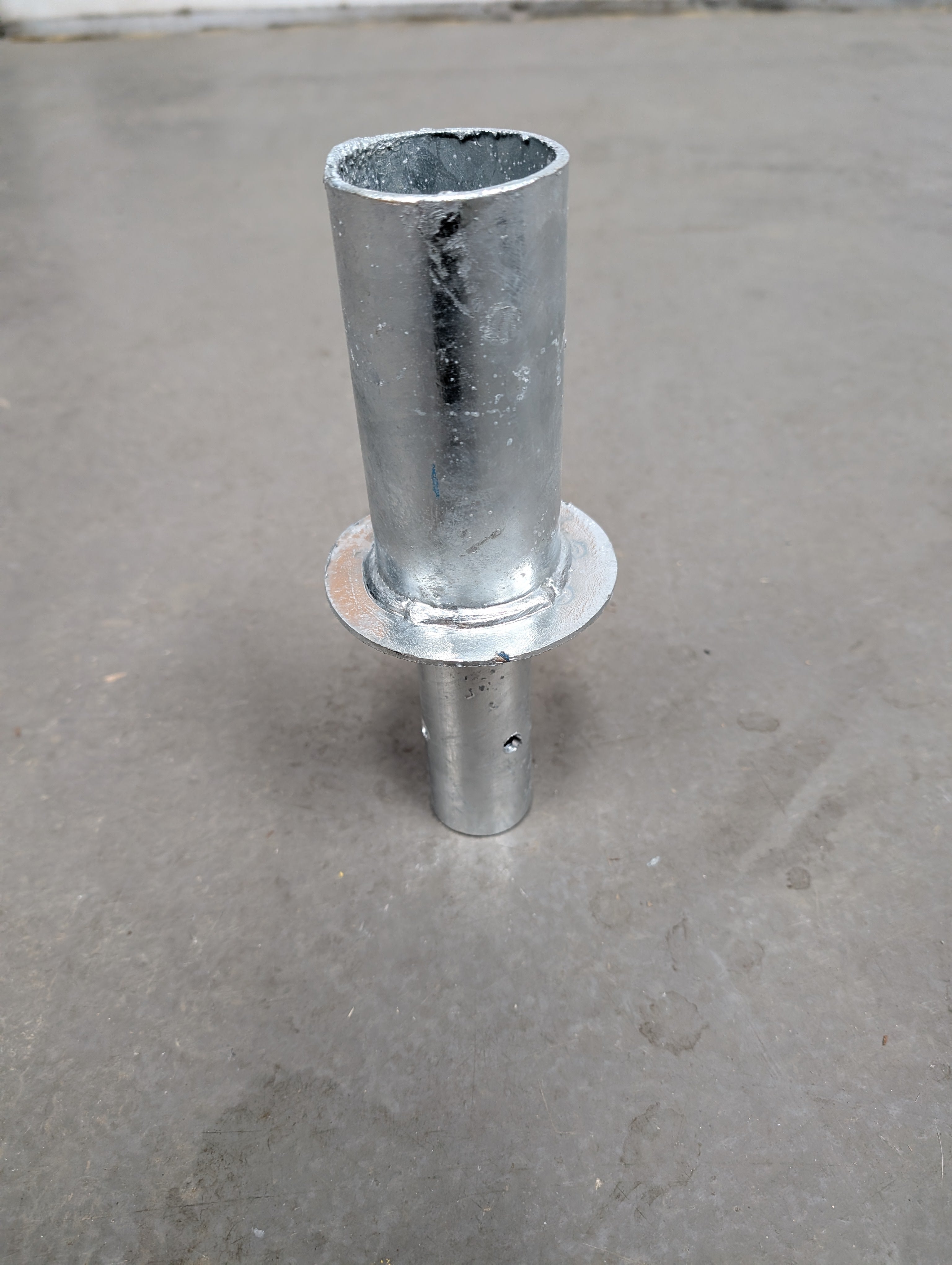

PT42-60 - Post Top Spigot Increaser/Adapter - 42mm external diameter base with grub screws, increasing to 60mm external diameter. 6 AVAILABLE

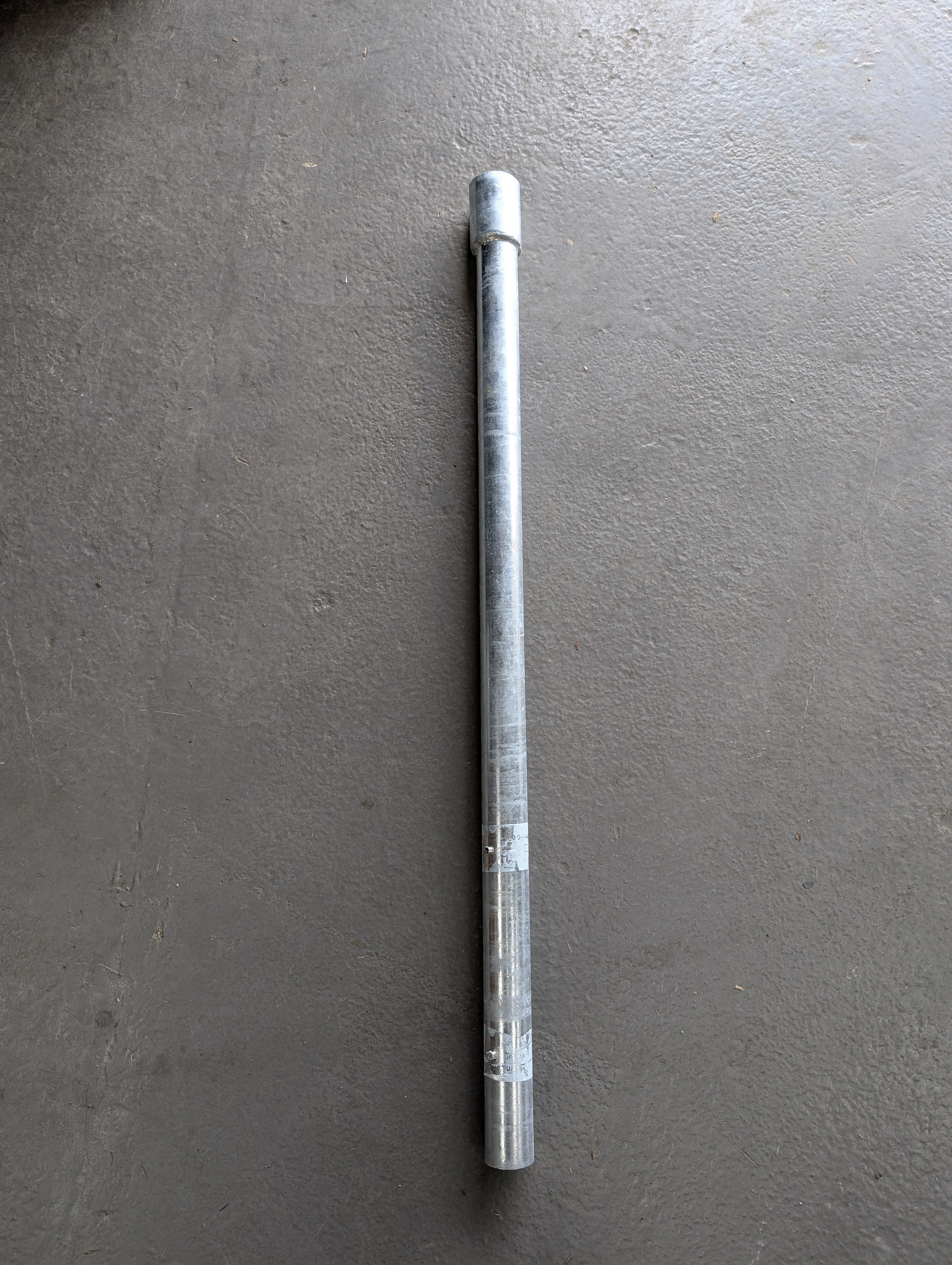

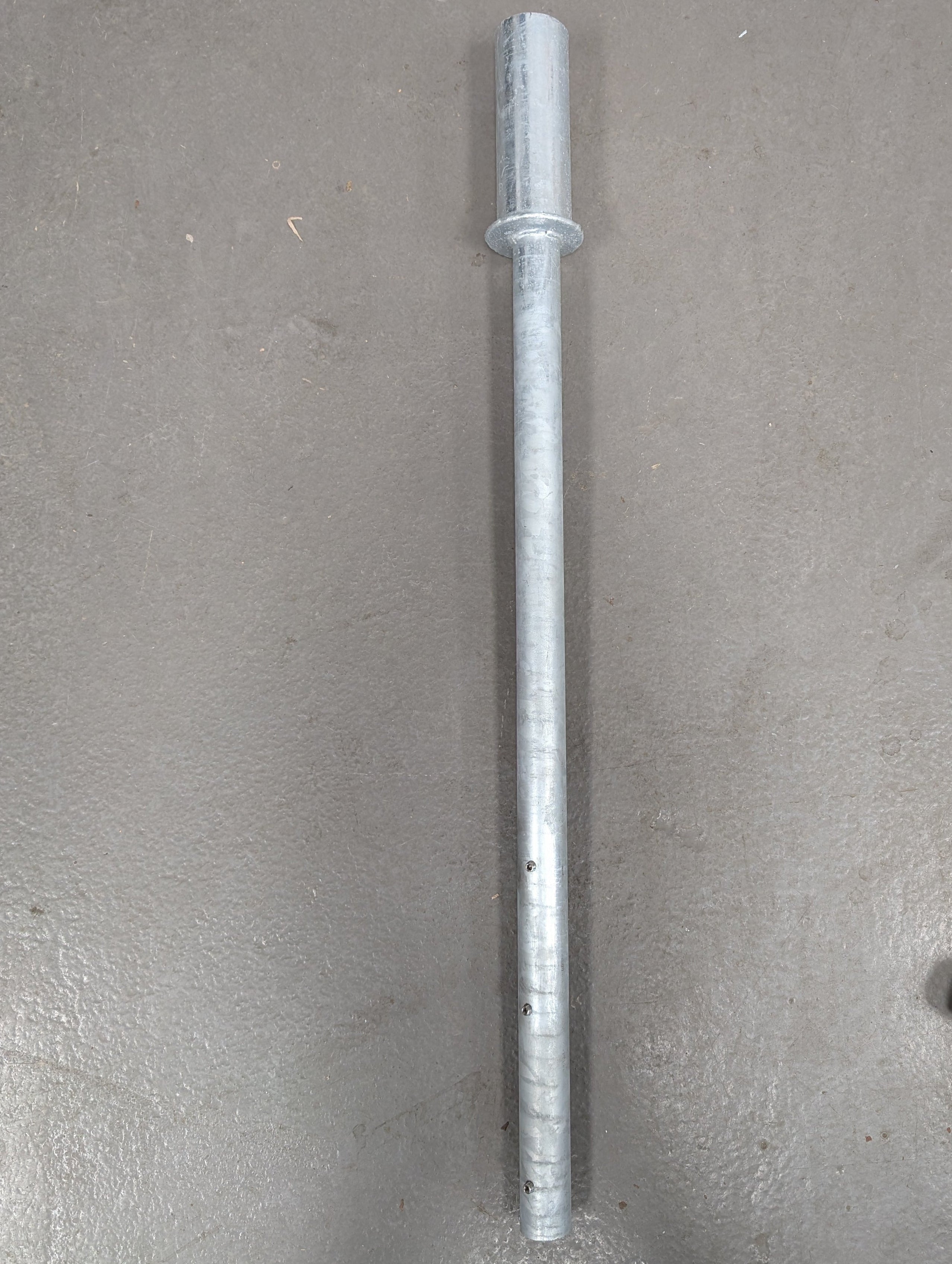

1MEXT/48-60 - 1 Metre Column Extension - 48mm external diameter base with grub screws. increasing to 60mm. 1 AVAILABLE - MORE CAN BE FABRICATED
1MEXT/48-76 - 1 Metre Column Extension - 48mm external diameter base with grub screws. increasing to 76mm. 1 AVAILABLE - MORE CAN BE FABRICATED

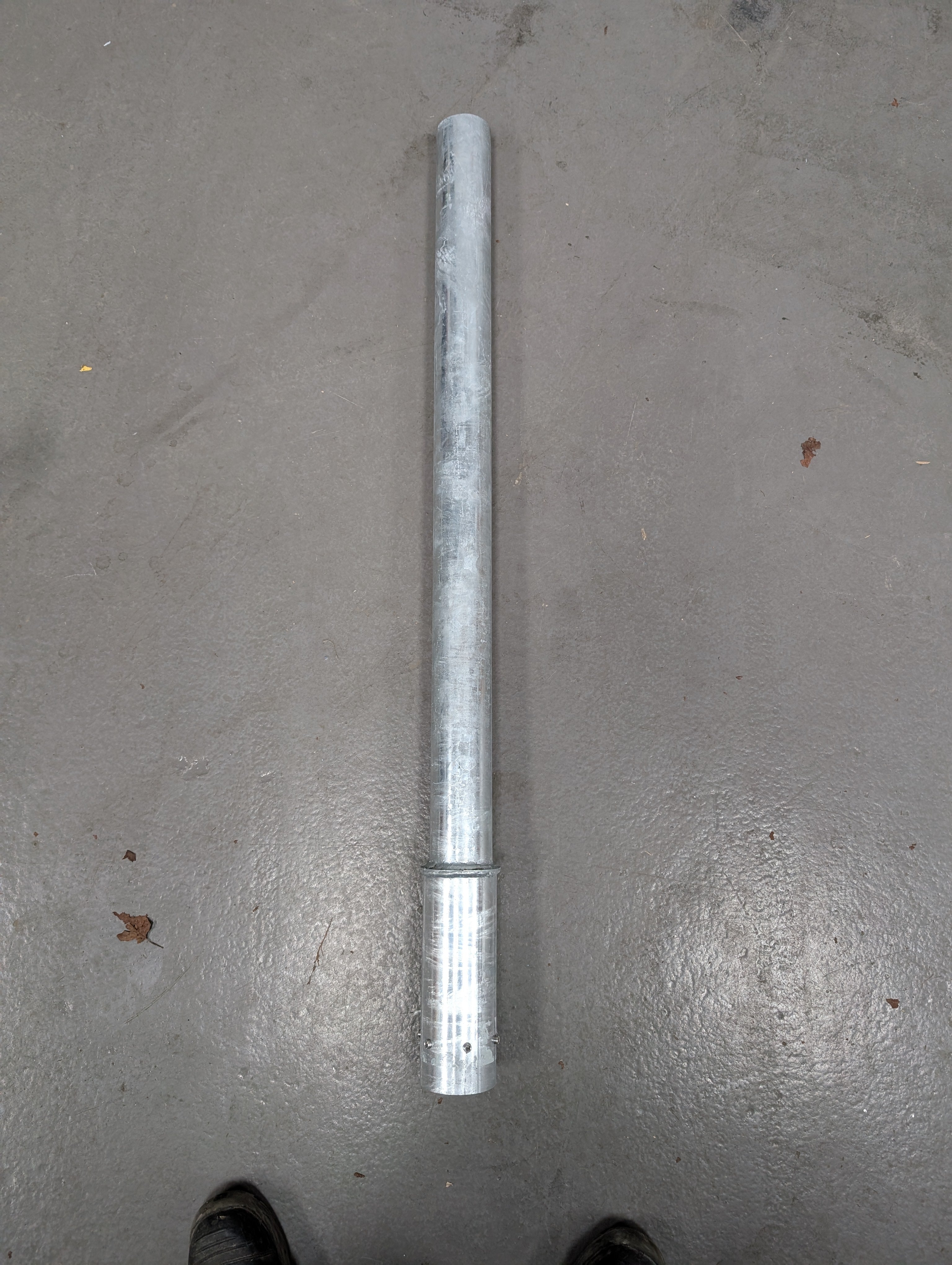

1MEXT/89-76 - 1 Metre Column Extension - 89mm external diameter base with grub screws. increasing to 76mm - Can be attached to 3m,4m or 5m columns to add on 1 metre in height. 1 AVAILABLE - MORE CAN BE FABRICATED

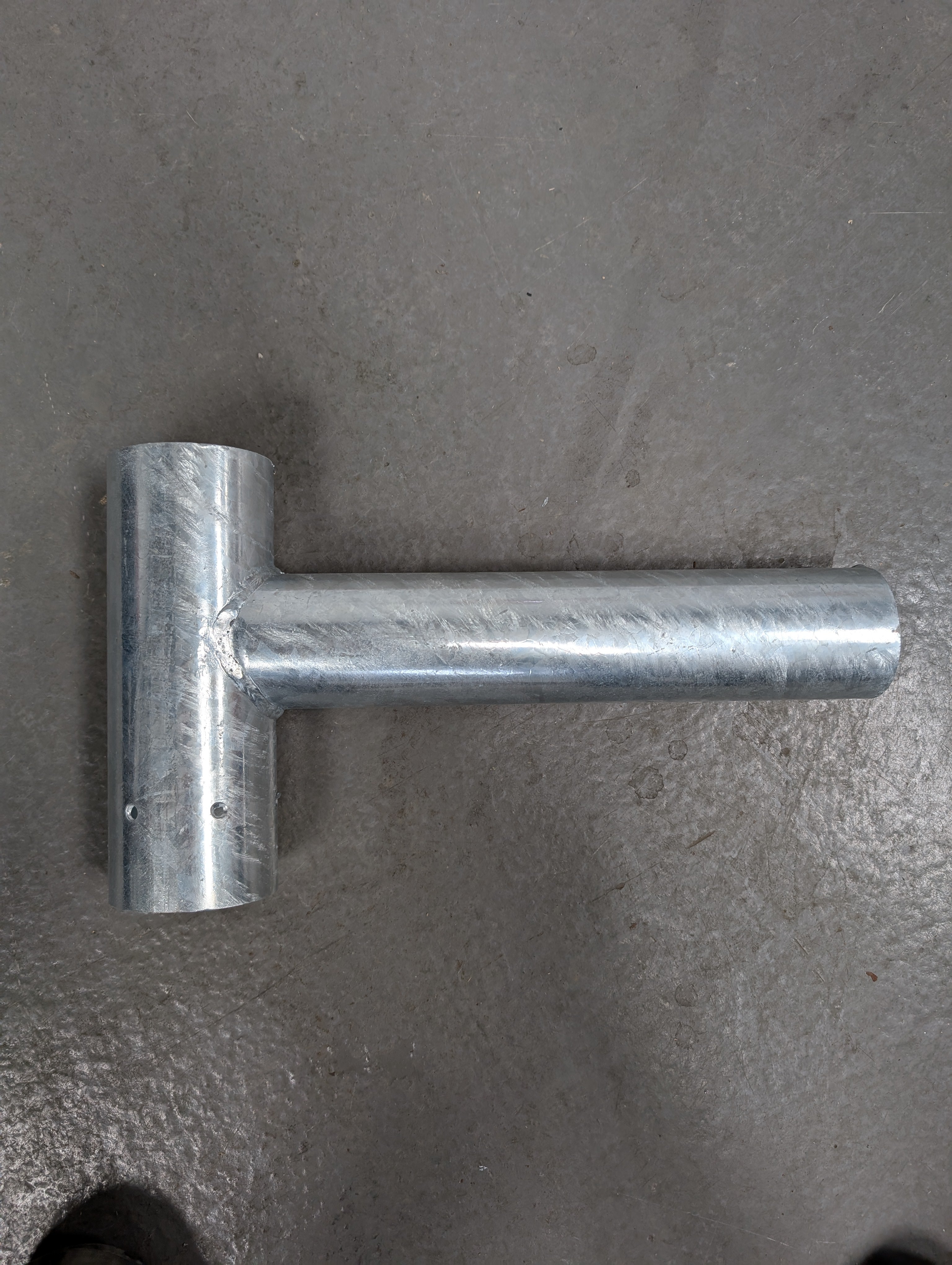

SOA76350 - Single Outreach Arm for streetlights - 76mm outreach diameter and 350mm outreach length with an 89mm collar. Suitable for 3M to 8M columns and can be used with any lantern which has a 76mm spigot. 4 AVAILABLE

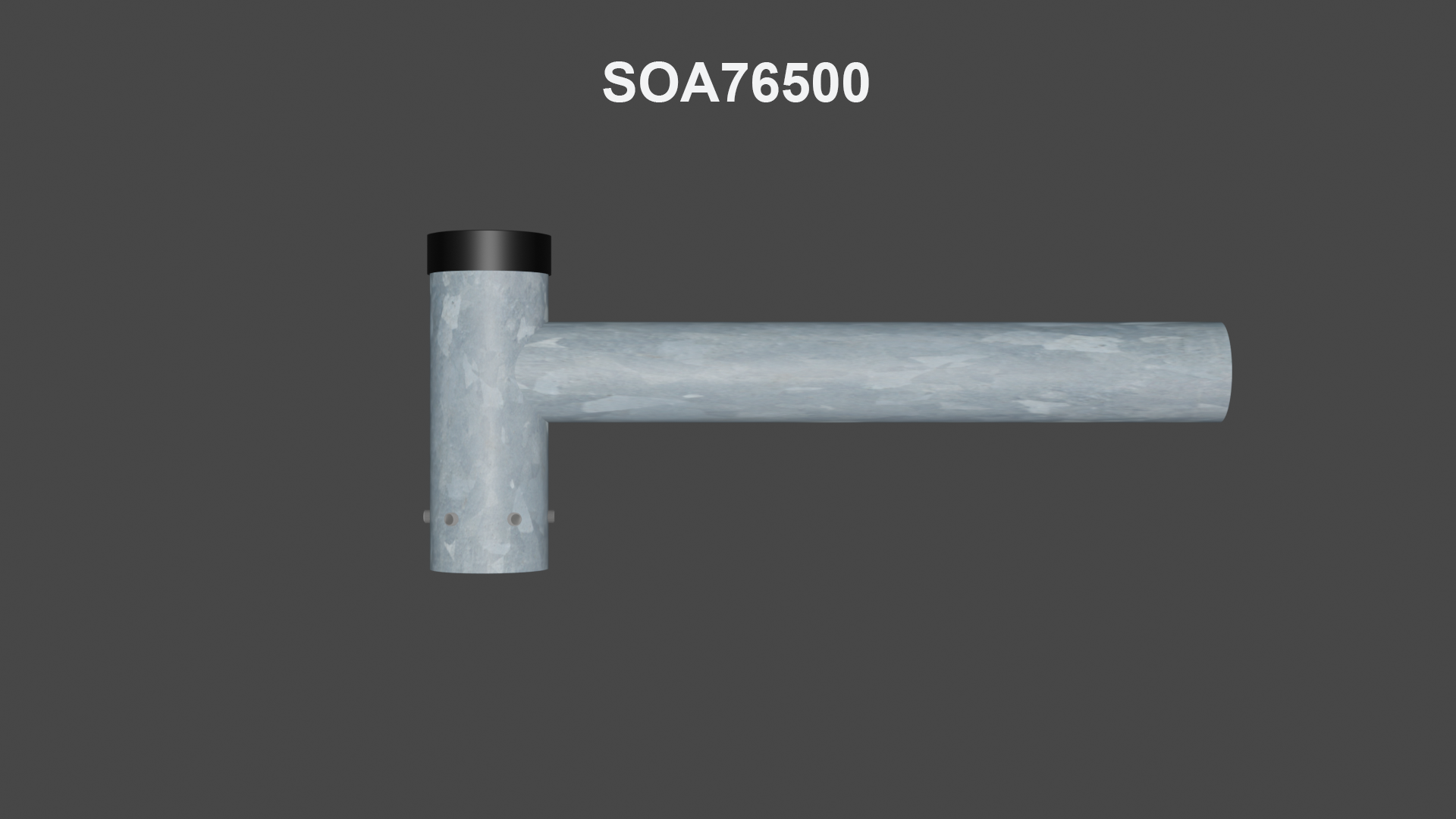

SOA76500 - Single Outreach Arm for streetlights - 76mm outreach diameter and 500mm outreach length with an 89mm collar. Suitable for 3M to 8M columns and can be used with any lantern which has a 76mm spigot. 1 AVAILABLE - TO ORDER MORE CLICK HERE

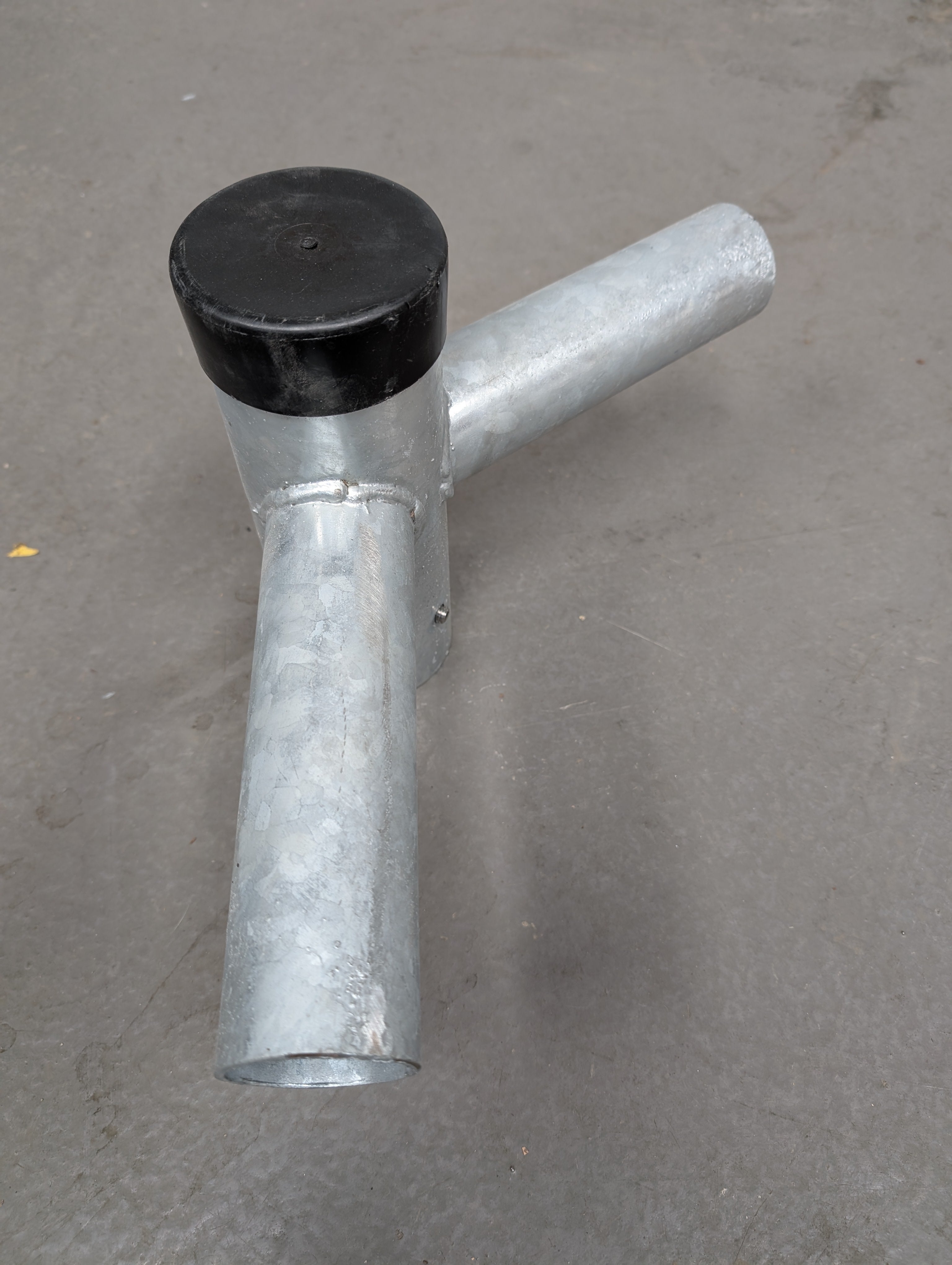

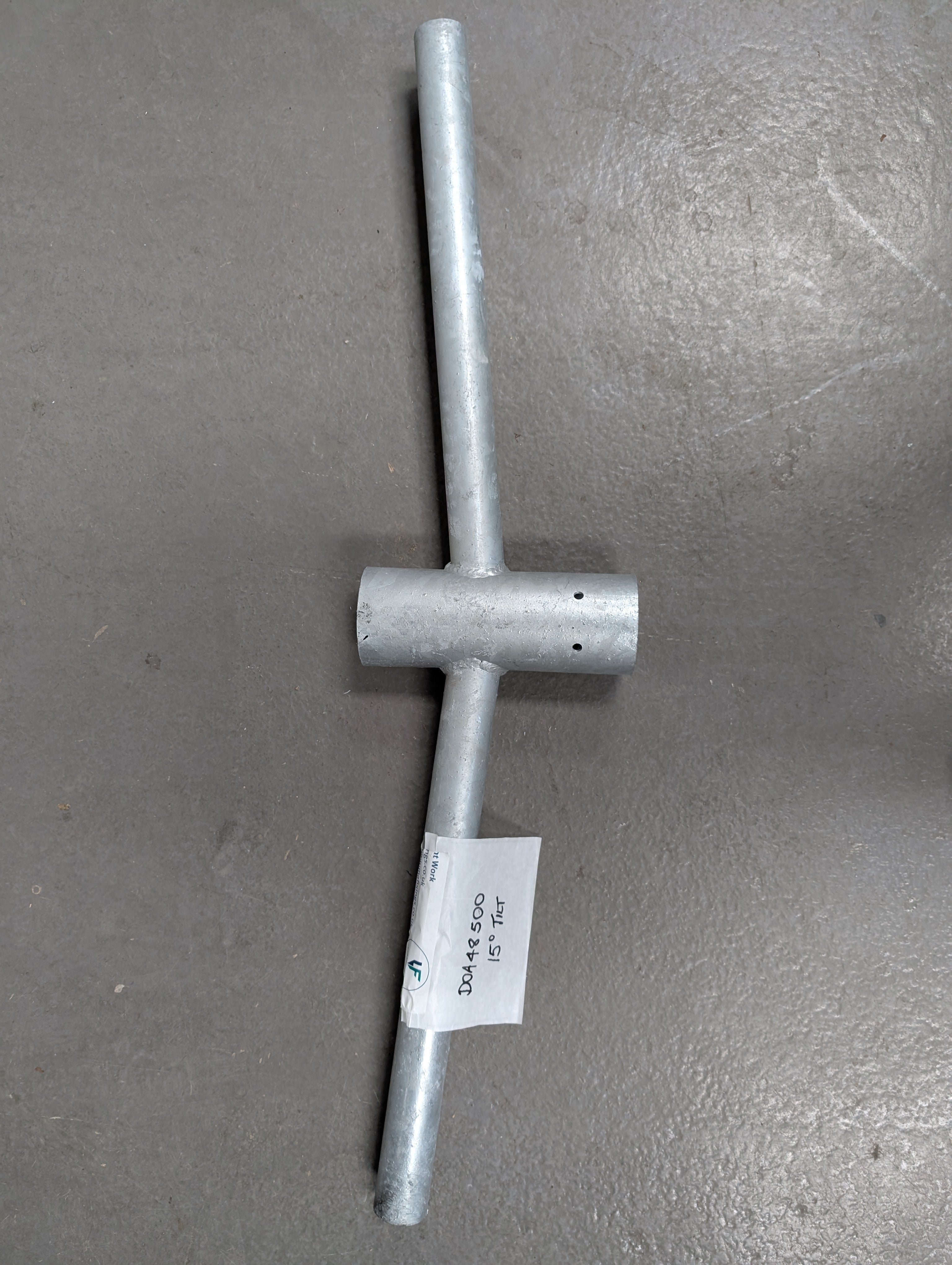

DOA48500/15° - Double Outreach Arm for streetlights - 48mm outreach diameter and 500mm outreach length with an 89mm collar. Suitable for 3M to 8M columns and can be used with any lantern which has a 48mm spigot. Generally used with all in one solar streetlights as the tilt allows water/dirt to fall off. 1 AVAILABLE - MORE CAN BE FABRICATED
DOA60200/120° - Double Outreach Arm for streetlights - 60mm outreach diameter and 200mm outreach length with an 89mm collar. Suitable for 3M to 8M columns and can be used with any lantern which has a 60mm spigot. Our normal brackets have the lights at 180° from each other, this was a cancelled special which they requested at 120°. 1 AVAILABLE - MORE CAN BE FABRICATED

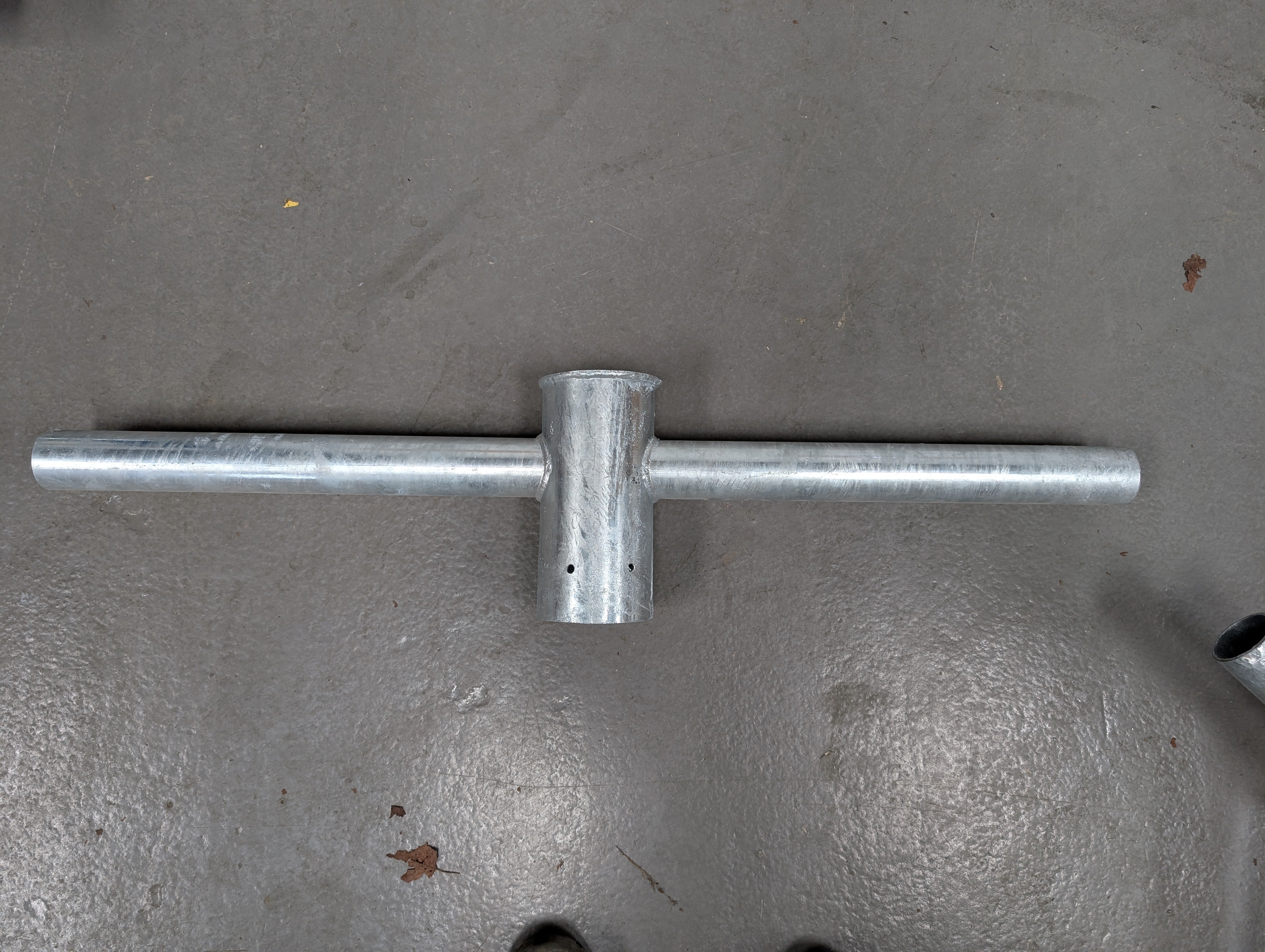

DOA60500/114 - Double Outreach Arm for streetlights - 60mm outreach diameter and 500mm outreach length with a 114mm collar. Suitable for standard 10M columns and can be used with any lantern which has a 60mm spigot. 6 AVAILABLE - TO ORDER MORE CLICK HERE

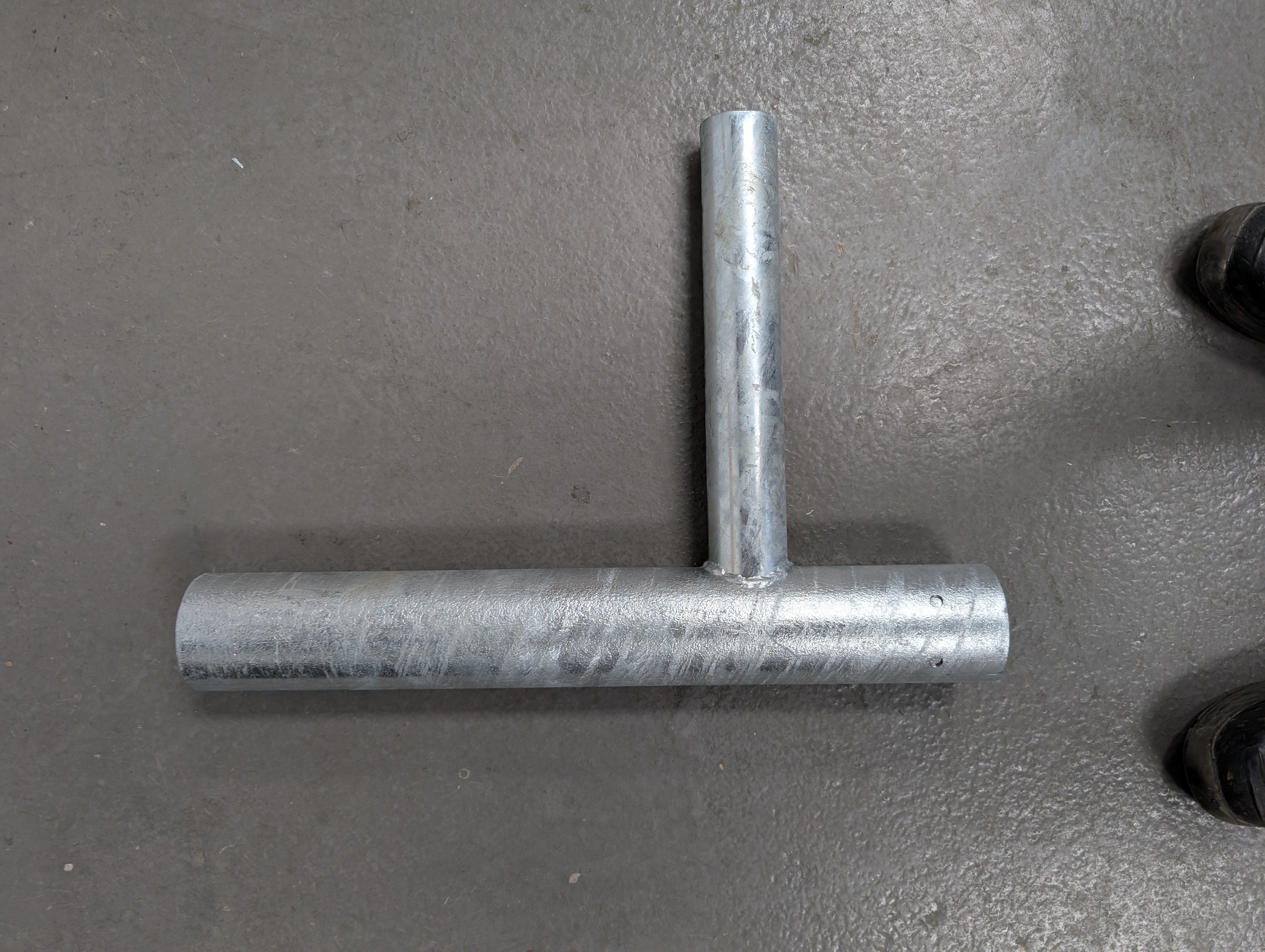

SOA60350/400MMEXT - Single Outreach Arm - This was fabricated for a split solar light where the panel sits on the top section and the light sits on the 60mm outreach. Suitable for 3M to 8M columns and can be used with any lantern which has a 60mm spigot. 1 AVAILABLE - MORE CAN BE FABRICATED

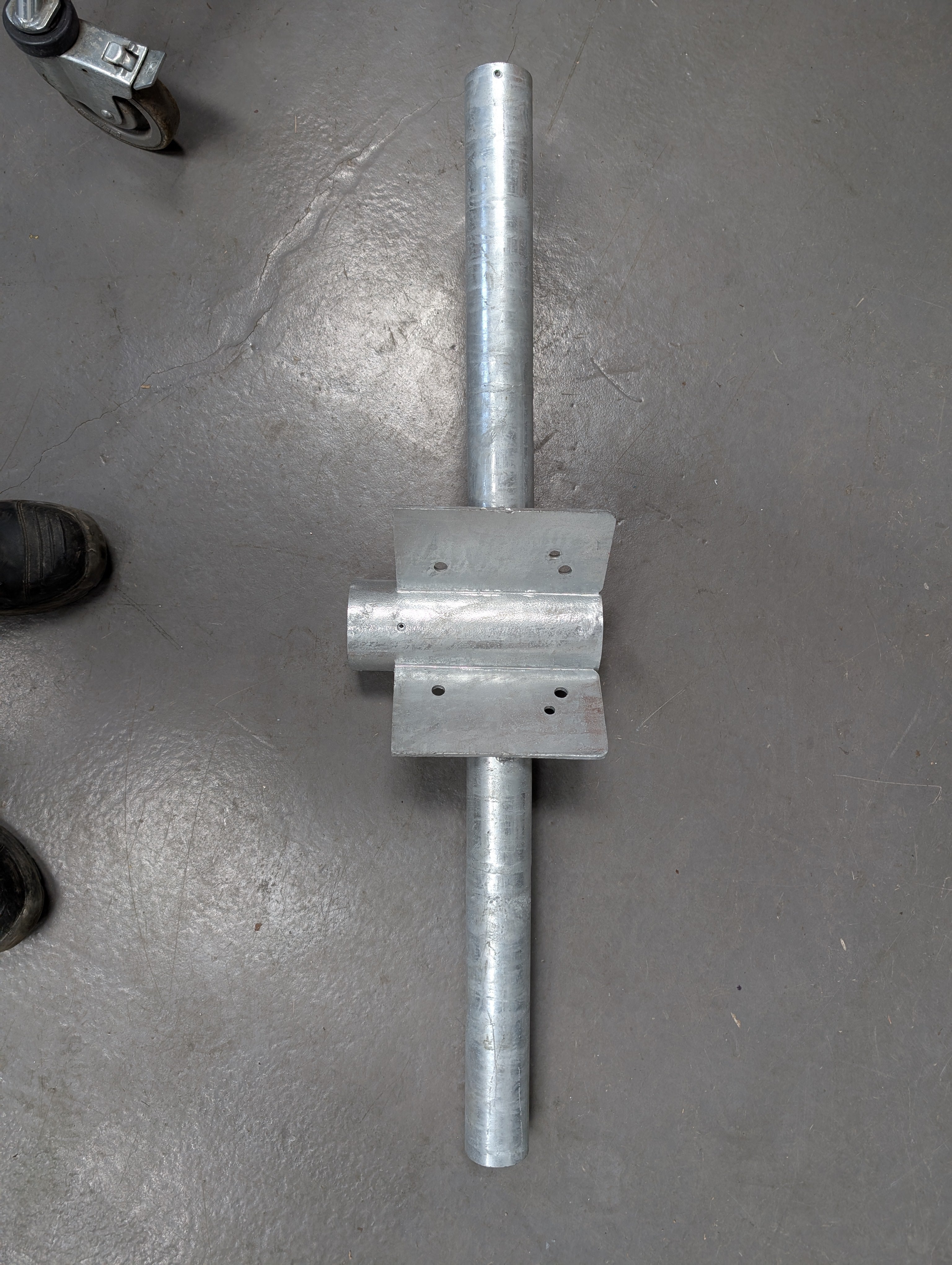

DOA60450/PLATES - Double Outreach Arm for streetlights - 60mm outreach and 450mm outreach length with an 89mm collar. This was used to fit a Hikvision solar camera during the testing process. Could be adapted to fit other products. 1 AVAILABLE

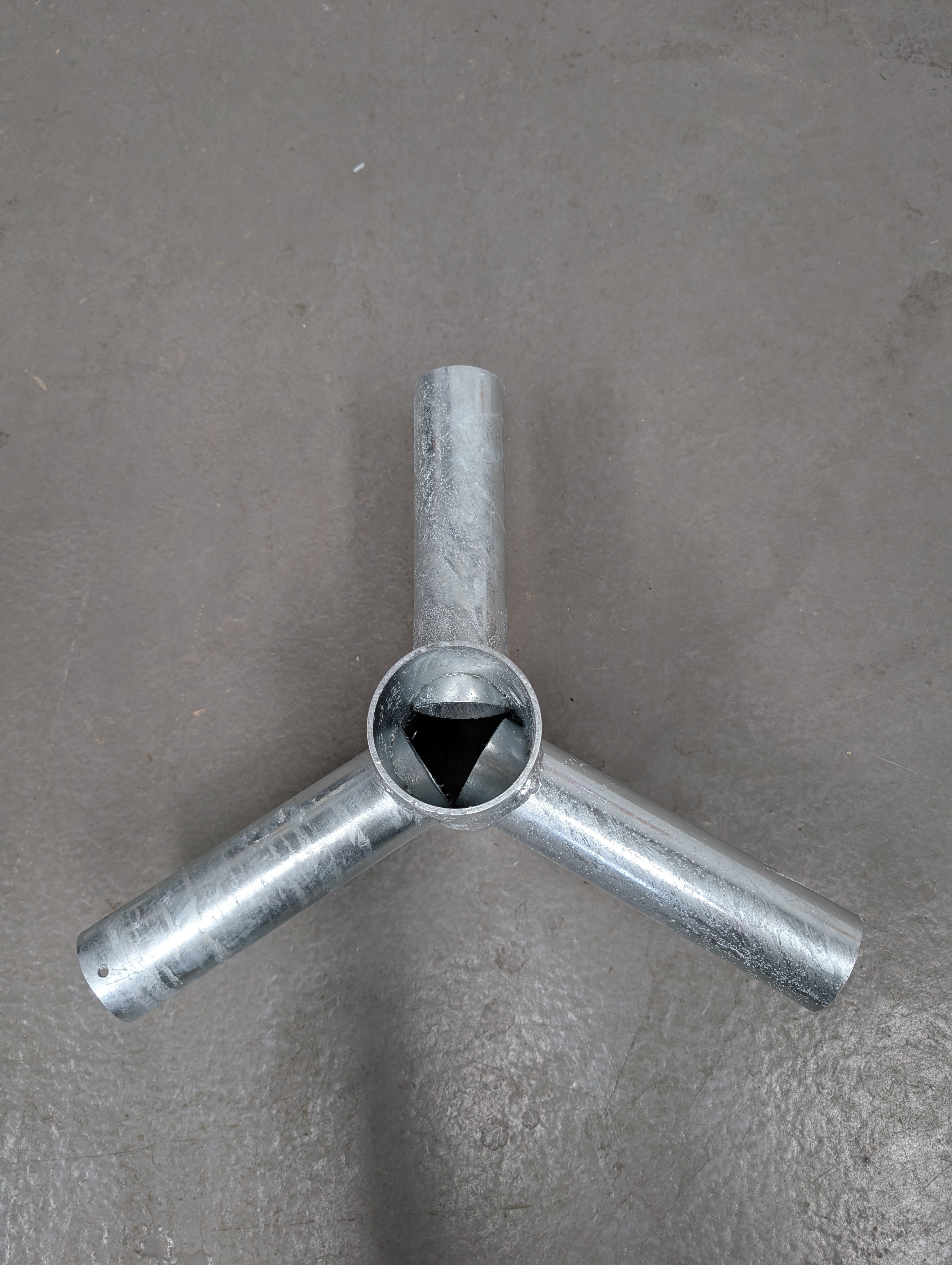

TOA60200 - Triple Outreach Arm for streetlights - 60mm outreach diameter and 200mm outreach length with an 89mm collar. Suitable for 3M to 8M columns and can be used with any lantern which has a 60mm spigot. 1 AVAILABLE - MORE CAN BE FABRICATED

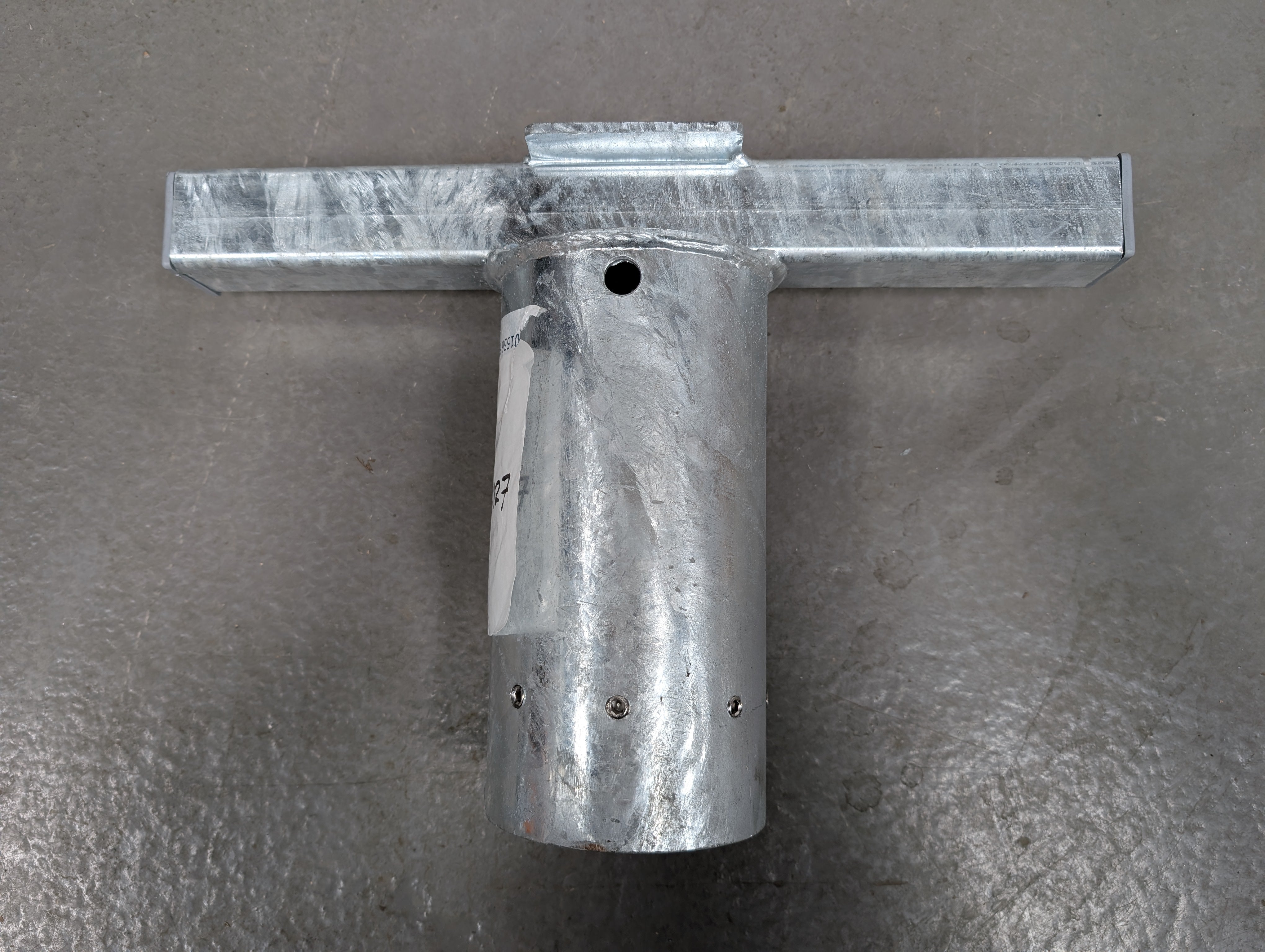

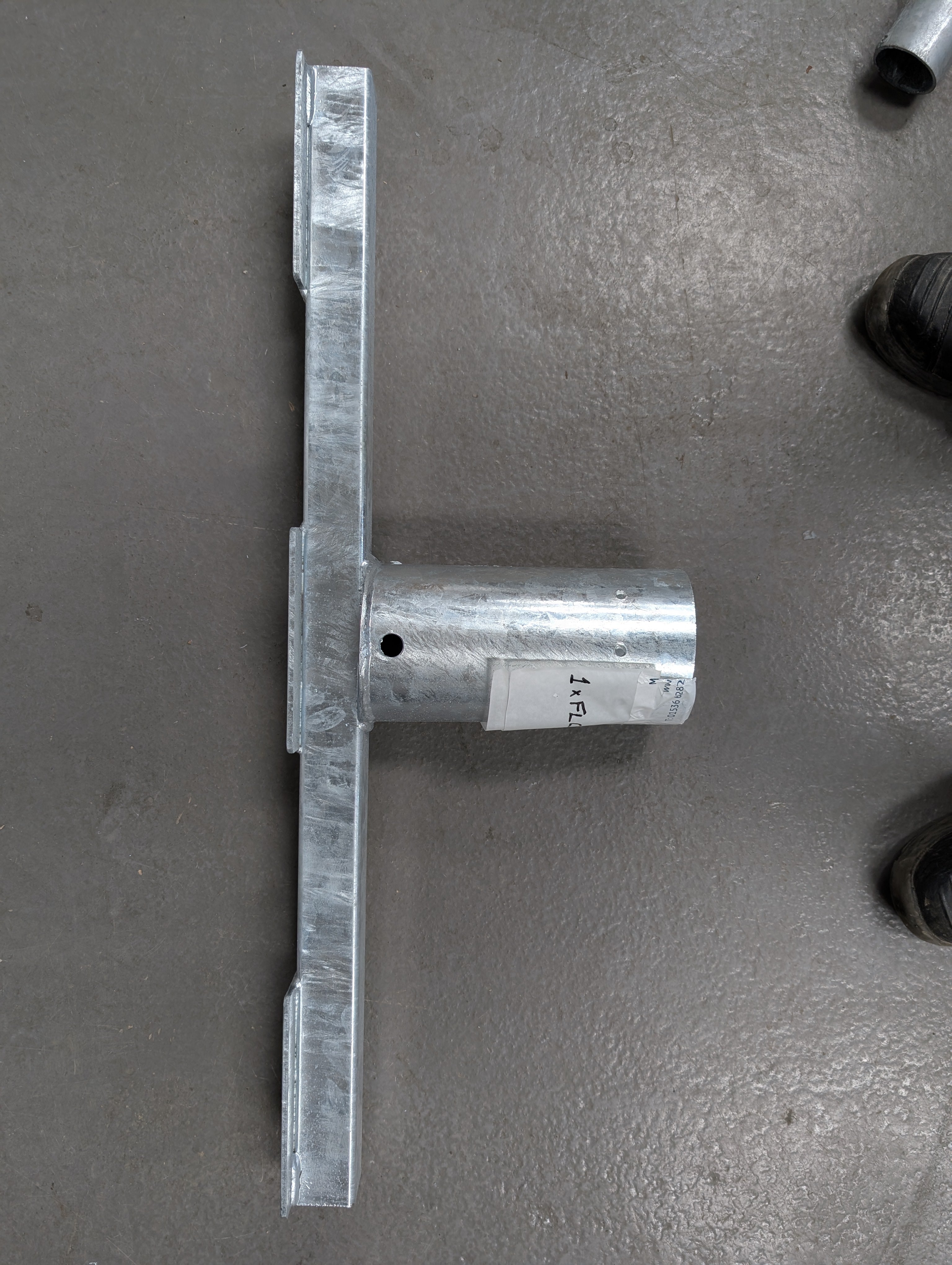

FLCB1/450/127 - Single Floodlight Heavy Duty Bracket - 50mm x 50mm box section, 450mm in length sitting on a 127mm collar. Suitable for a column with a 114mm spigot. 1 AVAILABLE - MORE CAN BE FABRICATED

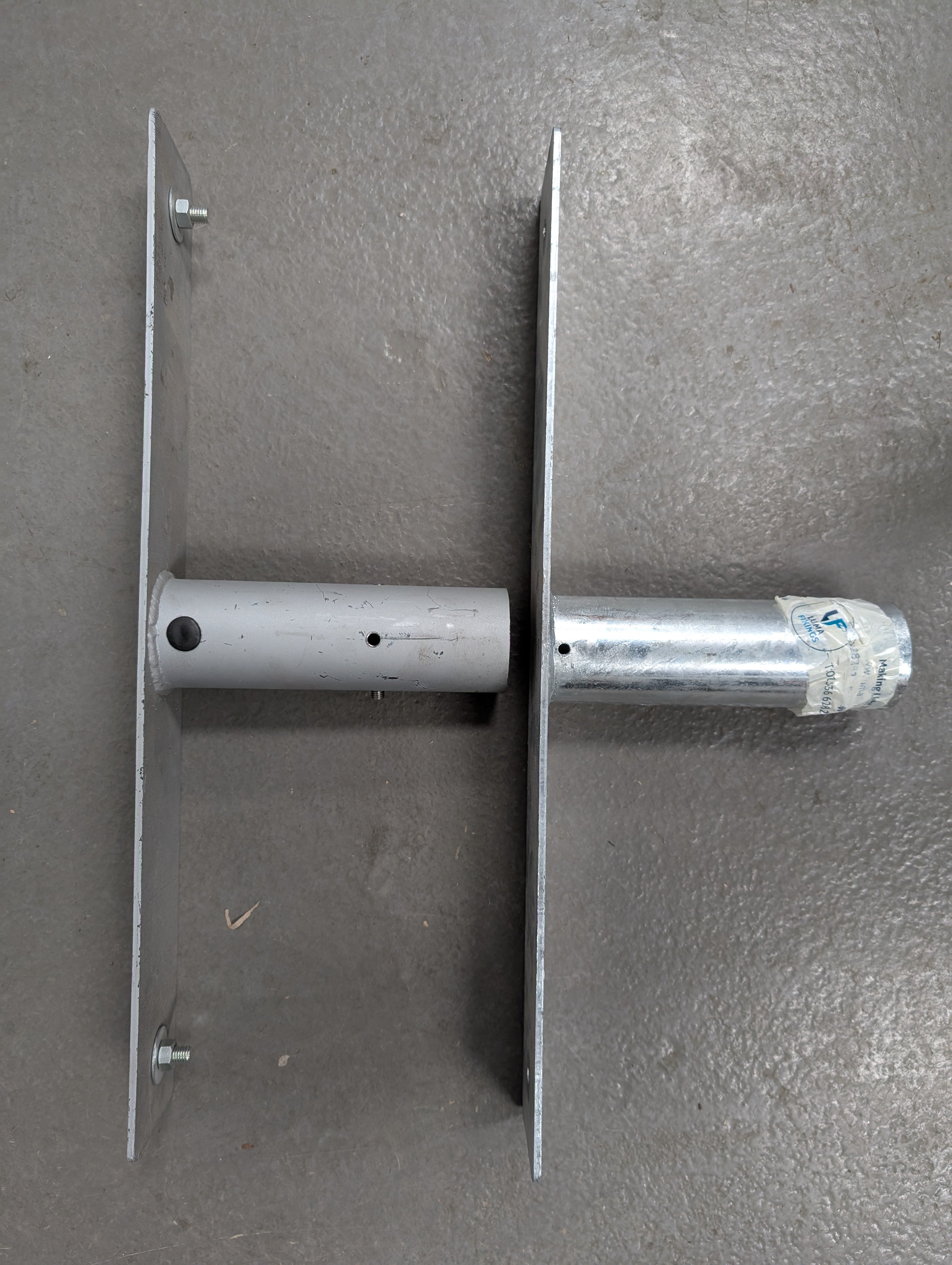

FLCB2/76 - Twin Floodlight Bracket - 5mm wall thickness plate at 700mm length sitting on an 89mm collar. Suitable for a 60mm spigot 2 AVAILABLE (Slightly different finish on each) - MORE CAN BE FABRICATED
FLCB3/900/127 - Triple Floodlight Bracket - 50mm x 50mm box section, 900mm in length sitting on a 127mm collar. Suitable for a column with a 114mm spigot. 1 AVAILABLE - MORE CAN BE FABRICATED
✅ In Stock Brackets - Despatch next working day
Key Features & Benefits:
✅ Robust Construction & Durability
Hot-dipped galvanized to BS EN ISO 1461 British standards, this bracket isn’t just durable—it’s a long-term investment. The hot-dipped galvanized steel resists rust and wear, even in coastal or high-humidity environments, ensuring compliance with safety regulations for decades.
✅ Simplified Installation = Reduced Costs
Forget time-consuming welding or custom fabrication. With pre-drilled holes and included BZP grub screws, this bracket streamlines installation, saving labour time and minimising project downtime. The outreach arm features a hollow design for discreet internal cable routing, keeping wiring protected and installations looking clean.
✅ All-Weather Reliability
The galvanized finish guarantees structural integrity for years of maintenance-free service. Hollow brackets will come with a weatherproof cap.
Technical Specifications:
• Material: Mild Steel S325
• Included Components: BZP Bolts, BZP grub screws, weatherproof cap
• Finish: Hot-dipped Galvanized to match existing columns (BS EN ISO 1461 compliant)
Why Choose This Bracket?
Engineered for safety, longevity, and hassle-free maintenance, this bracket eliminates the need for complex welding or custom fittings. Its BS EN ISO 1461-certified galvanized construction ensures decades of corrosion resistance, even in coastal or industrial environments, while the integrated cable routing keeps installations tidy and compliant.
