Lighting Column Doors
Replacement Lighting Column Doors
Galvanized or RAL9005 Black | 3-6m & 8-10m Column Sizes | BS EN ISO Compliant
Ensure long-term functionality and safety for your lighting infrastructure with these precision-engineered replacement doors. Available for 3-6m and 8-10m columns in both hot-dipped galvanized and black powder-coated (RAL9005) finishes, these overlap doors restore structural integrity while enhancing corrosion resistance in harsh environments.
Key Features & Benefits:
✅ Column-Specific Sizing

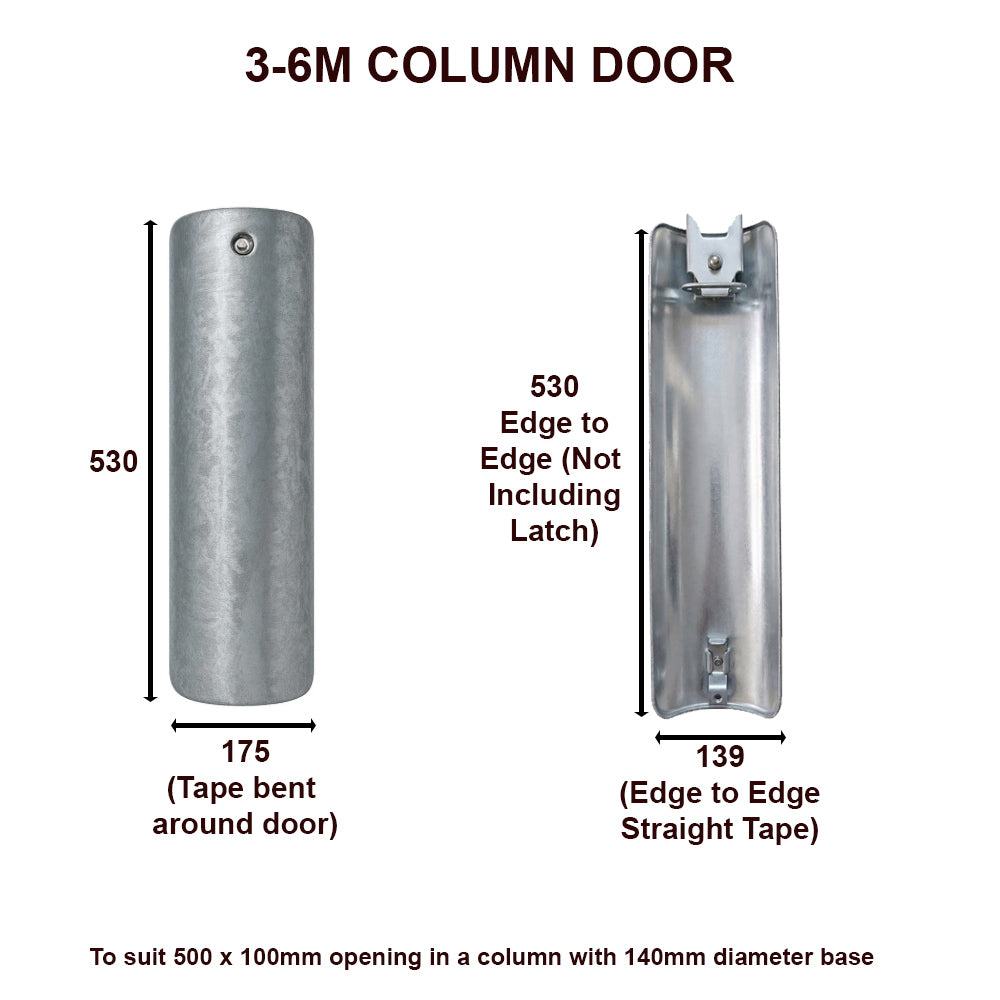

• For 3-6m Columns:
• Fits 500 × 100mm openings
• Compatible with 140mm diameter bases
• Standard for 3m/4m/5m/6m columns
• For 8-10M Columns:
• Fits 600 × 115mm openings (square-top design)
• Matches 168mm diameter bases
• Designed for 8m/10m columns
✅ Durable Finishing Options
• Hot-Dipped Galvanized:
• BS EN ISO 1461 compliant
• 85µm coating thickness for 25+ years of rust protection
• Powder-Coated RAL9005 (Jet Black):
• UV-resistant finish maintains colour integrity
• Ideal for urban/architectural projects requiring aesthetic cohesion
✅ Universal Compatibility
• Overlap design ensures seamless fit on existing columns
• Reinforced hinges withstand repeated access cycles
Technical Specifications
| Model | 3-6m Column Door | 8-10m Column Door |
|---|---|---|
| Opening Size | 500 × 100mm | 600 × 115mm |
| Base Diameter | 140mm | 168mm |
| Material | 3mm Mild Steel | 3mm Mild Steel |
| Finish Options | Galvanized / RAL9005 | Galvanized / RAL9005 |
| Weight | 1.0kg | 2.3kg |
| Standards | BS EN ISO 1461 (Galv) | BS EN ISO 1461 (Galv) |
Why Choose These Doors?
✔️ Cost-Effective Maintenance: Extend column lifespan without full replacements
✔️ Quick Installation: Bolt-on design – no welding required
✔️ Theft Deterrence: Compatible with anti-vandal locks - *Compatible Column Key can be found here*
✔️ Aesthetic Flexibility: Match existing fixtures with RAL9005 or galvanized styling
Customization Options
• Custom Sizes: Bespoke dimensions upon request
• Special Finishes: Other RAL colors for powder-coated versions
Compliance & Warranty
Manufactured to UK lighting column standards (BS EN 40) with a 5-year finish warranty against corrosion.
Need help identifying your column specifications?
Call 01536 264064 for technical support.
