Fast Column Foundation/Marquee Blocks - Precast Concrete Block
Fast Column Foundation - Precast Concrete Block
This concrete block is designed to be securely embedded into the ground when used for lighting columns, providing a stable and durable foundation for installing a flange-plated lighting column up to 6 metres in height. Engineered to support the weight and structural integrity of tall lighting columns, the block is constructed with high-strength concrete, ensuring long-lasting performance in various outdoor environments.
**LEAD TIME IS 1 TO 2 WORKING DAYS TO MOST UK POSTCODES. COLLECTION POSSIBLE, CONTACT US TO FIND OUT MORE INFORMATION**

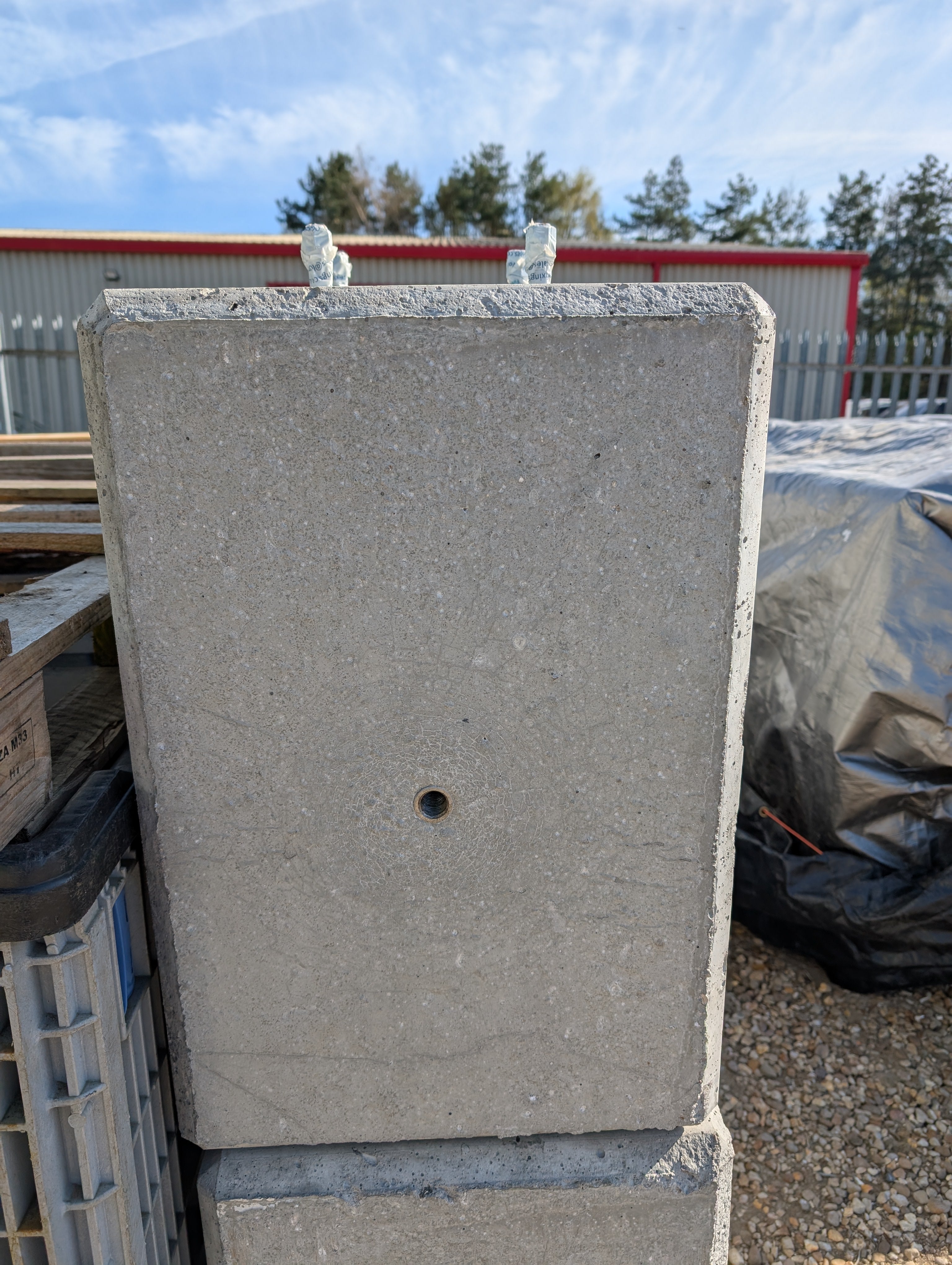

For Marquees, we can provide M20 Eye Bolts which screw into the threaded hole on the side. The block wouldn't need to be lowered into the ground for this purpose.

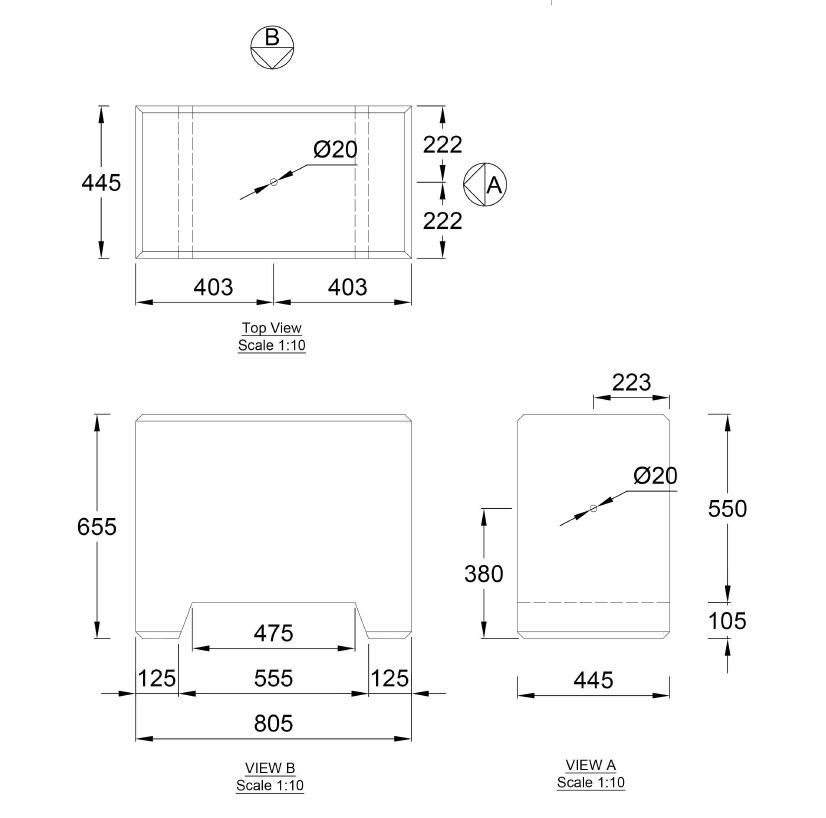

Technical Specifications:
• 16mm high tensile rod at 200mm centres set into bespoke steel frame inside block

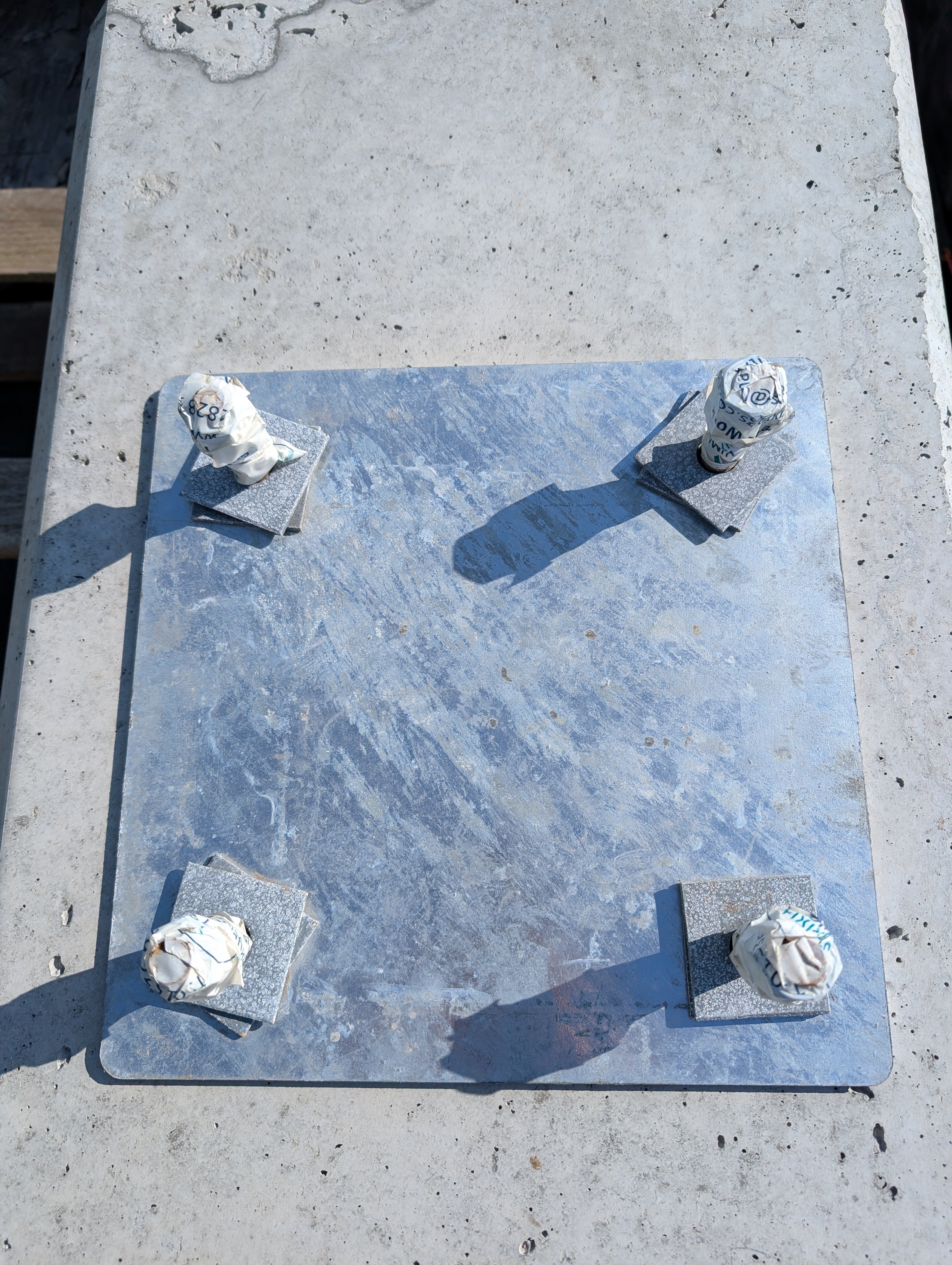

• Galvanised steel plate to level flange plate.
• Fixings provided for column (Column can be bought from ourselves here)

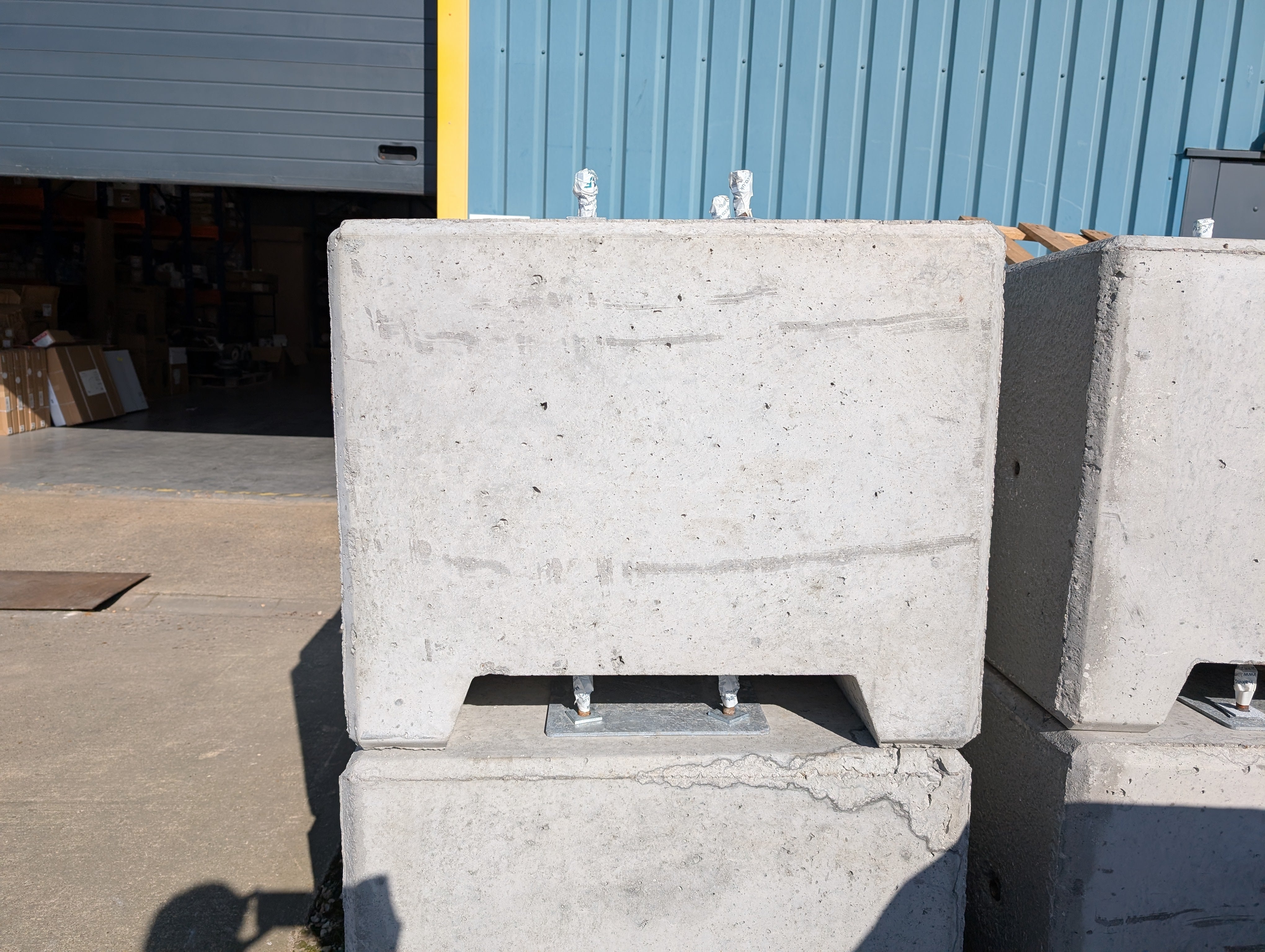

• Can be moved with forklift/telehandler using the slot at the base and also using lifting anchor point on side
Downloads:
