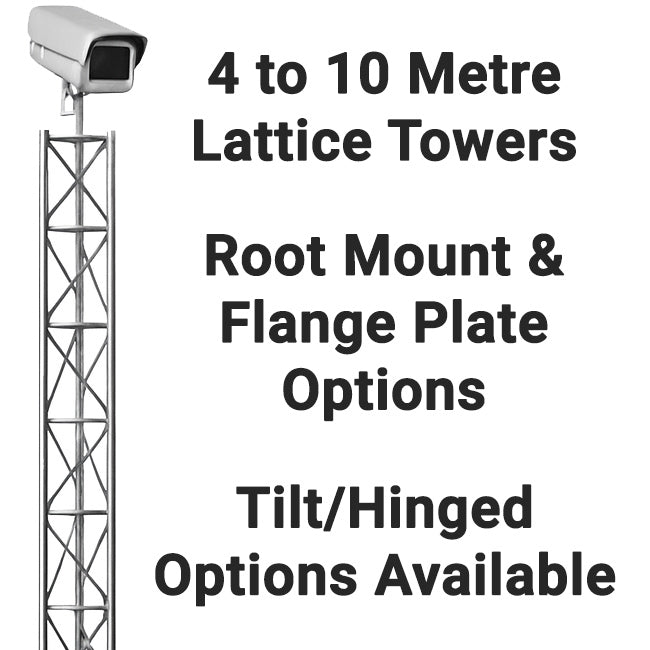

CCTV Lattice Towers - Root Mounted and Flange Plated
CCTV Lattice Towers in either Root Mount or Flange Plate Options
This solution offers a cost-effective way to achieve the desired camera height, with off-the-shelf options available up to 10 meters. The rigid triangular lattice structure ensures excellent stability, making it reliable in various conditions. Its modular construction allows for easy transportation and quick erection, while built-in climbing rungs facilitate the maintenance of equipment. Additionally, the hot-dipped galvanized finish provides maximum weather protection and reduces maintenance needs. Custom modifications are available, including towers tailored to the customer's specific requirements, with bespoke items capable of reaching heights in excess of 20 meters.
**LEAD TIME IS 1 TO 2 WEEKS TO MOST UK POSTCODES. COLLECTION MAY BE POSSIBLE, CONTACT US TO FIND OUT MORE INFORMATION**
We can also offer other column types such as hinged, cabinet based columns and many more. Contact us for more information. Other heights are also available but not kept in stock. Lead time for these requests is around 3 to 5 weeks.
Key Features & Benefits:
✅ Flexible Mounting Options
Choose between Root Mount for direct burial stability or Flange Plate for bolt-down installations.
✅ Robust, Future-Proof Build
Hot-dipped galvanized to BS EN ISO 1461:2009 standards, this column resists corrosion, rust, and UV degradation, even in coastal or high-humidity settings.
✅ Seamless Customisation
Customise the column to your project’s needs:
• Finishes: Standard Hot Dipped Galvanized. Any RAL colour (upon request).
✅ Manufactured to multiple standards
• Structural Steelwork: BS EN 10210-1:1994, BS EN 10210-2:1997
• General Steelwork: BS1449:1991, BS1387:1985, BS EN 10025:1993
• Welding Procedures: Comply with BS EN 1011-2:2001
• Fasteners: Grade 8.8 BS3692:2001, BS4190:2001, DIN93 I, DIN934
• Design Wind Loading: In accordance with CP3 chapter V Pt 2 & BS 6399 Pt 2:1997
Technical Specifications:
• Standard pan and tilt fixing of 101.6 PCD.
• Fixings included for telemetry receiver.
• Built in cable entry and exit points.
• Two metre sectional construction.
• Equipment loading of up to 25kg.
• Buried root or flange mounted versions available.
• Standard heights available from 4 to 10 metres.
• Compatible with adaptors, accessories and anticlimbs.
Customisation Options Available!
Need a specific RAL colour? Contact our Sales Team at 01536 264064 or enquiries@wydels.co.uk to discuss bespoke solutions.
