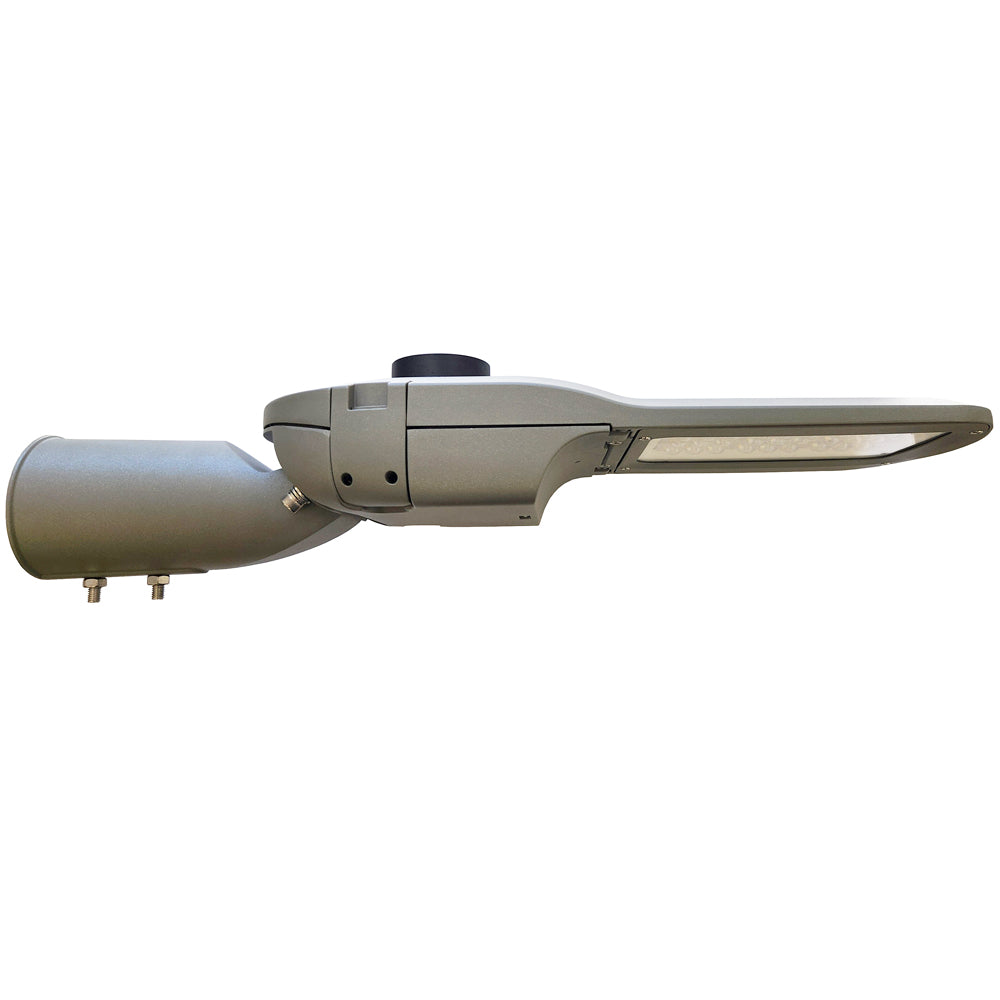

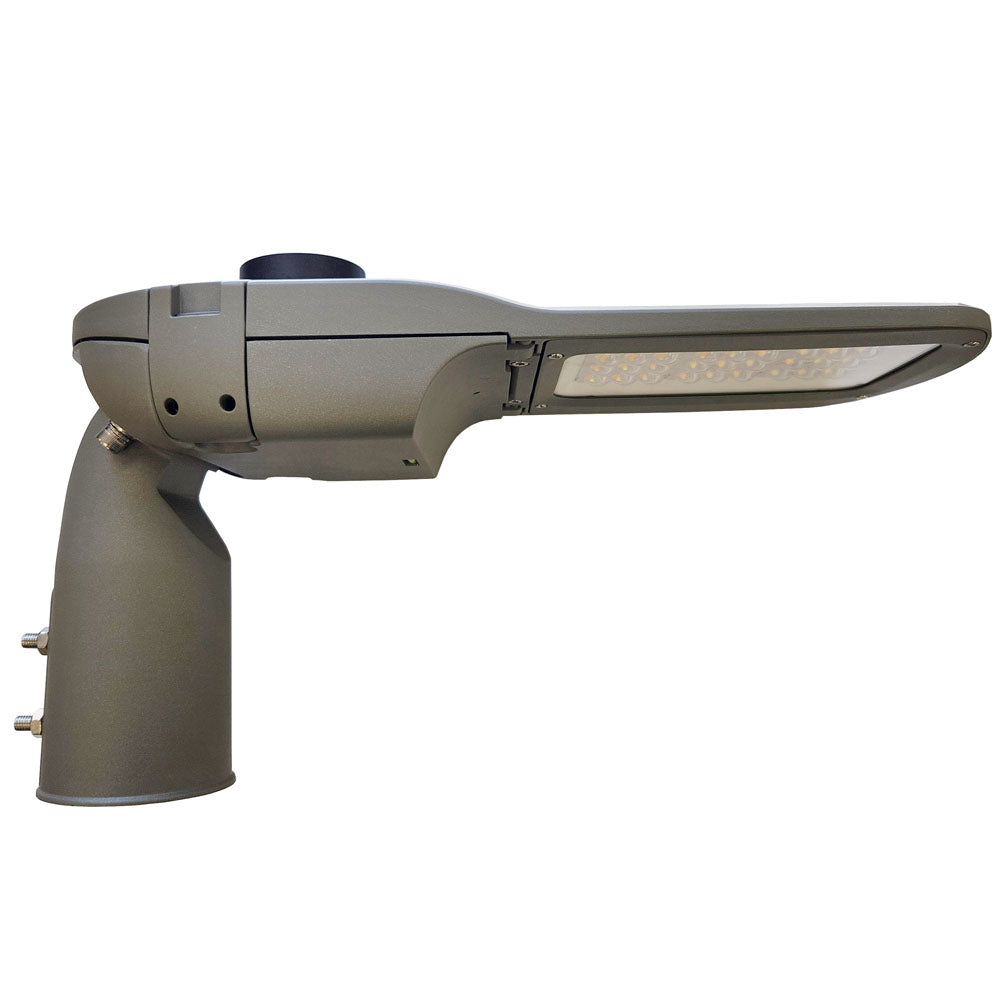

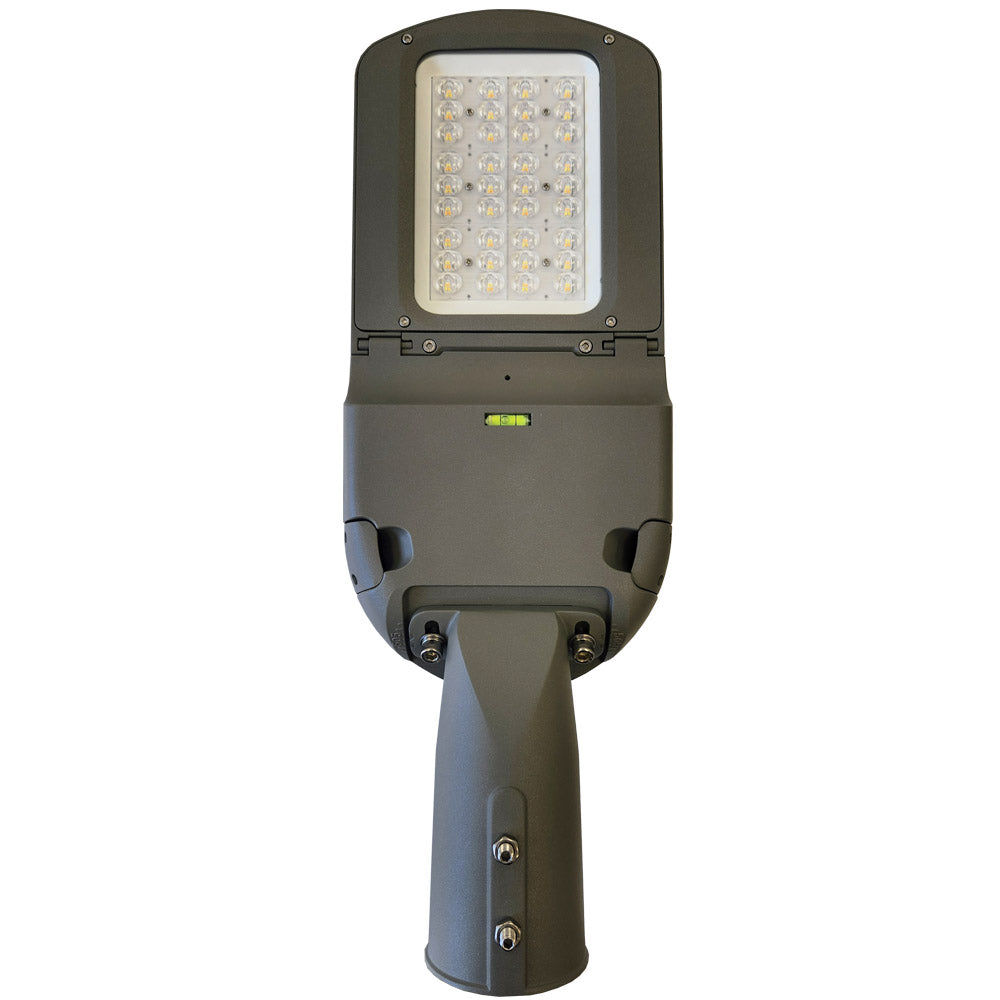

20W to 100W POLARIS Wattage & Colour Selectable LED Street Lantern IP66

20W–100W POLARIS LED Street Lantern with Selectable Wattage & CCT

The POLARIS LED Street Lantern is a highly versatile commercial and industrial exterior luminaire combining selectable wattage, adjustable colour temperature and photocell-ready operation within a robust IP66 housing.

Available across two body sizes, the POLARIS range provides selectable outputs from 20W to 100W, allowing the required power and light output to be configured on site without changing the luminaire.

Each lantern is also colour-temperature selectable between 3000K, 4000K and 5000K, providing flexibility for different environments and project requirements.

A 60° × 120° asymmetric optical distribution directs useful light forward from the lighting column, making the POLARIS particularly suitable for car parks, access roads, industrial estates, private roads, commercial premises and general exterior area lighting.

Key Features

Wattage selectable from 20W to 100W
Two body sizes covering 20W / 40W / 60W and 80W / 100W
3000K / 4000K / 5000K CCT selectable
Up to 15,000 lumens at 4000K
Published efficacy approximately 150lm/W
60° × 120° asymmetric road and area-lighting optic
IP66 ingress protection
IK08 impact resistance
Marine-grade die-cast aluminium construction
Tempered glass optical cover
NEMA socket pre-installed
Available with or without NEMA photocell
Shorting cap supplied where photocell operation is not required
Hinged design with tool-free access for maintenance
76mm column entry
Operating temperature from -20°C to +50°C
96,000-hour rated life
Grey finish as standard

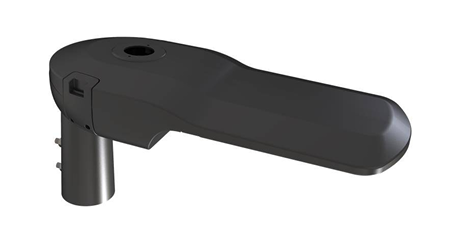

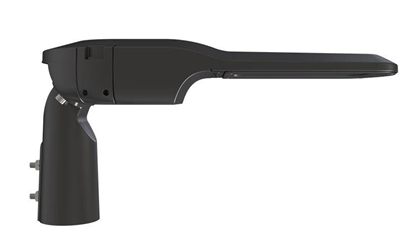

Black finish also available
UKCA, CE and RoHS compliant
7-year warranty
Free professional lighting-design support available from Wydels

The current POLARIS range is offered in two selectable-output versions: POLARIS I at 20W/40W/60W and POLARIS II at 80W/100W.

Wattage-Selectable Models

POLARIS I – 20W / 40W / 60W

The POLARIS I allows three different power settings to be selected within the same lantern.

At 4000K:

20W – 3,300 lumens
40W – 6,000 lumens
60W – 9,100 lumens

This makes the POLARIS I particularly suitable for lower mounting heights, pathways, smaller car parks, access roads and general commercial exterior lighting.

POLARIS II – 80W / 100W

The larger POLARIS II provides two selectable output settings for applications requiring higher illumination levels or greater mounting heights.

At 4000K:

80W – 11,500 lumens
100W – 15,000 lumens

The selectable wattages and published 4000K outputs are those currently specified for the POLARIS range. Wydels Electrical Wholesalers

CCT Selectable – 3000K, 4000K & 5000K

Each POLARIS lantern allows the colour temperature to be selected on site.

3000K Warm White

3000K provides a warmer night-time appearance and can be particularly useful for residential surroundings, amenity areas and environmentally sensitive applications where a warmer colour temperature is preferred.

4000K Cool White

4000K provides a balanced white appearance and is suitable for the majority of commercial car parks, access roads, industrial estates and general exterior-lighting projects.

5000K Daylight White

5000K provides a cooler, brighter appearance for industrial, security and commercial applications where a crisp daylight-style light is preferred.

The selectable 3000K, 4000K and 5000K options allow the same lantern to be used across projects with different environmental and operational requirements. Wydels Electrical Wholesalers

60° × 120° Asymmetric Optic

The POLARIS uses a 60° × 120° asymmetric optical distribution designed to project useful light forward from the mounting position.

This makes it particularly suitable for lighting columns positioned along the perimeter of roads, car parks, pathways and commercial sites.

The asymmetric distribution helps direct more of the available light towards the target area rather than producing an equal amount of light behind the lantern.

Mounting height, column spacing, wattage and lantern position should all be considered when designing the lighting scheme.

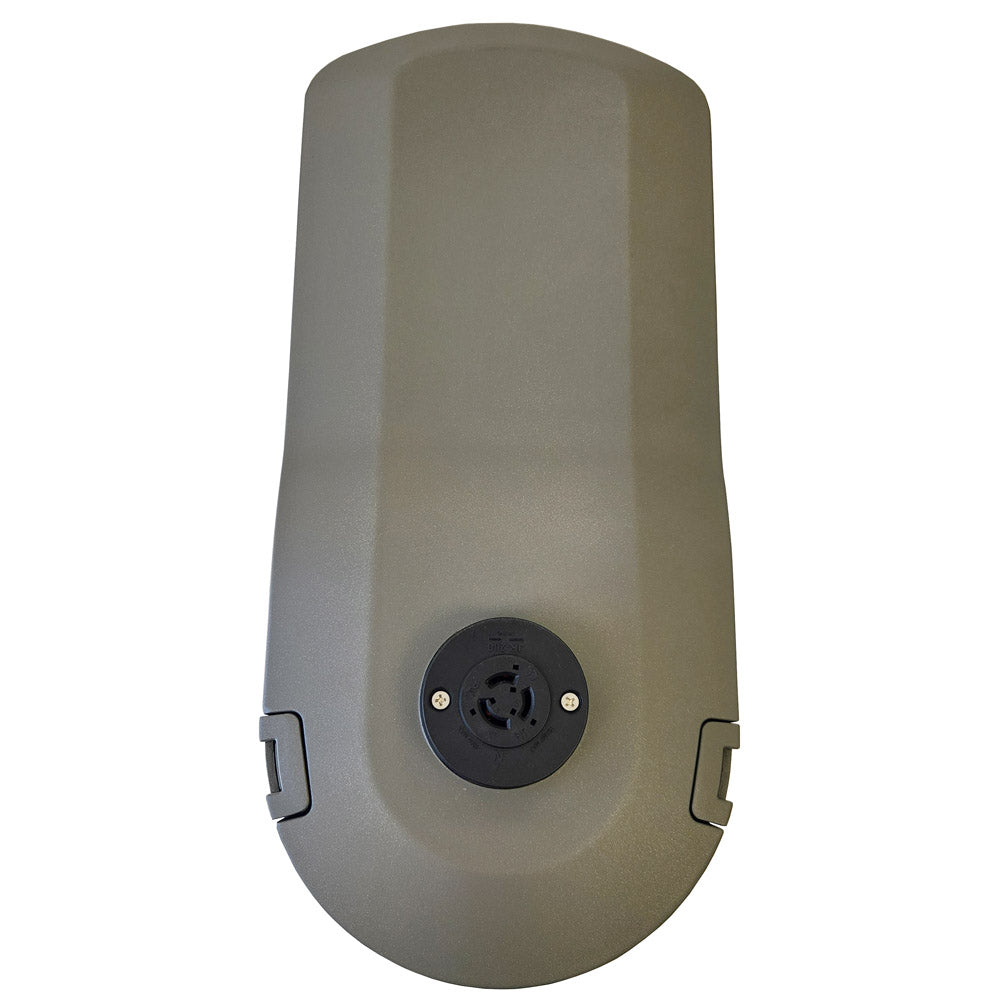

NEMA Photocell Ready

The POLARIS is supplied with a pre-installed NEMA socket, providing a convenient method of adding automatic dusk-to-dawn control.

Two product options are available:

No Photocell – supplied for conventional switching or external control
With Photocell – supplied complete with a compatible NEMA photocell

The photocell can automatically switch the lantern according to ambient daylight conditions without requiring a separate remote photocell installation.

Tool-Free Maintenance Access

The POLARIS incorporates a hinged housing design to provide straightforward access to the internal components.

Tool-free access can simplify electrical connection, maintenance and future component inspection without requiring the complete lantern to be removed from the column.

Robust Exterior Construction

The POLARIS is manufactured using die-cast marine-grade aluminium with a tempered glass optical cover.

An IP66 ingress-protection rating provides protection against dust and powerful water jets, while the IK08 impact rating provides additional resistance against accidental impact.

The lantern is designed to operate in ambient temperatures from -20°C to +50°C, making it suitable for permanent exterior installations throughout the UK. Wydels Electrical Wholesalers

96,000-Hour Rated Life

The POLARIS range has a published rated life of 96,000 hours, providing a long-life LED solution for commercial and industrial exterior lighting installations.

Combined with its selectable wattage and CCT functions, this allows lighting requirements to be adjusted in the future without necessarily replacing the complete luminaire. Wydels Electrical Wholesalers

Typical Applications

Commercial car parks
Industrial estates
Access roads
Private roads
Storage and distribution sites
Commercial premises
Service roads
Pathways
Building perimeters
Security lighting
Schools and leisure facilities
General street and area lighting
Suitable for all lighting-column installations

POLARIS LED Street Lantern Technical Specification:

Specification	POLARIS I	POLARIS II
Selectable Power	20W / 40W / 60W	80W / 100W
Lumens @ 4000K	3,300 / 6,000 / 9,100 lm	11,500 / 15,000 lm
Published Efficacy	Approx. 150lm/W	Approx. 150lm/W
Colour Temperature	3000K / 4000K / 5000K	3000K / 4000K / 5000K
Beam Distribution	60° × 120° Asymmetric	60° × 120° Asymmetric
CRI	>70	>70
Input Voltage	220–240V, 50/60Hz	220–240V, 50/60Hz
IP Rating	IP66	IP66
IK Rating	IK08	IK08
Material	Die-Cast Aluminium / Tempered Glass	Die-Cast Aluminium / Tempered Glass
NEMA Socket	Pre-Installed	Pre-Installed
Photocell Option	With or Without NEMA Photocell	With or Without NEMA Photocell
Column Entry	76mm	76mm
Dimensions	200 × 583mm	240 × 627mm
Weight	3.6kg	4.5kg
Operating Temperature	-20°C to +50°C	-20°C to +50°C
Rated Life	96,000 Hours	96,000 Hours
Standard Finish	Grey	Grey
Optional Finish	Black	Black
Warranty	7 Years	7 Years

Complete Your Street Lighting System

The POLARIS LED Street Lantern can be combined with our lighting columns to create a complete commercial exterior lighting system.

For installations requiring additional outreach or multiple lanterns from the same column, our lighting-column brackets include single, twin, triple and quad outreach-arm configurations.

Our lighting-column accessories include fuse cut-outs, door keys and other components required to complete the installation.

Alternatively, browse our lighting-column packages for ready-made combinations of columns, brackets and LED lighting.

Free Professional Lighting Design

Wydels provides a free professional lighting-design service to help determine suitable POLARIS wattages, quantities, mounting heights and lighting-column positions for your project.

Our lighting calculations can assess average illumination, minimum illumination, maximum illumination, uniformity and the overall distribution of light across the proposed area.

Send us your site drawing, dimensions or proposed lighting-column positions and our team can prepare a professional lighting layout, performance calculations and detailed supply quotation.

For technical assistance, call Wydels on 01536 264064 or email enquiries@wydels.co.uk.

Frequently Asked Questions

What wattages are available in the POLARIS LED Street Lantern range?

The POLARIS range is available in two wattage-selectable body sizes. POLARIS I can be set to 20W, 40W or 60W, while POLARIS II can be set to 80W or 100W.

Is the wattage adjustable?

Yes. The POLARIS is wattage selectable, allowing the output to be adjusted to suit the mounting height, site layout and required lighting level without changing the complete lantern.

What colour temperatures are available?

Each POLARIS LED Street Lantern is CCT selectable between 3000K warm white, 4000K cool white and 5000K daylight white.

What lumen output does the POLARIS provide?

At 4000K, the POLARIS I provides approximately 3,300 lumens at 20W, 6,000 lumens at 40W and 9,100 lumens at 60W.

The POLARIS II provides approximately 11,500 lumens at 80W and 15,000 lumens at 100W.

What type of beam distribution does the POLARIS use?

The POLARIS uses a 60° × 120° asymmetric light distribution designed to project useful light forward from the mounting position.

This makes it particularly suitable for lighting columns positioned along roads, car parks, access routes and perimeter locations.

Does the POLARIS include a photocell?

The POLARIS is supplied with a pre-installed NEMA socket and can be ordered either with or without a compatible NEMA photocell.

Where a photocell is fitted, the lantern can operate automatically from dusk to dawn according to ambient daylight levels.

Can the POLARIS be used without a photocell?

Yes. The lantern can be supplied without a photocell for conventional switching or external control. A shorting cap can be used on the NEMA socket where automatic photocell operation is not required.

What size column is the POLARIS designed to fit?

The POLARIS is designed for mounting onto a 76mm column or suitable spigot arrangement.

Is the POLARIS easy to maintain?

Yes. The POLARIS incorporates a hinged housing design with tool-free access, helping simplify electrical connection, inspection and routine maintenance.

What IP and impact ratings does the POLARIS have?

The POLARIS is rated IP66 for ingress protection and IK08 for impact resistance, making it suitable for permanent exterior lighting installations.

What is the rated lifetime of the POLARIS LED Street Lantern?

The POLARIS range has a published rated life of approximately 96,000 hours.

What applications is the POLARIS suitable for?

The POLARIS is suitable for commercial car parks, access roads, industrial estates, private roads, storage and distribution sites, pathways, schools, commercial premises and general street and area lighting.

What finishes are available?

The POLARIS is supplied in grey as standard, with a black finish also available where required.

What warranty is supplied with the POLARIS LED Street Lantern?

The POLARIS LED Street Lantern range is supplied with a 7-year warranty.

Can Wydels provide a lighting design using POLARIS LED Street Lanterns?

Yes. Wydels provides a free professional lighting-design service to help determine suitable wattages, quantities, mounting heights and lighting-column positions for your project.

Lighting calculations can assess average illumination, minimum and maximum illumination, uniformity and overall light distribution across car parks, roads, pathways and other exterior areas.
