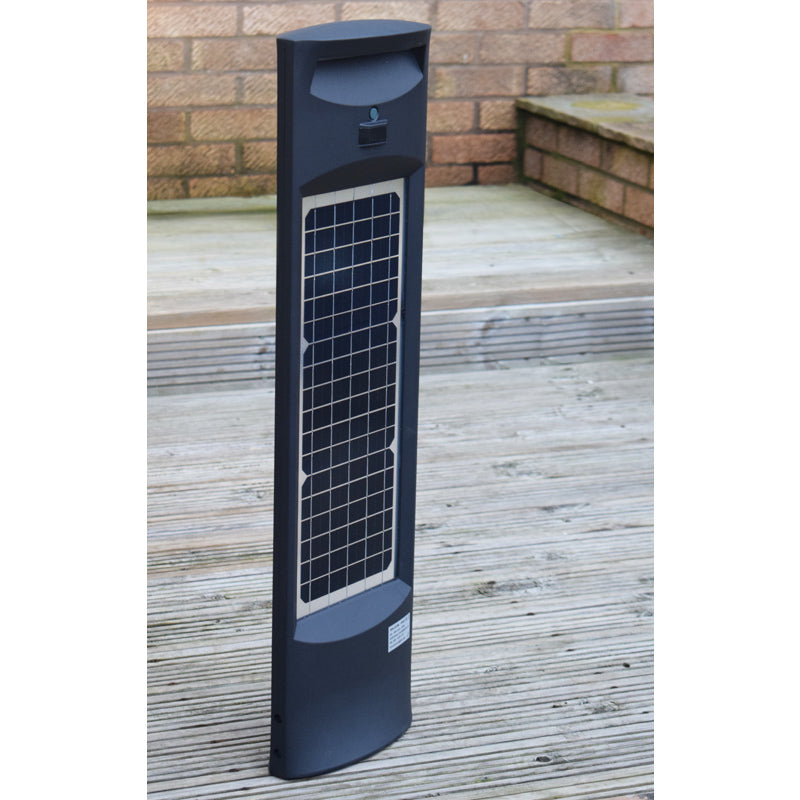

20W LED Solar Bollard Black 2,200 Lumens Day Light IP65
20W LED Solar Bollard Black 2,200 Lumens Day Light IP65
Introduction:
The Solar Bollard is a very unique design. Not only is it super slimline, it is also a two sided path light, designed to illuminate in both directions independantly. From a sideways view, the path light is almost non-existant. Each side has a control button which selects the mode for the corresponding side of 10W LEDs (1100 lumens per side – total 2200 lm). A PIR is also located on both sides which are triggered individually and illuminate the LEDs on the relevant side. A combination of the following modes can be selected on each side: PIR mode, constant low level (dusk to dawn) and off.
Multiple mounting options via the internal mounting base included, or use J-Bolts to root mount into wet concrete.
Modes of Operation:
- PIR Mode – Full brightness when PIR triggered, then returns to 15% brightness after 20 seconds of no movement
- Constant Light (dusk to dawn) – Constant illumination at 50% brightness
- Off
Applications:
- Car Parks & Yards
- Outdoor Residential Areas
- Walkways & Passages
- Suburban Areas
Specification:
| Lumens | 2,200lm |
| Power Consumption | 20W |
| Lumens per Watt | 110lm/W |
| Hour Rating | 30,000 Hours |
| Warranty | 3 Years |
| Colour Temperature | 6000K - Day Light |
| Voltage | 6.4V Lithium Battery - 6Ah |
| Charging Time | 10 hrs Sunlight Charging |
| Working Time | 4 nights in PIR Mode |
| llumination area | 6m both sides |
| Instant on | Less than one second |
| Product Finish | Black |
| Weight | 5Kg |
| Material | Aluminium & Glass |
| Height | 800mm |
| Width | 220mm |
| Depth | 90mm |
| IP Rating | IP65 Rated |
| Lowest Operating Temperature | -20˚c |
| Maximum Operating Temperature | 45˚c |
