14W to 24W Prisma Premium Cone LED Bollard IP65

14W to 24W PRISMA Premium Cone LED Bollard – Wattage & CCT Selectable IP65

The PRISMA Premium Cone LED Bollard is a high-quality commercial exterior bollard combining selectable wattage, selectable colour temperature and an integral photocell within a robust die-cast aluminium housing.

Designed for pathways, landscaped areas, residential developments, hospitality sites, commercial premises and public spaces, the PRISMA provides a strong combination of high light output, architectural appearance and long-term reliability.

The fitting is a single wattage-selectable luminaire with 14W, 19W and 24W settings, providing up to 3,120 lumens at an efficacy of approximately 130lm/W. Colour temperature can also be selected between 3000K, 3500K and 4000K to suit the surroundings and required night-time appearance.

An integral photocell allows automatic dusk-to-dawn operation and can be disabled where conventional switching or another external control method is preferred.

Available with either a Dome Top or Flat Top, the PRISMA provides a premium bollard-lighting solution backed by a 7-year warranty with 2 years of on-site support.

Key Features

• Single wattage-selectable luminaire with 14W / 19W / 24W settings
• Up to 3,120 lumens
• High efficiency of approximately 130lm/W
• 3000K / 3500K / 4000K CCT selectable
• CRI >80
• Integral photocell for automatic dusk-to-dawn operation
• Photocell can be disabled
• Dome Top or Flat Top versions available
• IP65 ingress protection
• Die-cast aluminium construction
• 2kV built-in surge protection
• MacAdam Step <3 for good colour consistency
• Root-mounting kit available
• Dimmable option available on request
• Emergency option available on request
• Operating temperature from -40°C to +50°C
• 50,000-hour rated lifetime
• 5.4kg weight including base
• 7-year warranty
• 2 years of on-site support
• Free professional lighting-design support available from Wydels

Wattage Selectable – 14W, 19W or 24W

The PRISMA is a single wattage-selectable bollard with three power settings, allowing the output to be configured on site without changing the complete fitting.

The available settings are:

• 14W – 1,820 lumens
• 19W – 2,470 lumens
• 24W – 3,120 lumens

Each setting provides an efficacy of approximately 130 lumens per watt.

The lower wattage settings can be particularly useful for pathways, landscaped areas and residential environments where more subtle illumination is preferred, while the 24W setting provides increased output for commercial sites, public spaces and larger amenity areas.

Being able to adjust the wattage on site also provides useful flexibility where the final lighting calculations show that maximum output is not required.

CCT Selectable – 3000K, 3500K & 4000K

The PRISMA allows the colour temperature to be selected between 3000K, 3500K and 4000K, providing greater flexibility than a conventional fixed-colour bollard.

3000K Warm White

3000K provides a warmer night-time appearance and is particularly suited to:

• Residential developments
• Hotels and hospitality areas
• Parks and landscaped spaces
• Pathways
• Rural surroundings
• Environmentally sensitive sites

3500K Neutral Warm White

3500K provides a balance between the warmth of 3000K and the clearer appearance of 4000K.

It can be a useful choice where a softer architectural appearance is required while retaining good visual clarity.

4000K Cool White

4000K provides a neutral white appearance suited to commercial environments, public spaces, car parks, retail developments and applications where greater visual clarity is preferred.

Integral Photocell

The PRISMA incorporates an integral photocell for automatic dusk-to-dawn operation.

When enabled, the bollard can automatically switch on as ambient daylight levels fall and switch off again after sunrise.

Where photocell operation is not required, the function can be disabled, allowing the bollard to operate from conventional switching, time controls or another external lighting-control system.

This makes the PRISMA particularly versatile for larger exterior lighting schemes where different control arrangements may be required across the site.

Dome Top or Flat Top Options

The PRISMA is available with a choice of two architectural head styles:

Dome Top

The Dome Top provides a softer, more traditional curved appearance and works particularly well within landscaped, residential and hospitality environments.

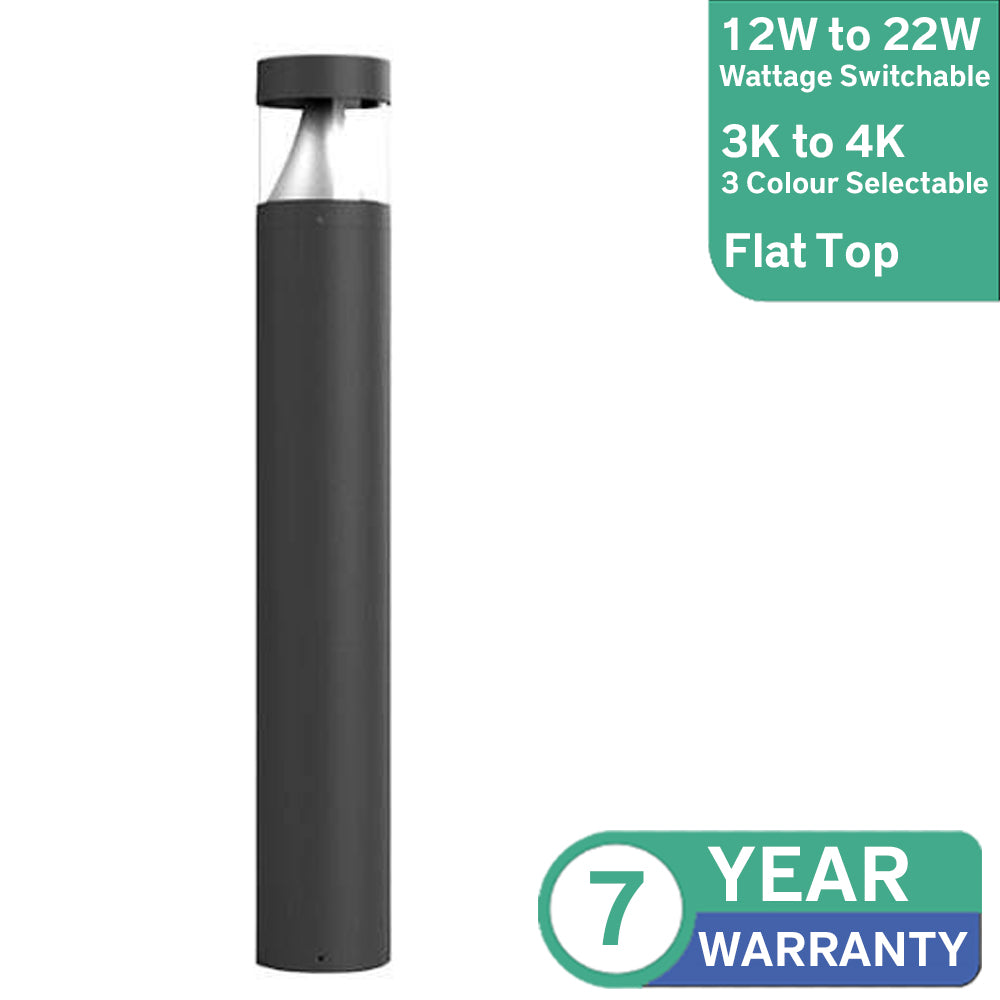

Flat Top

The Flat Top provides a cleaner, more contemporary appearance suited to modern commercial and architectural developments.

Both versions retain the same core LED performance and premium die-cast aluminium construction, allowing the appearance of the bollard to be selected around the style of the project.

Designed for Pathways & Amenity Areas

The PRISMA is particularly suited to applications where low-level pedestrian and amenity lighting is required.

Typical uses include:

• Pedestrian pathways
• Parks
• Landscaped areas
• Residential developments
• Apartment developments
• Hotels and leisure facilities
• Commercial premises
• Retail developments
• Courtyards
• Building entrances
• Public spaces
• Healthcare sites
• Schools and universities
• General amenity lighting

For larger projects, the bollard spacing and selected wattage should be considered as part of the overall lighting design to achieve appropriate illumination and uniformity.

Root-Mounting Kit Available

The PRISMA can be supplied with an optional root-mounting kit, allowing the bollard to be installed into a suitable concrete foundation where a surface-mounted installation is not preferred.

This provides additional installation flexibility for new pathways, landscaped areas and public-space projects.

The product can therefore be ordered either:

• Without Root Kit
• With Root Kit

Dimmable & Emergency Options

Dimmable and emergency versions of the PRISMA are also available on request.

This allows the bollard to be considered for projects requiring additional lighting controls or emergency-lighting functionality.

Where either option is required, the specification should be confirmed at the time of quotation.

Robust Die-Cast Aluminium Construction

The PRISMA is manufactured from die-cast aluminium and is designed for long-term commercial exterior use.

Its IP65 ingress-protection rating provides protection against dust and water jets, making it suitable for permanent outdoor installations.

The fitting is also designed to operate across a wide ambient temperature range of -40°C to +50°C.

2kV Surge Protection

The PRISMA incorporates 2kV built-in surge protection to provide additional protection against transient electrical overvoltage.

This helps protect the internal driver and LED components within permanent exterior electrical installations.

CRI >80 & MacAdam Step <3

With a colour-rendering index of CRI >80, the PRISMA provides good colour reproduction for pedestrian and architectural environments.

A published MacAdam Step of <3 also helps provide good colour consistency between multiple bollards installed across the same project.

This can be particularly important on pathways, landscaped developments and hospitality sites where numerous fittings are visible together.

50,000-Hour Rated Lifetime

The PRISMA has a published rated lifetime of approximately 50,000 hours.

Combined with its robust construction and 7-year warranty with 2 years of on-site support, the bollard provides a strong long-term option for commercial and public-space lighting projects.

PRISMA Premium Cone LED Bollard Technical Specification:

FARO or PRISMA – Which Bollard Should I Choose?

The FARO and PRISMA form part of the same premium bollard family and share several core features, including selectable wattage, selectable CCT, integral photocell, die-cast aluminium construction, root-kit options and a 7-year warranty.

The principal difference is the design of the luminaire head.

The FARO uses a louvred head, providing a more shielded architectural appearance that is particularly suited to pathways, landscaped areas and amenity spaces.

The PRISMA uses a cone-style optical design and provides a significantly higher lumen output where greater illumination is required.

This allows the most appropriate bollard to be selected according to both the visual appearance of the project and the required lighting performance.

Complete Your Bollard Lighting Scheme

The PRISMA can be used as part of a complete exterior lighting scheme alongside street lanterns, post-top luminaires and lighting columns.

For alternative bollard styles and output levels, browse our complete LED Floodlights & Street Lanterns range.

Where the PRISMA forms part of a larger car park, pathway or amenity-lighting project, Wydels can also combine bollards with column-mounted luminaires to achieve the required lighting performance across different areas of the site.

Free Professional Lighting Design

Wydels provides a free professional lighting-design service to help determine suitable PRISMA wattages, quantities and spacing for your project.

Our lighting calculations can assess average illumination, minimum and maximum illumination, uniformity and overall light distribution across pathways, landscaped areas, car parks and other exterior spaces.

Because the PRISMA incorporates selectable wattage, the output can be optimised during the lighting-design process rather than simply operating every bollard at its maximum 24W setting.

Send us your site drawing, dimensions or proposed bollard positions and our team can prepare a professional lighting layout, performance calculations and detailed supply quotation.

For technical assistance, call Wydels on 01536 264064 or email enquiries@wydels.co.uk.
