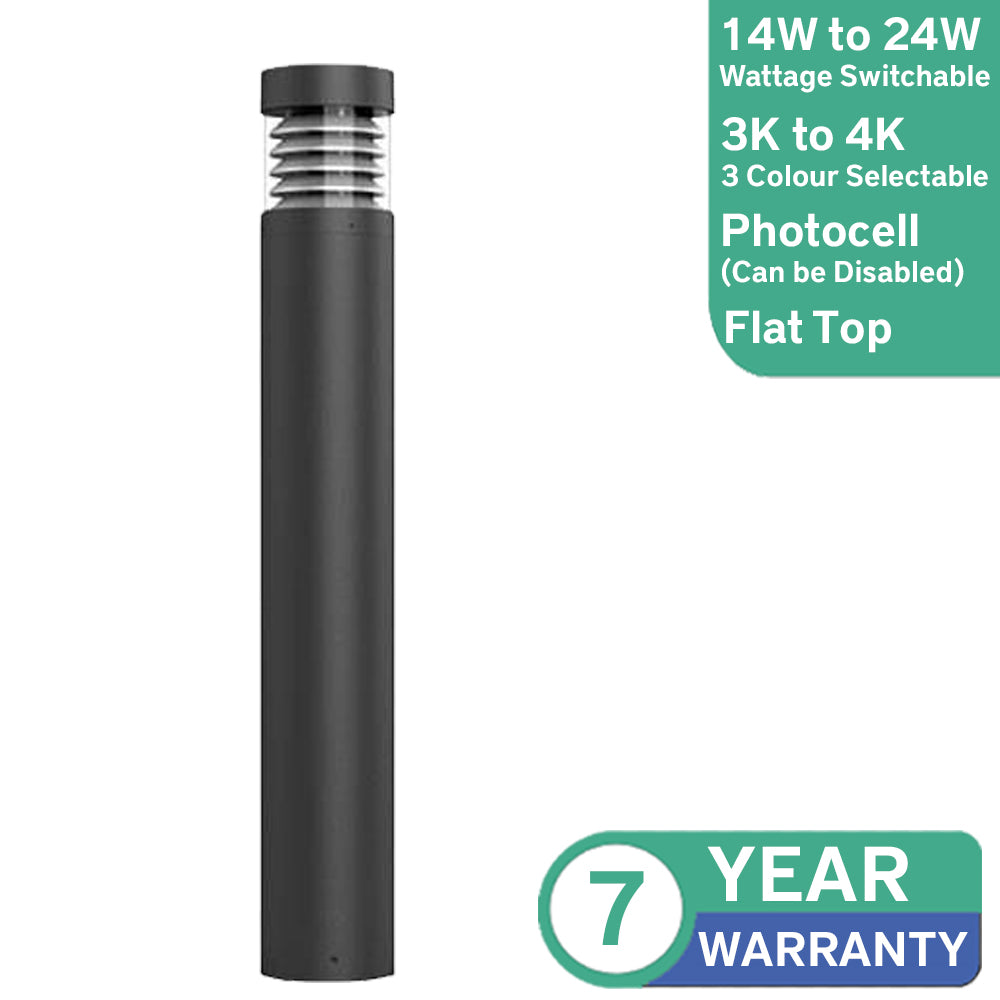

14W to 24W Faro Premium Louvre LED Bollard IP65

14W to 24W FARO Premium Louvre LED Bollard – Wattage & CCT Selectable IP65

The FARO Premium Louvre LED Bollard is a high-quality commercial exterior bollard designed for pathways, landscaped areas, residential developments, hospitality sites, commercial premises and public spaces.

Part of the same premium bollard family as the PRISMA, the FARO shares many of the same internal components and control features but uses a distinctive louvred head design, giving it a different architectural appearance and light distribution.

The FARO is a single wattage-selectable luminaire with 14W, 19W and 24W settings, providing outputs from 840 to 1,440 lumens. Colour temperature can also be selected between 3000K, 3500K and 4000K, allowing the appearance of the lighting to be tailored to the surrounding environment.

An integral photocell, robust die-cast aluminium construction, IP65 ingress protection and a 7-year warranty with 2 years of on-site support make the FARO a strong option for long-term commercial and amenity-lighting projects.

Key Features

• Single wattage-selectable luminaire with 14W / 19W / 24W settings
• Up to 1,440 lumens
• Approximately 60lm/W
• 3000K / 3500K / 4000K CCT selectable
• CRI >80
• Distinctive louvred head design
• Integral photocell for automatic dusk-to-dawn operation
• Photocell can be disabled
• Dome Top or Flat Top versions available
• IP65 ingress protection
• Die-cast aluminium construction
• 2kV built-in surge protection
• MacAdam Step <3 for good colour consistency
• Root-mounting kit available
• Dimmable option available on request
• Emergency option available on request
• Operating temperature from -40°C to +50°C
• 50,000-hour rated lifetime
• 5.4kg weight including base
• 7-year warranty
• 2 years of on-site support
• Free professional lighting-design support available from Wydels

Wattage Selectable – 14W, 19W or 24W

The FARO is a single wattage-selectable bollard with three power settings, allowing the output to be configured on site without changing the complete luminaire.

The available settings are:

• 14W – 840 lumens
• 19W – 1,140 lumens
• 24W – 1,440 lumens

The published efficacy is approximately 60 lumens per watt across the range.

The lower wattage settings are particularly suited to pathways, landscaped areas and residential surroundings where a softer level of illumination is preferred, while the 24W setting provides increased output for commercial sites and larger amenity areas.

The selectable-output design also provides flexibility during commissioning, allowing the final light level to be adjusted around the site conditions and lighting-design requirements.

Louvre-Style Light Distribution

The defining feature of the FARO is its louvred head design, which distinguishes it from the cone-style PRISMA within the same premium bollard family.

The horizontal louvres create a more shielded architectural appearance and make the FARO particularly attractive for pathways, landscaped areas, residential developments, hotels, leisure facilities and public spaces where visual appearance and low-level amenity lighting are important.

For larger projects, bollard spacing, selected wattage and surrounding surface reflectance should be considered together as part of the lighting design.

CCT Selectable – 3000K, 3500K & 4000K

The FARO allows the colour temperature to be selected between 3000K, 3500K and 4000K.

3000K Warm White

3000K provides a warmer night-time appearance and is particularly suited to:

• Residential developments
• Hotels and hospitality areas
• Parks and landscaped spaces
• Pathways
• Rural environments
• Environmentally sensitive locations

3500K Neutral Warm White

3500K provides a balance between the warmer appearance of 3000K and the clearer white light of 4000K.

This can be particularly useful for architectural and landscaped environments where a softer appearance is preferred while retaining good visual clarity.

4000K Cool White

4000K provides a neutral white appearance suited to commercial environments, public spaces, retail developments and locations where increased visual clarity is preferred.

Integral Photocell

The FARO incorporates an integral photocell for automatic dusk-to-dawn operation.

When enabled, the bollard can automatically switch on as ambient daylight levels fall and switch off again after sunrise.

Where photocell operation is not required, the function can be disabled, allowing the bollard to operate from conventional switching, timers or another external lighting-control system.

This makes the FARO particularly flexible for larger schemes where different operating arrangements may be required across the site.

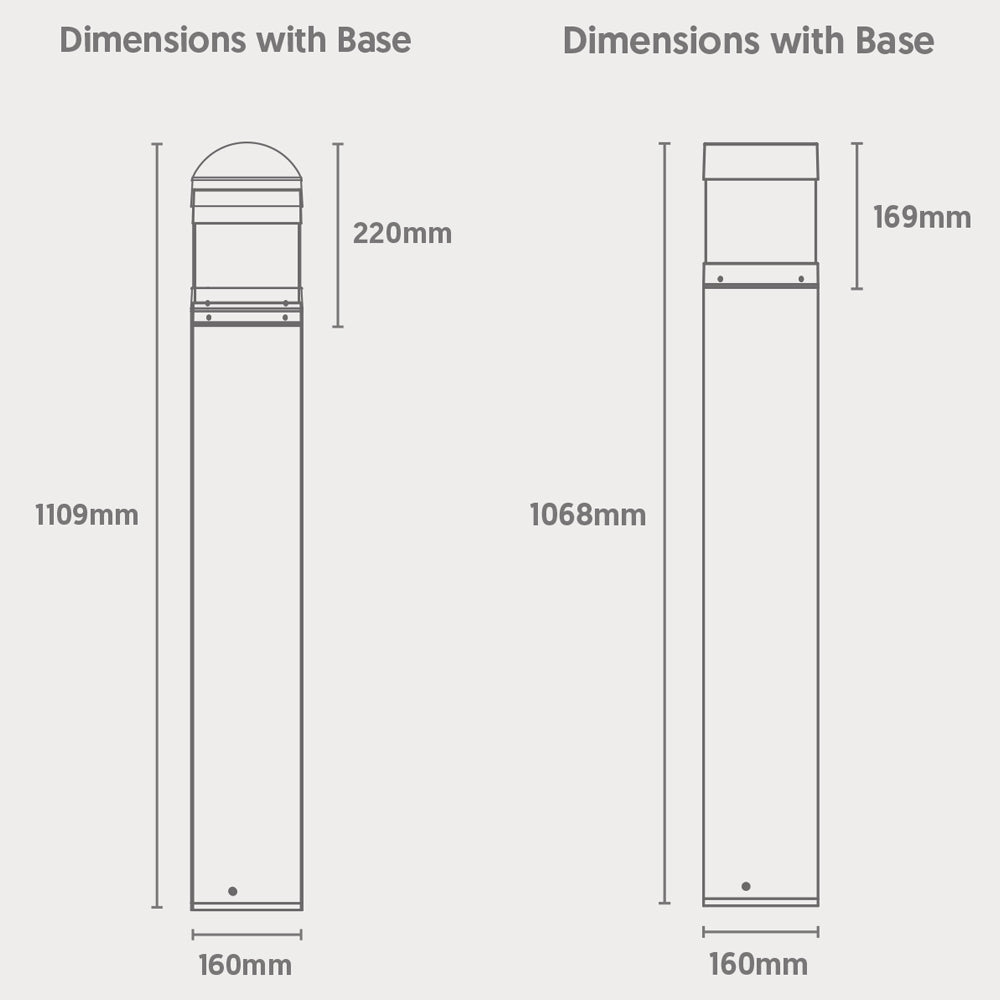

Dome Top or Flat Top Options

The FARO is available with a choice of Dome Top or Flat Top head styles.

Dome Top

The Dome Top provides a softer, more traditional curved appearance and works particularly well within landscaped, residential, hospitality and leisure environments.

Flat Top

The Flat Top provides a cleaner and more contemporary appearance suited to modern commercial, residential and public-realm developments.

Both options retain the same core LED technology, selectable wattage, selectable colour temperature and louvred construction.

Designed for Pathways & Amenity Lighting

The FARO is particularly suited to projects requiring low-level architectural and pedestrian lighting.

Typical applications include:

• Pedestrian pathways
• Parks
• Landscaped areas
• Residential developments
• Apartment developments
• Hotels and leisure facilities
• Commercial premises
• Retail developments
• Courtyards
• Building entrances
• Public spaces
• Healthcare sites
• Schools and universities
• General amenity lighting

The FARO is also included within Wydels' range of luminaires suitable for consideration within dark-sky-conscious exterior lighting schemes.

Root-Mounting Kit Available

The FARO can be supplied with an optional root-mounting kit, allowing the bollard to be installed into a suitable concrete foundation where surface mounting is not preferred.

This provides additional flexibility for new-build pathways, landscaped developments and public-space projects.

The product can therefore be ordered either:

• Without Root Kit
• With Root Kit

Dimmable & Emergency Options

Dimmable and emergency versions of the FARO are available on request.

This allows the bollard to be incorporated into projects requiring additional lighting controls or emergency-lighting functionality.

Where either option is required, the specification should be confirmed at quotation stage.

Robust Die-Cast Aluminium Construction

The FARO is manufactured from die-cast aluminium and designed for permanent commercial exterior use.

Its IP65 ingress-protection rating provides protection against dust and water jets, while the fitting is designed to operate across an ambient temperature range of -40°C to +50°C.

This makes the FARO suitable for year-round exterior installations throughout the UK.

2kV Surge Protection

The FARO incorporates 2kV built-in surge protection to provide additional protection against transient electrical overvoltage.

This helps protect the internal LED components and driver within permanent exterior electrical installations.

CRI >80 & MacAdam Step <3

With a colour-rendering index of CRI >80, the FARO provides good colour reproduction for pedestrian, landscaped and architectural environments.

A published MacAdam Step of <3 helps provide good colour consistency between multiple bollards installed across the same project.

This is particularly valuable on pathways, hotel grounds, residential developments and landscaped areas where several fittings may be visible together.

50,000-Hour Rated Lifetime

The FARO has a published rated lifetime of approximately 50,000 hours.

Combined with its robust construction and 7-year warranty with 2 years of on-site support, the bollard provides a strong long-term solution for commercial, residential and public-space lighting projects.

FARO Premium Louvre LED Bollard Technical Specification:

FARO or PRISMA – Which Bollard Should I Choose?

The FARO and PRISMA form part of the same premium bollard family and share several core features, including selectable wattage, selectable CCT, integral photocell, die-cast aluminium construction, root-kit options and a 7-year warranty.

The principal difference is the design of the luminaire head.

The FARO uses a louvred head, providing a more shielded architectural appearance that is particularly suited to pathways, landscaped areas and amenity spaces.

The PRISMA uses a cone-style optical design and provides a significantly higher lumen output where greater illumination is required.

This allows the most appropriate bollard to be selected according to both the visual appearance of the project and the required lighting performance.

Complete Your Exterior Lighting Scheme

The FARO can be incorporated into a wider exterior lighting scheme alongside post-top luminaires, street lanterns, floodlights and lighting columns.

For alternative bollard styles and higher output requirements, browse our complete LED Floodlights & Street Lanterns range.

Where the FARO is being used alongside column-mounted lighting, Wydels can design the different lighting elements together to provide suitable illumination across pathways, car parks, access routes and landscaped areas.



Free Professional Lighting Design

Wydels provides a free professional lighting-design service to help determine suitable FARO wattages, quantities and bollard spacing for your project.

Our lighting calculations can assess average illumination, minimum and maximum illumination, uniformity and overall light distribution across pathways, landscaped areas, car parks and other exterior spaces.

Because the FARO incorporates selectable wattage, the output can be optimised during the lighting-design process rather than simply operating every bollard at its maximum 24W setting.

Send us your site drawing, dimensions or proposed bollard positions and our team can prepare a professional lighting layout, performance calculations and detailed supply quotation.

For technical assistance, call Wydels on 01536 264064 or email enquiries@wydels.co.uk.
