Rutland 504 Windcharger 12V
Install a Rutland Windcharger and experience the convenience of fully charged batteries. Power that is readily available for lights, navigation equipment, laptops and other electrical appliances. Free and renewable energy from the gentlest breeze can be combined with solar panels for a balanced year round power supply.
About The 12V Rutland 504 Windcharger
The Rutland 504 is a super compact turbine that is great for using wind power for trickle charging. You can be sure that when you arrive on board your batteries will be well charged up and ready for your appliances.
What is the Rutland 504 suitable for?
- Caravans
- Motorhomes
- Boats
- Marine
- Educational Kits
Specifications
| Cut in Windspeed | 3 m/s |
| Output Voltages Available | 12V |

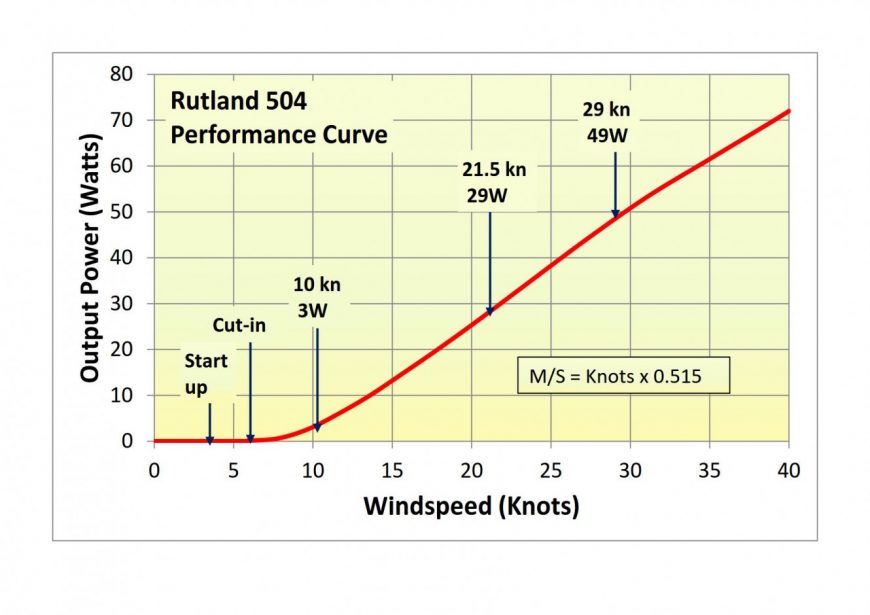

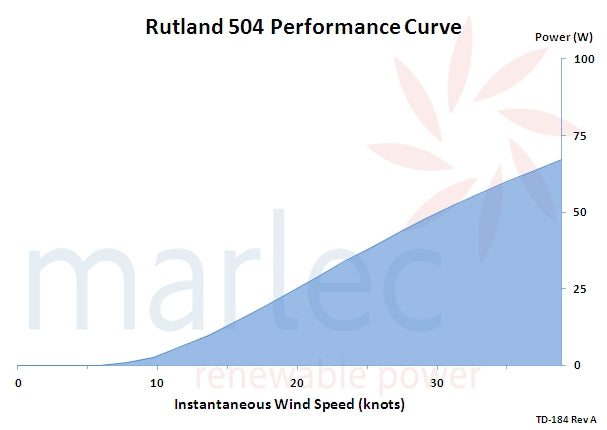

| Power / Current Ratings | |
| 5m/s 10knots | 3W (0.2A) |
| 11m/s 21knots | 29W (2.1A) |
| 15m/s 29knots | 48W (3.4A) |
| Packed Weight and Dimensions | 6kg 550x550x260mm |
| Generator Type | Low friction 3 phase, brushless |
| Yaw Rotation | Slipring for 360° free rotation. Low brush wear |
| Governing Devices | None |
| Turbine Diameter | 510mm |
| Turning Radius | 304mm |
| Weight | 3.5kg |
Materials
Marlec construct the Rutland wind turbines using a range of modern and traditional high quality materials which are designed to endure in a marine environment. They have innovated in the field by introducing light weight but robust high density nylon and glass reinforced materials that are UV stable alongside marine grade aluminium, stainless steel, sealed for life bearings and other carefully selected and precision worked materials in their UK factory.
Rutland 504 Windcharger 12V
Sale price£369.00
