Rutland 914i Windcharger 12V and 24V
Install a Rutland Windcharger and experience the convenience of fully charged batteries. Power that is readily available for lights, navigation equipment, laptops and other electrical appliances. Free and renewable energy from the gentlest breeze can be combined with solar panels for a balanced year round power supply.
About The Rutland 914i Windcharger
The Rutland 914i punches well above its size for power, rivalling the claimed outputs of larger turbines owing to it’s built-in MPPT technology. This continuously matches the turbine speed and generator to their optimum performance to deliver more ampere hours into your battery and a by-product of this optimised efficiency is a virtually silent wind turbine!
What is the Rutland 914i suitable for?
- Live Aboard Cruisers
- Coastal Sailing Yachts
- Inland Boats
- Narrow Boats

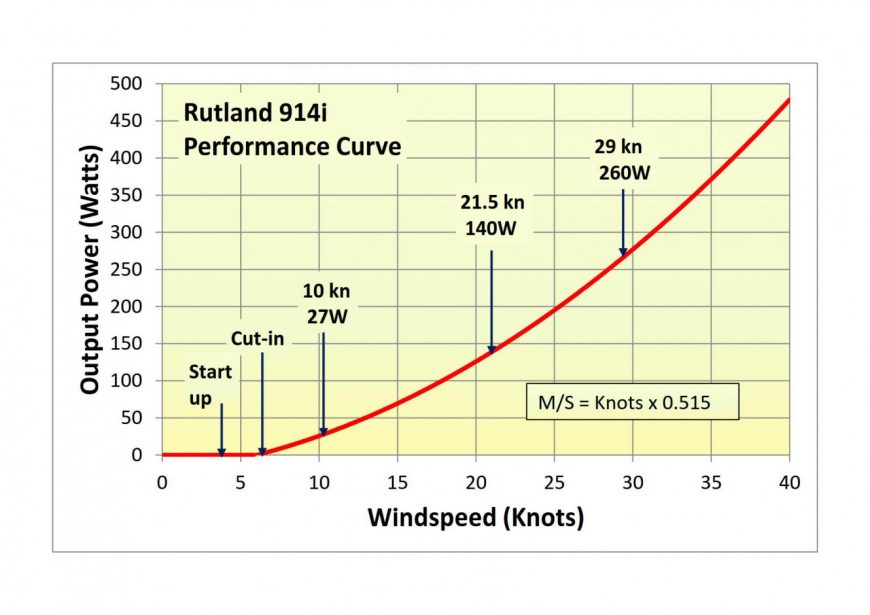

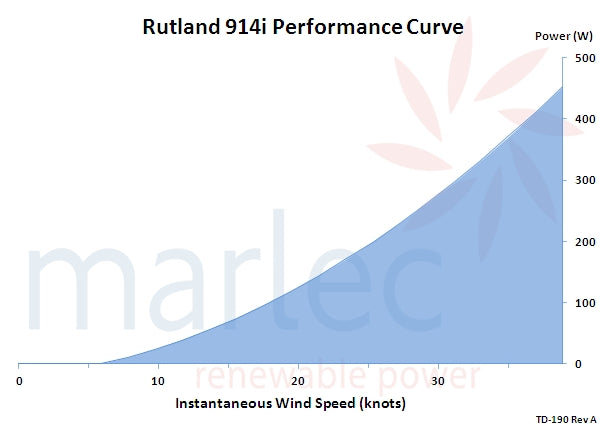

Specifications
| Cut in Windspeed | 3 m/s |
| Output Voltages Available (Nominal) | 12V | 24V |
| Power / Current Ratings | |
| 5m/s 10knots | 24W (1.7A) | 24W (0.8A) |
| 11m/s 21knots | 143W (10.3A) | 143W (5.1A) |
| 15m/s 29knots | 262W (18.9A) | 262W (9.4A) |
| Packed Weight and Dimensions | 13.1kg 370x300x450mm |
| Generator Type | Low friction 3 phase, brushless |
| Yaw Rotation | Slipring for 360° free rotation. Low brush wear |
| Governing Devices | None |
| Turbine Diameter | 910mm |
| Turning Radius | 557mm |
| Weight | 11.58kg |
Materials
Marlec construct the Rutland wind turbines using a range of modern and traditional high quality materials which are designed to endure in a marine environment. They have innovated in the field by introducing light weight but robust high density nylon and glass reinforced materials that are UV stable alongside marine grade aluminium, stainless steel, sealed for life bearings and other carefully selected and precision worked materials in their UK factory.
Rutland 914i Windcharger 12V and 24V
Sale price£695.00
