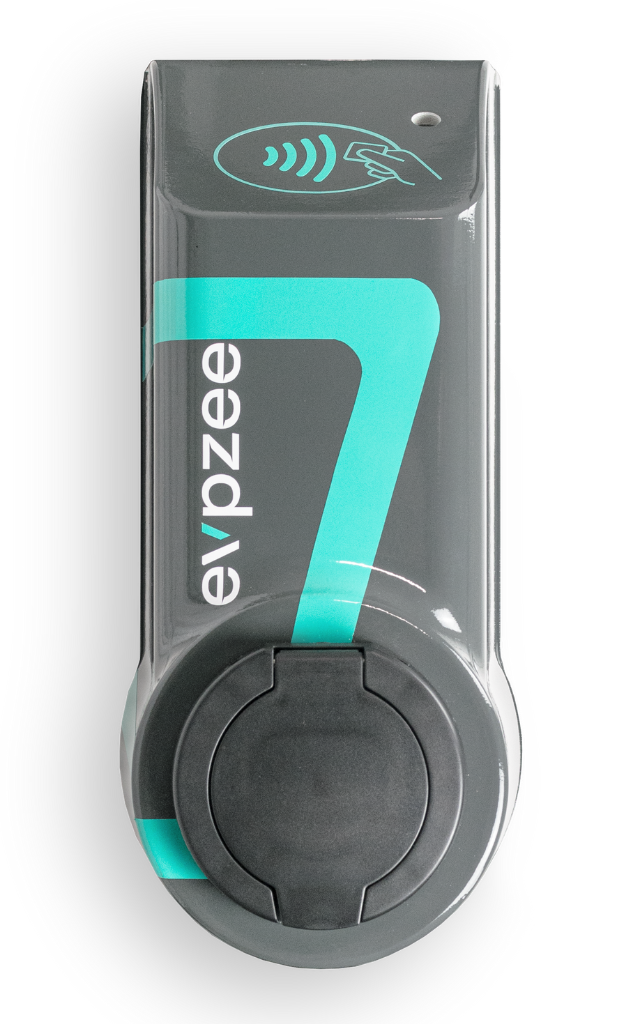

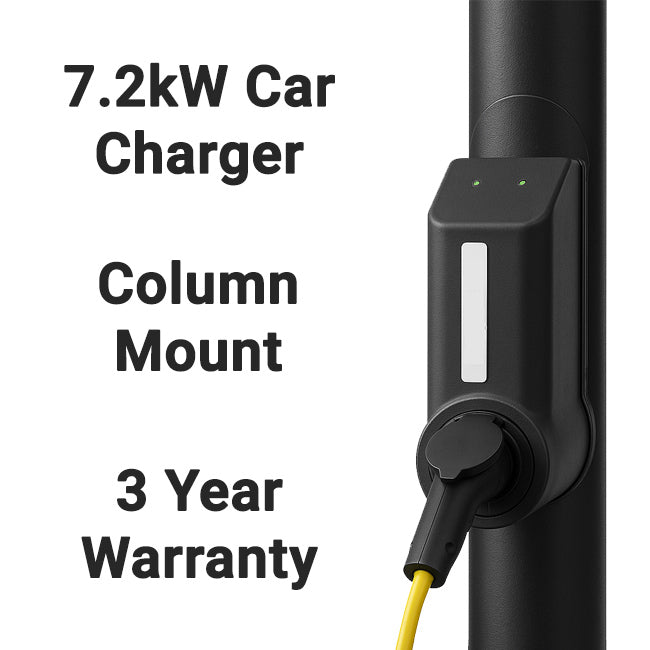

7.2kW Single-Phase On-Street EV Charger - Column Mount
7.2kW Single-Phase On-Street EV Charger - Column/Lamp Post Mount - Retrofit To Any Column

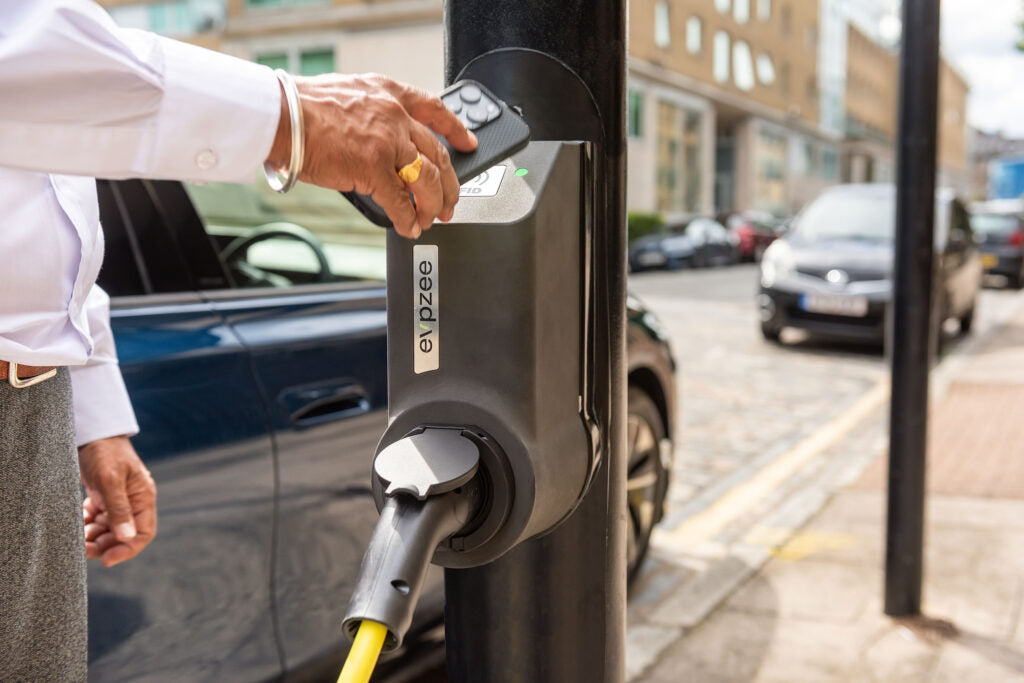

The evpzee 7.2kW car charger delivers a fast, reliable charge without needing a driveway. The charger can be retrofit onto any column/lamp post which is perfect for overnight charging right outside your house.
Key Features
- 7kW Single Phase Fast Charge
- Plug-and-play setup – no on-site opening needed
- Designed and manufactured in the UK (not just assembled)
- OCPP 1.6 compliant – future-proof and back-office agnostic
- IEC 61851-1 Mode 3 charge protocol
- Tethered or untethered 2.5mm² 3-core cable
- Compatible with all Type 2 (IEC 62196-2:2016) EVs and hybrids
- Durable and discreet: IK10, IP65
- Dimensions: 345mm (H) x 140mm (W) x 135mm (D)
- Weight: Max 4kg
- Made from 95% recycled polycarbonate — strong, sustainable, and good-looking
- Available in 3 standard colours: White, Black or Grey
- 3-year warranty (with option to extend)
Specifications
Electrical specifications
- Rated supply: 230V / 50Hz
- Max output: 1 × 32a
- Built-in pEN fault detection
- 6ma DC internal leakage fault protection (compliant with bs 7671:2018)
- Overcurrent protection
- Lockable smart socket — secure, simple access
Certification
- BS7671:2018 compliant
- UKCA marked
- OCPP 1.6 (back-office agnostic, future-ready)
- ELEXON approved
- OLEV approved (EVHs & WCs schemes)
- EMC directive 2014/30/Eu (emCD)
Software
- Interoperable with all market-leading software
- App-based: Control switch, security, usage, and energy monitoring
- Remote firmware updates – no hassle, just updates
- Inbuilt live monitoring — so you’re never caught short
Payment Methods
- Contactless (all major debit/credit cards)
- Apple pay
- RFiD
- QR code
- App
- Even phone payments
Optional Extras
- Anti-graffiti finish — because not all art is welcome
- Solar charge — sustainability, powered up
- Available in any standard RaL colour or custom wrap (subject to minimum order quantities)
Information Required For install
- Who’s your current provider?
- How’s your current infrastructure performing (up-time wise)?
- Where are the columns located – front or back of the path?
- If back of path, is a secondary feed planned (i.e. to a bollard or pillar)?
- Column spec:
Material
Manufacturer
Door type (wrap around or flush? Twin lock or single)? - Can you send us a photo of the door aperture?
- What’s the fuse rating in the column?
- Has a signal strength test been done?
If yes, is there a preferred network provider? - Who will be the Charge point Operator (CpO)
- What back-office will you be using?
- Who’s handling the installation?
7.2kW Single-Phase On-Street EV Charger - Column Mount
Sale price£949.50
