CCTV Fixed Square Flange Mounted Columns
CCTV Fixed Square Flange Mounted Columns

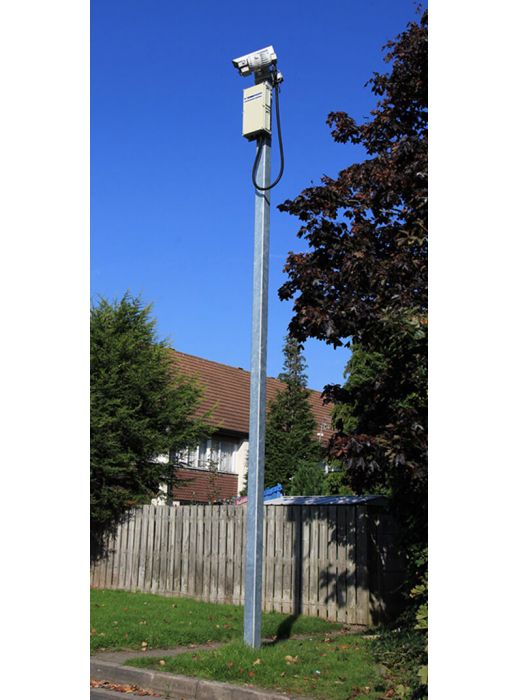

This product offers a cost-effective solution for achieving the desired camera height, with off-the-shelf options available up to 6 metres. It is designed for excellent stability, ensuring minimal camera movement, making it suitable for use in public access areas. The column is aesthetically pleasing, making it a desirable choice when appearance matters. It features a flange-mounted type FM root, with pocket-type roots available for areas with restricted foundation space. The cable management system is fully concealed, keeping installations neat and organized. Additionally, the product has a hot-dipped galvanised finish, providing maximum protection against the weather and reducing maintenance needs. Custom and bespoke versions can be tailored to meet specific requirements, and CCTV camera mounts are available to complement the system.
**LEAD TIME IS 1 TO 2 WEEKS TO MOST UK POSTCODES. COLLECTION MAY BE POSSIBLE, CONTACT US TO FIND OUT MORE INFORMATION**
We can also offer other column types such as hinged, cabinet based columns and many more. Contact us for more information. Other heights are also available but not kept in stock. Lead time for these requests is around 3 to 5 weeks.
Key Features & Benefits:
✅ Robust, Future-Proof Build
Hot-dipped galvanized to BS EN ISO 1461:2009 standards, this column resists corrosion, rust, and UV degradation, even in coastal or high-humidity settings.
✅ Seamless Customisation
Customise the column to your project’s needs:
• Finishes: Standard Hot Dipped Galvanized. Any RAL colour (upon request).
✅ Manufactured to multiple standards
• Structural Steelwork: BS EN 10210-1:1994, BS EN 10210-2:1997
• General Steelwork: BS1449:1991, BS1387:1985, BS EN 10025:1993
• Welding Procedures: Comply with BS EN 1011-2:2001
• Fasteners: Grade 8.8 BS3692:2001, BS4190:2001, DIN93 I, DIN934
• Design Wind Loading: In accordance with CP3 chapter V Pt 2 & BS 6399 Pt 2:1997
Technical Specifications:
• Standard pan and tilt fixing of 101.6 PCD.
• Inspection / jointing aperture with backboards as standard feature.
• Equipment loading of up to 25kg.
• Standard heights available from 3 to 10 metres.
• Compatible with adaptors, accessories and anticlimbs.
Customisation Options Available!
Need a specific RAL colour? Contact our Sales Team at 01536 264064 or enquiries@wydels.co.uk to discuss bespoke solutions.
